Bosch 0986041230 Alternator

SKU: 0986041230
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£205.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
CALIFORNIA T4 Camper (7DJ, 7DK, 70J)
Description Cylinder Capacity Horse Power Year
2.5 2461 CCM 110 HP 05/1998 - 04/2002
LT Mk II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)
Description Cylinder Capacity Horse Power Year
2.5 SDI 2461 CCM 75 HP 09/1996 - 07/2006
2.5 TDI 2461 CCM 102 HP 06/1996 - 08/1999
2.5 TDI 2461 CCM 90 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 109 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 83 HP 05/2001 - 07/2006
2.5 TDI 2461 CCM 95 HP 05/2001 - 07/2006
LT Mk II Bus (2DB, 2DE, 2DK)
Description Cylinder Capacity Horse Power Year
2.5 SDI 2461 CCM 75 HP 07/1996 - 07/2006
2.5 TDI 2461 CCM 102 HP 05/1996 - 08/1999
2.5 TDI 2461 CCM 90 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 109 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 83 HP 05/2001 - 07/2006
2.5 TDI 2461 CCM 95 HP 05/2001 - 07/2006
LT Mk II Van (2DA, 2DD, 2DH)
Description Cylinder Capacity Horse Power Year
2.5 SDI 2461 CCM 75 HP 09/1996 - 07/2006
2.5 TDI 2461 CCM 102 HP 05/1996 - 08/1999
2.5 TDI 2461 CCM 90 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 109 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 83 HP 05/2001 - 07/2006
2.5 TDI 2461 CCM 95 HP 05/2001 - 07/2006
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 05/1998 - 04/2003
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI 2461 CCM 88 HP 12/1998 - 04/2003
2.5 TDI 2461 CCM 151 HP 09/2000 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.5 2461 CCM 110 HP 09/1990 - 06/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 01/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 07/1996 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI 2461 CCM 151 HP 05/1998 - 04/2003

The Bosch 0986041230 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL61 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

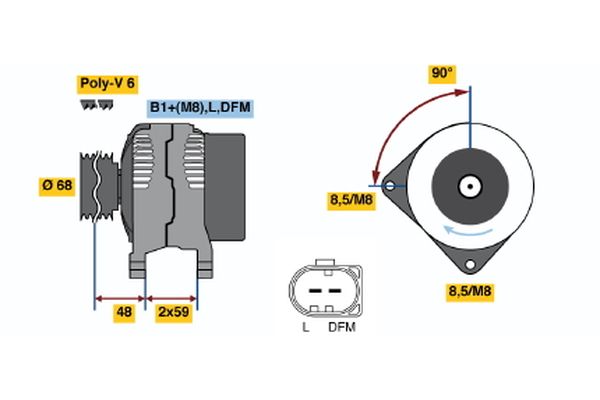

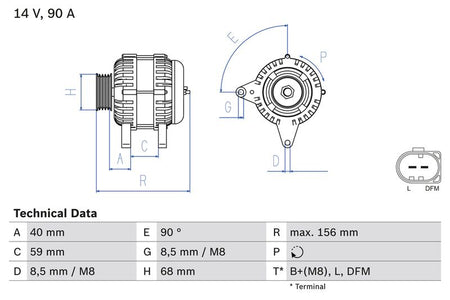

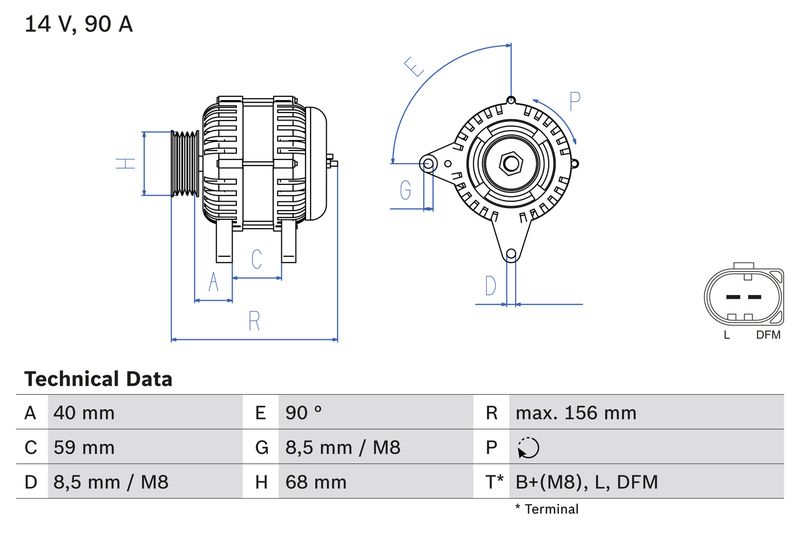

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 90
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 39.6
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 68
Clamp : B1+(M8),DFM,L

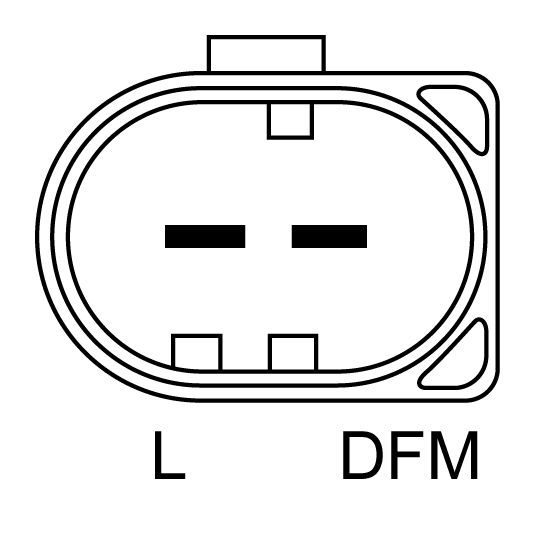

Plug Type ID : PL61
Length [mm] : 156
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 0986041230
  • Barcode 3165141242577
  • VW : 074 903 025 K 074 903 025 KX
  • APEC : AAL1477
  • BORG & BECK : BBA2176
  • BOSCH : 0 124 325 004
  • BOSCH : 0 124 325 250
  • BOSCH : 1 986 A00 780
  • Carwood Group : BREF0320986041230
  • Carwood Group : BREF032112043
  • Carwood Group : BREF0321986A00780
  • FEBI BILSTEIN : 101545
  • HELLA : 8EL 012 428-071
  • LUCAS : LRA01710
  • MAHLE : MG 291
  • NAPA : NAL1477
  • VALEO : 437513
  • VALEO : 439529
  • WAI : 22710N
  • WAI : A132.247
  • BOSCH : 4123
