BOSCH

Bosch 0986042680 Alternator

SKU: 0986042680

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£174.08 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI

CARISMA Saloon (DA_)

Description	Cylinder Capacity	Horse Power	Year
1.3 16V	1299 CCM	82 HP	09/2000 - 10/2004
1.3	1298 CCM	75 HP	09/2000 - 10/2004

SPACE STAR MPV (DG_A)

Description	Cylinder Capacity	Horse Power	Year
1.3 16V (DG1A)	1299 CCM	86 HP	06/1998 - 12/2004
1.3 16V (DG1A)	1299 CCM	83 HP	12/1998 - 12/2004
1.3 16V (DG1A)	1299 CCM	82 HP	09/2000 - 12/2004
1.6 16V (DG3A)	1584 CCM	98 HP	01/2001 - 12/2004

The Bosch 0986042680 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 165 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

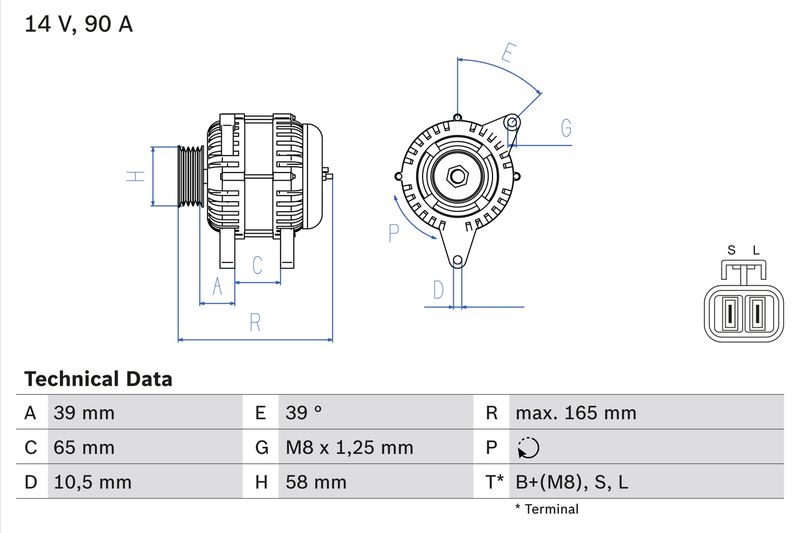

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 90

Fastening Type : Double Pivot Lever

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 38.5

Rotation Direction : Clockwise rotation

Pulleys : with multi-belt pulley

Number of grooves : 5

Belt Pulley Ø [mm] : 57.5

Length [mm] : 165

Recommended additional repairs : V-Belt/V-ribbed Belt

Construction Year to : 12.2003

Bosch 0986042680 Alternator
