Bosch 0986043091 Alternator - 1
Bosch 0986043091 Alternator - 2
Bosch 0986043091 Alternator - 1
Bosch 0986043091 Alternator - 2
BOSCH

Bosch 0986043091 Alternator

SKU: 0986043091
Your selected vehicle
Out of stock
Out of Stock
£180.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
ESPACE Mk III (JE0_)
Description Cylinder Capacity Horse Power Year
1.9 dTi (JE0M) 1870 CCM 98 HP 02/1999 - 10/2002
LAGUNA I (B56_, 556_)
Description Cylinder Capacity Horse Power Year
1.9 dTi (B56J) 1870 CCM 98 HP 10/1997 - 03/2001
LAGUNA I Estate (K56_)
Description Cylinder Capacity Horse Power Year
1.9 dTi (K56J) 1870 CCM 98 HP 10/1997 - 03/2001
MEGANE I (BA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 D Eco (BA0A, BA0U, BA0R) 1870 CCM 64 HP 01/1996 - 08/2003
1.9 dTi (BA08, BA0N) 1870 CCM 98 HP 03/1997 - 02/2001
1.9 dCi (BA05, BA1F) 1870 CCM 102 HP 02/2001 - 08/2003
1.9 dTi (BA1U) 1870 CCM 80 HP 02/2001 - 08/2003
MEGANE I Hatchback Van (SA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dCi 1870 CCM 80 HP 10/2000 - 07/2003
MEGANE I Coach (DA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 dTi (DA0N) 1870 CCM 98 HP 03/1997 - 02/2001
1.9 dCi (DA05, DA1F) 1870 CCM 102 HP 02/2001 - 08/2003
1.9 DCi 1870 CCM 105 HP 03/1999 - 09/2000
MEGANE I Classic (LA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 D (LA0A, LA0U, LA0R) 1870 CCM 64 HP 09/1996 - 08/2003
1.9 dTi (LA08, LA0N, LA0K) 1870 CCM 98 HP 03/1997 - 02/2001
1.9 dCi (LA05, LA1F) 1870 CCM 102 HP 02/2001 - 08/2003
1.9 dTi (LA1U) 1870 CCM 80 HP 02/2001 - 08/2003
MEGANE Scénic (JA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 D (JA0J) 1870 CCM 64 HP 03/1997 - 09/1999
MEGANE I Grandtour (KA0/1_)
Description Cylinder Capacity Horse Power Year
1.9 D (KA0J, KA0R) 1870 CCM 64 HP 04/1999 - 08/2003
1.9 dTi (KA0N) 1870 CCM 98 HP 03/1999 - 02/2001
1.9 dCi (KA05, KA1F) 1870 CCM 102 HP 02/2001 - 08/2003
1.9 dTi (KA1U) 1870 CCM 80 HP 02/2001 - 08/2003
SCÉNIC I MPV (JA0/1_, FA0_)
Description Cylinder Capacity Horse Power Year
1.9 dCi RX4 1870 CCM 102 HP 11/2000 - 08/2003
1.9 dTi (JA0N) 1870 CCM 98 HP 09/1999 - 08/2003
1.9 dCi (JA05, JA1F) 1870 CCM 102 HP 09/1999 - 08/2003
1.9 dTi (JA1U) 1870 CCM 80 HP 02/2001 - 08/2003
1.9 dCi RX4 1870 CCM 101 HP 12/2002 - 08/2003
VOLVO
S40 I (644)
Description Cylinder Capacity Horse Power Year
1.9 TD 1870 CCM 90 HP 07/1995 - 08/1999
1.9 DI 1870 CCM 95 HP 03/1999 - 07/2000
V40 Estate (645)
Description Cylinder Capacity Horse Power Year
1.9 TD 1870 CCM 90 HP 07/1995 - 08/1999
1.9 DI 1870 CCM 95 HP 03/1999 - 07/2000

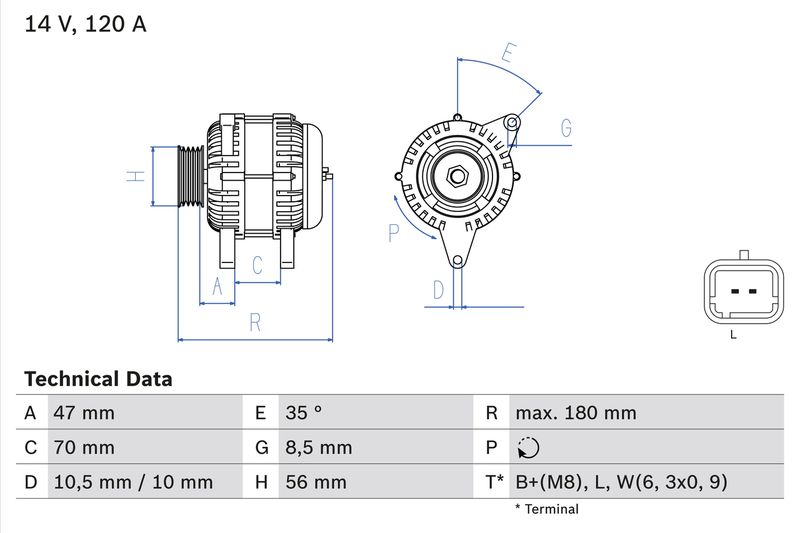

The Bosch 0986043091 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 180 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 120
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 46.5
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 56
Length [mm] : 180
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : F9Q 722
Construction Year from : 10.1999
Vehicle Equipment : for vehicles with air conditioning
Engine Code : F9Q 710
Engine Code : F9Q 717
Construction Year from : 04.1999
Construction Year to : 02.2001
  • Vendor BOSCH
  • SKU 0986043091
  • Barcode 3165143365090
  • RENAULT : 77 11 134 722 82 00 054 588 82 00 107 686
  • VOLVO : 8251648 8602556
  • BORG & BECK : BBA2434
  • BOSCH : 1 986 A01 695
  • Carwood Group : BREF0320986043091
  • Carwood Group : BREF032112458
  • Carwood Group : BREF0321986A01695
  • HELLA : 8EL 011 710-521
  • LUCAS : LRB00507
  • MAHLE : MG 89
  • VALEO : 437322
  • VALEO : 437347
  • VALEO : 439319
  • WAI : 20506N
  • BOSCH : 4309
