Bosch 0986043890 Alternator
Your selected vehicle
Regular price
£326.69
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

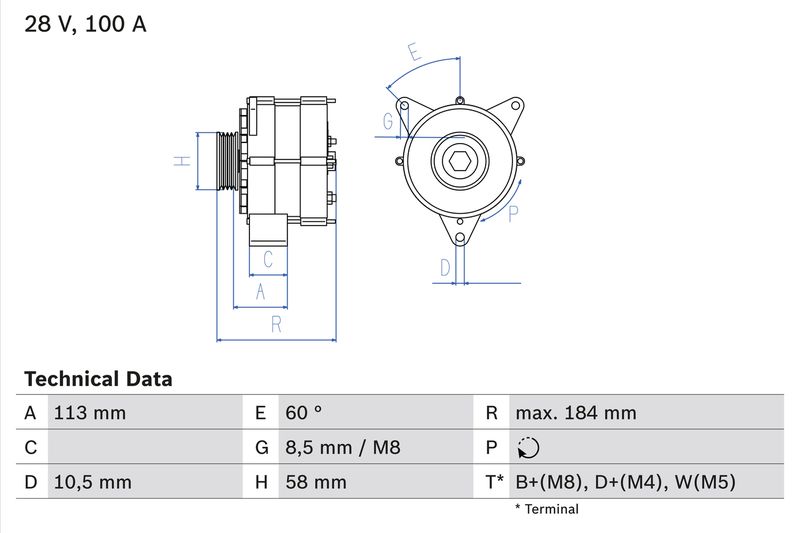

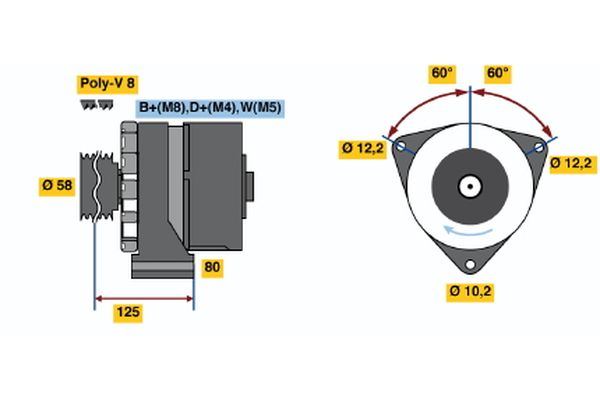

The Bosch 0986043890 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 28 V electrical rating, Single pivoted lever fastening type, excl. vacuum pump alternator type, and 210 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
28
Alternator Charging Current [A] :
100
Fastening Type :
Single pivoted lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
112.5
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
8
Belt Pulley Ø [mm] :
57.8
Clamp :
B+(M8),D+(M4),W(M5)
Length [mm] :
210
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986043890
- MERCEDES-BENZ : A 010 154 89 02 A 010 154 89 02 80 A 013 154 71 02 010 154 89 02 010 154 89 02 80 013 154 71 02
- JOHN DEERE : F0 63 075
- APEC : AOP1091
- BOSCH : 1 986 A01 059
- BOSCH : 6 033 GB3 010
- Carwood Group : BREF0320986043890
- Carwood Group : BREF032113448
- Carwood Group : BREF0321986A01059
- FEBI BILSTEIN : 48943
- HELLA : 8EL 012 584-191
- LUCAS : LRA03968
- NAPA : NOP1091
- VALEO : 202091
- VALEO : 440137
- WAI : 12388N
- WAI : 22561N
- WAI : 24-91284
- WAI : 24-91286
- BOSCH : 4389
