Bosch 0986045031 Alternator
Your selected vehicle
Regular price
£222.42
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

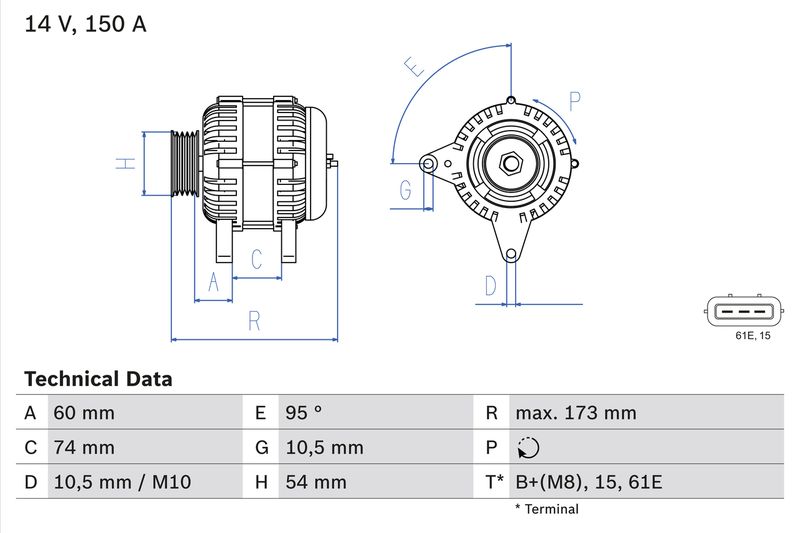

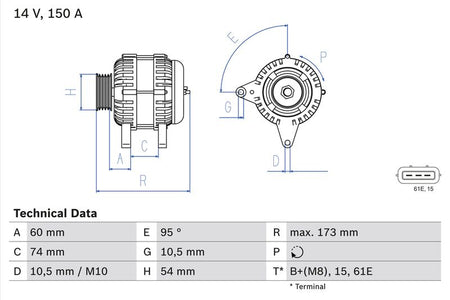

The Bosch 0986045031 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 173 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
150
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
60
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
5
Belt Pulley Ø [mm] :
53.5
Length [mm] :
173
Recommended additional repairs :
V-Belt/V-ribbed Belt
Construction Year from :
02.2003
Engine Code :
M57 D30 (306D1)
- Vendor BOSCH
- SKU 0986045031
- BMW : 12 31 2 248 296 12 31 2 248 297 12 31 7 792 092
- OPEL : 24451624 62 04 161 93171935 93175820 93175968 95 12 805
- ROVER : YLE 0000 51 YLE 5001 80
- VAUXHALL : R1530057 93171935
- LAND ROVER : YLE000051 YLE500180
- APEC : AAL1207
- BORG & BECK : BBA2491
- Carwood Group : BREF0320986045031
- Carwood Group : BREF032112468
- FEBI BILSTEIN : 192998
- HELLA : 8EL 011 711-551
- LUCAS : LRA02076
- NAPA : NAL1207
- VALEO : 437160
- VALEO : 437406
- VALEO : 439252
- WAI : 23076N
- WAI : A132.872
- BOSCH : 4503
