BOSCH

Bosch 0986045380 Alternator

SKU: 0986045380
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£250.87 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
C-CLASS (W203)
Description Cylinder Capacity Horse Power Year
C 180 Kompressor (203.046) 1796 CCM 143 HP 05/2002 - 02/2007
C 200 Kompressor (203.042) 1796 CCM 163 HP 05/2002 - 02/2007
C-CLASS T-Model (S203)
Description Cylinder Capacity Horse Power Year
C 180 Kompressor (203.246) 1796 CCM 143 HP 05/2002 - 08/2007
C 200 Kompressor (203.242) 1796 CCM 163 HP 05/2002 - 08/2007
C-CLASS Coupe (CL203)
Description Cylinder Capacity Horse Power Year
C 180 Kompressor (203.746) 1796 CCM 143 HP 05/2002 - 05/2008
C 200 Kompressor (203.742) 1796 CCM 163 HP 05/2002 - 05/2008
C 230 Kompressor (203.740) 1796 CCM 192 HP 05/2002 - 05/2008
C 200 CGI Kompressor (203.743) 1796 CCM 170 HP 03/2003 - 05/2008
CLC-CLASS (CL203)
Description Cylinder Capacity Horse Power Year
CLC 180 Kompressor (203.746) 1796 CCM 143 HP 05/2008 - 06/2011
CLC 200 Kompressor (203.741) 1796 CCM 184 HP 05/2008 - 06/2011
CLK (C209)
Description Cylinder Capacity Horse Power Year
CLK 200 Kompressor (209.342) 1796 CCM 163 HP 09/2002 - 05/2009
CLK 200 CGI (209.343) 1796 CCM 170 HP 07/2003 - 05/2009
CLK 200 Kompressor (209.341) 1796 CCM 184 HP 10/2006 - 05/2009
CLK Convertible (A209)
Description Cylinder Capacity Horse Power Year
CLK 200 Kompressor (209.442) 1796 CCM 163 HP 02/2003 - 03/2010
CLK 200 CGI (209.343) 1796 CCM 170 HP 07/2003 - 03/2010
CLK 200 Kompressor (209.441) 1796 CCM 184 HP 10/2006 - 03/2010
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 200 Kompressor (211.042) 1796 CCM 163 HP 11/2002 - 12/2008
SLK (R171)
Description Cylinder Capacity Horse Power Year
200 Kompressor (171.442) 1796 CCM 163 HP 03/2004 - 02/2011
200 Kompressor (171.445) 1796 CCM 184 HP 01/2008 - 02/2011

The Bosch 0986045380 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL114 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

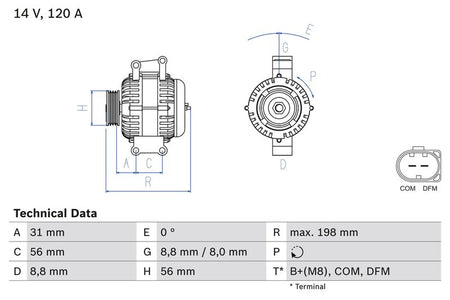

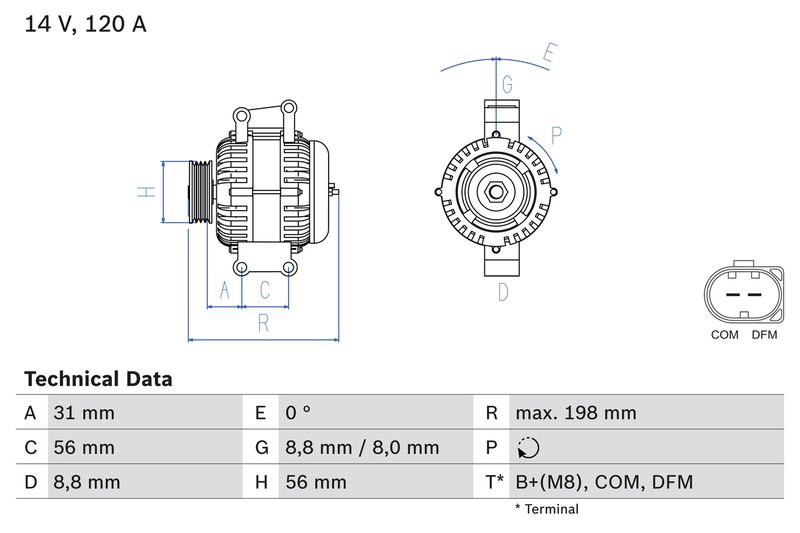

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 120
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 30.5
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 7
Belt Pulley Ø [mm] : 56

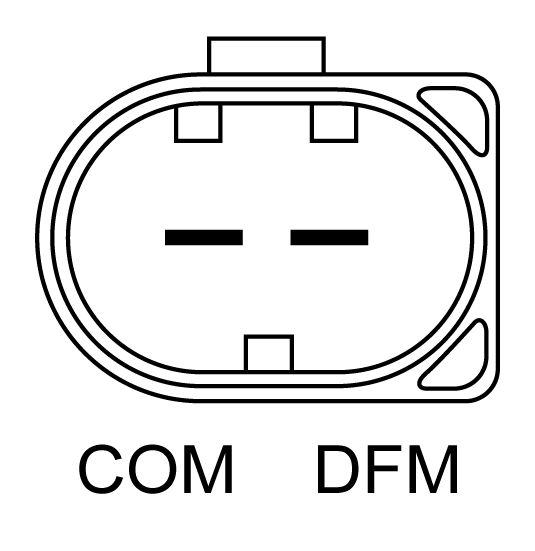

Clamp : B1+(M8),COM,DFM
Plug Type ID : PL114
Length [mm] : 198
Recommended additional repairs : V-Belt/V-ribbed Belt
Manufacturer Restriction : Bosch
Construction Year to : 04.2005
  • Vendor BOSCH
  • SKU 0986045380
  • Barcode 3165143530122
  • MERCEDES-BENZ : A 271 154 08 02 A 271 154 08 02 80 271 154 08 02 271 154 08 02 80
  • APEC : AAL1388
  • APEC : AOP1089
  • BORG & BECK : BBA2447
  • BOSCH : 1 986 A00 862
  • Carwood Group : BREF0320986045380
  • Carwood Group : BREF032116322
  • Carwood Group : BREF0321986A00862
  • DENSO : DAN3016
  • FEBI BILSTEIN : 192924
  • HELLA : 8EL 012 428-351
  • HELLA : 9XU 358 038-441
  • LUCAS : LRA02362
  • NAPA : NAL1388
  • NAPA : NOP1089
  • VALEO : 437430
  • VALEO : 439471
  • WAI : 13954N
  • WAI : 24-91282
  • WAI : A133.338
  • BOSCH : 4538
