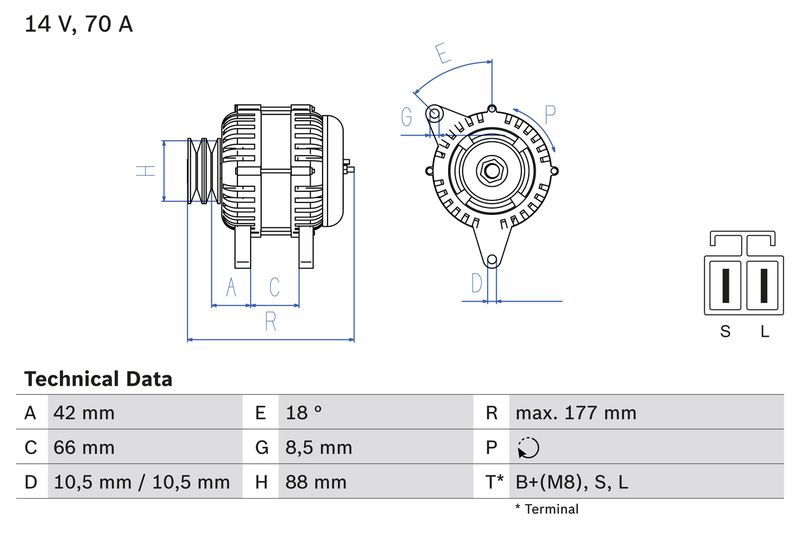

Bosch 0986045541 Alternator - 1
Bosch 0986045541 Alternator - 2
Bosch 0986045541 Alternator - 1
Bosch 0986045541 Alternator - 2
BOSCH

Bosch 0986045541 Alternator

SKU: 0986045541
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£167.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 TD 4x4 2500 CCM 109 HP 10/1999 - 06/2006
2.5 D 2499 CCM 78 HP 10/1999 - 04/2002
2.5 D 4x4 2499 CCM 78 HP 10/1999 - 04/2002
2.5 TD 2500 CCM 84 HP 04/2002 - 06/2006
2.5 TD 4x4 2500 CCM 84 HP 04/2002 - 06/2006
2.5 TDdi 2499 CCM 117 HP 04/2002 - 09/2005
2.5 TDdi 4x4 2499 CCM 117 HP 04/2002 - 09/2005
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDCi 4x4 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 4x4 2953 CCM 156 HP 05/2006 - 07/2012
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 2953 CCM 156 HP 05/2006 - 07/2012
MAZDA
B-SERIE (UF)
Description Cylinder Capacity Horse Power Year
2.5 D 4WD (UFY0) 2499 CCM 77 HP 09/1998 - 06/1999
2.5 TD (UFY0) 2499 CCM 87 HP 04/1996 - 02/1999
2.5 D 4WD (UFY0) 2499 CCM 86 HP 02/1996 - 06/1999
2.5 D 2499 CCM 86 HP 04/1996 - 01/1999
B-SERIE Platform/Chassis (UF)
Description Cylinder Capacity Horse Power Year
2.5 TD 2499 CCM 87 HP 05/1996 - 02/1999
B-SERIE (UN)
Description Cylinder Capacity Horse Power Year
2.5 D 4WD 2499 CCM 78 HP 06/1999 - 11/2006
2.5 TD 4WD 2499 CCM 109 HP 06/1999 - 07/2006
2.5 D 2499 CCM 78 HP 06/1999 - 11/2006
2.5 D 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 4WD 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 2499 CCM 83 HP 11/1999 - 12/2001
2.5 D 4WD 2499 CCM 83 HP 11/1999 - 12/2001

The Bosch 0986045541 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL07 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 70
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 42
Rotation Direction : Clockwise rotation
Pulleys : with double pulley
Number of grooves : 2
Belt Pulley Ø [mm] : 88
Clamp : B+(M8),S,L
Plug Type ID : PL07
Length [mm] : 177
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : WL-T<MD25TI(HP)>
for OE number : 3601014
for OE number : 4344538
  • Vendor BOSCH
  • SKU 0986045541
  • Barcode 3165143610251
  • FORD : XM3410300AA XM3410300BA 1449569 3601014 4344538 6M3410300AB
  • MAZDA : WL21-18-300 WL21-18-300A WL91-18-300
  • APEC : AAL1836
  • BLUE PRINT : ADM51149
  • BORG & BECK : BBA2168
  • BOSCH : 1 986 A01 609
  • Carwood Group : BREF0320986045541
  • Carwood Group : BREF032112352
  • Carwood Group : BREF0321986A01609
  • FEBI BILSTEIN : 186641
  • HELLA : 8EL 012 430-191
  • LUCAS : LRA01638
  • NAPA : NAL1836
  • WAI : 22638N
  • WAI : A130.341
  • BOSCH : 4554
