Bosch 0986045611 Alternator - 1
Bosch 0986045611 Alternator - 2
Bosch 0986045611 Alternator - 1
Bosch 0986045611 Alternator - 2
BOSCH

Bosch 0986045611 Alternator

SKU: 0986045611
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£236.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007

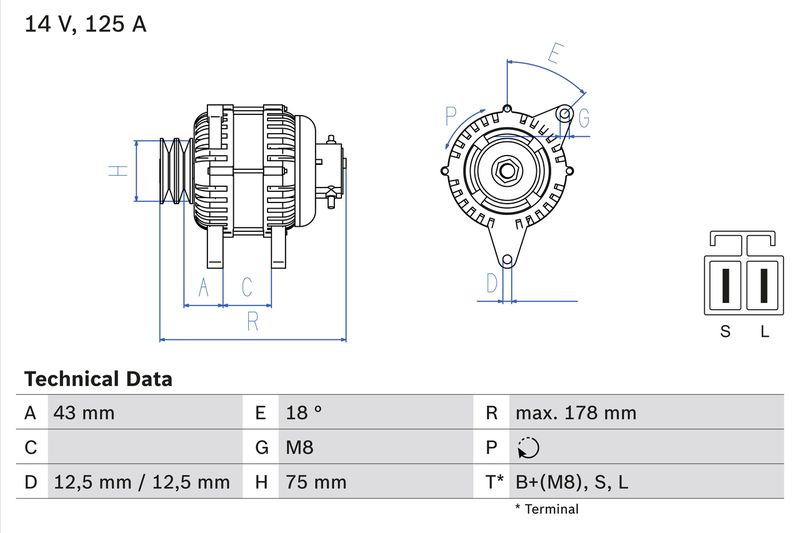

The Bosch 0986045611 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 178 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 125
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 42.5
Rotation Direction : Clockwise rotation
Pulleys : with double pulley
Number of grooves : 2
Belt Pulley Ø [mm] : 74.5
Length [mm] : 178
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year to : 08.2006
  • Vendor BOSCH
  • SKU 0986045611
  • Barcode 3165143774366
  • MITSUBISHI : ME203546
  • APEC : AAL1810
  • BORG & BECK : BBA2278
  • BOSCH : 1 986 A01 187
  • Carwood Group : BREF0320986045611
  • Carwood Group : BREF0321986A01187
  • FEBI BILSTEIN : 193051
  • HELLA : 8EL 012 428-321
  • LUCAS : LRA02306
  • NAPA : NAL1810
  • VALEO : 445149
  • WAI : 23306N
  • WAI : A130.502
  • BOSCH : 4561
