Bosch 0986045861 Alternator
Your selected vehicle
Regular price
£205.77
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986045861 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL67 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

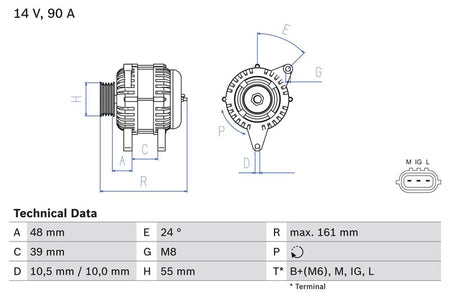

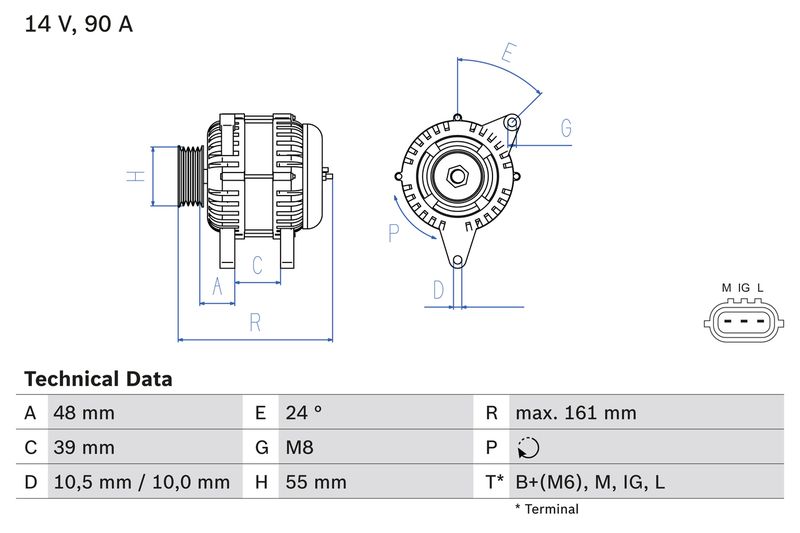

Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
90
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
48
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
4
Belt Pulley Ø [mm] :
55
Clamp :
B+(M6),M,IG,L

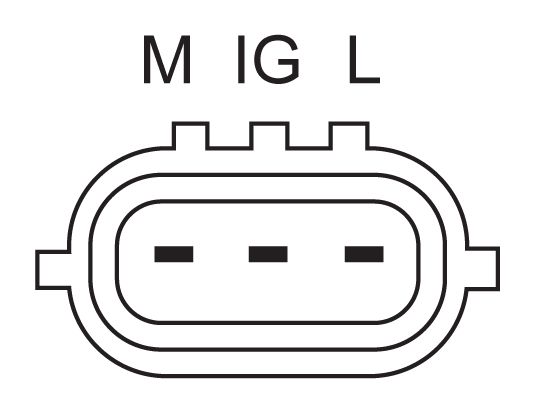

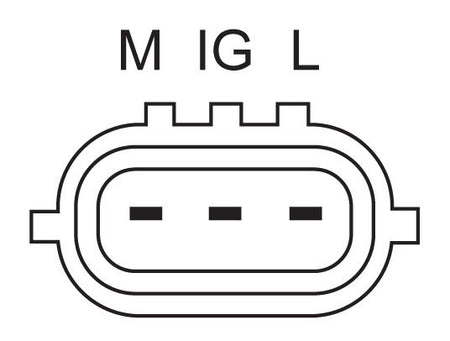

Plug Type ID :
PL67
Length [mm] :
161
Recommended additional repairs :
V-Belt/V-ribbed Belt
Construction Year to :
12.2002
- Vendor BOSCH
- SKU 0986045861
- TOYOTA : 27060 23030
- BLUE PRINT : ADT311104
- BORG & BECK : BBA2943
- Carwood Group : BREF0320986045861
- Carwood Group : BREF032114231
- DENSO : DAN961
- HELLA : 8EL 012 429-731
- LUCAS : LRA01951
- VALEO : 439995
- VALEO : 443136
- WAI : 21472N
- BOSCH : 4586
