Bosch 0986046220 Alternator
Your selected vehicle
Regular price
£240.61
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986046220 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 86 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

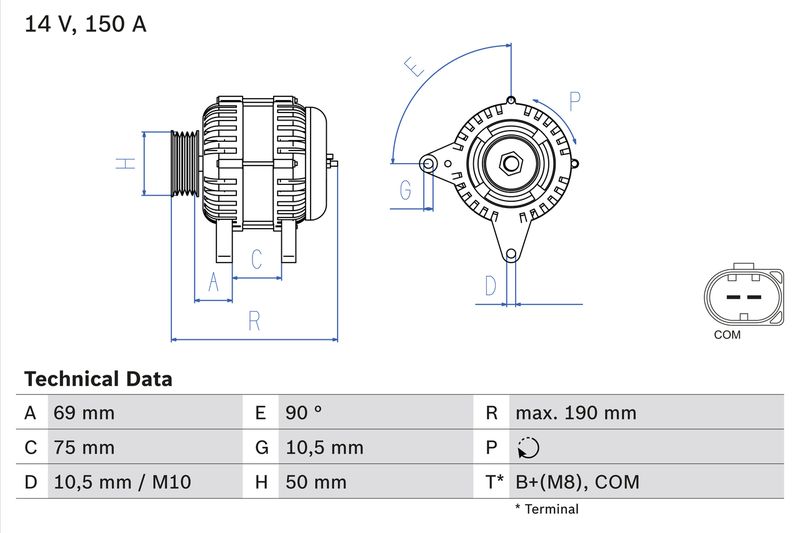

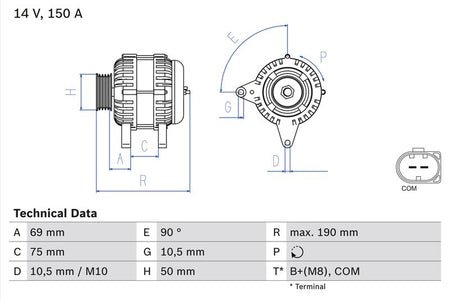

Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
150
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
69
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
50
Clamp :
B+(M8)

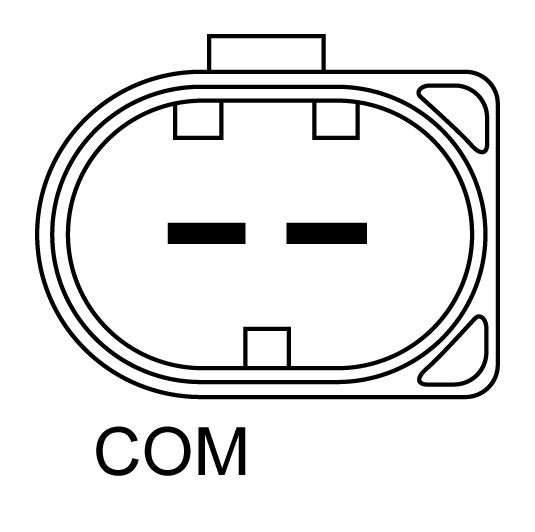

Plug Type ID :
86
Length [mm] :
190
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986046220
- BORG & BECK : BBA2867
- BOSCH : 0 124 525 026
- BOSCH : 0 124 525 523
- BOSCH : 0 986 047 400
- BOSCH : 1 986 A00 869
- BOSCH : 1 986 A00 891
- BOSCH : 1 986 A01 155
- BOSCH : F 032 113 858
- Carwood Group : BREF0320986046220
- Carwood Group : BREF0320986047400
- Carwood Group : BREF032115976
- Carwood Group : BREF0321986A00869
- Carwood Group : BREF0321986A00891
- HELLA : 8EL 011 712-141
- LUCAS : LRA02347
- VALEO : 437451
- VALEO : 439486
- WAI : 11083N
- BOSCH : 4622
