Home / Car Parts / Electrical / Alternator
Bosch 0986046300 Alternator - 1
Bosch 0986046300 Alternator - 2
Bosch 0986046300 Alternator - 1
Bosch 0986046300 Alternator - 2
BOSCH

Bosch 0986046300 Alternator

SKU: 0986046300
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£255.33 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 200 Kompressor (211.042) 1796 CCM 163 HP 11/2002 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 200 T Kompressor (211.242) 1796 CCM 163 HP 03/2003 - 07/2009
SPRINTER 3-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
216 (906.113, 906.213) 1796 CCM 156 HP 09/2008 - 12/2018
SPRINTER 3,5-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
316 (906.133, 906.135, 906.233, 906.235) 1796 CCM 156 HP 09/2008 - 12/2018
316 NGT (906.133, 906.135, 906.233, 906.235) 1796 CCM 156 HP 09/2008 - 12/2018
SPRINTER 5-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
516 NGT (906.153, 906.155, 906.253, 906.255) 1796 CCM 156 HP 09/2008 - 12/2018
516 (906.153, 906.155, 906.253, 906.255) 1796 CCM 156 HP 09/2008 - 12/2018
SPRINTER 3-t Bus (B906)
Description Cylinder Capacity Horse Power Year
216 (906.713) 1796 CCM 156 HP 03/2009 - 12/2018
SPRINTER 3-t Van (B906)
Description Cylinder Capacity Horse Power Year
216 (906.613) 1796 CCM 156 HP 09/2008 - 12/2018
SPRINTER 3,5-t Bus (B906)
Description Cylinder Capacity Horse Power Year
316 (906.733, 906.735) 1796 CCM 156 HP 09/2008 - 12/2018
SPRINTER 3,5-t Van (B906)
Description Cylinder Capacity Horse Power Year
316 (906.635, 906.633) 1796 CCM 156 HP 09/2008 - 12/2018

The Bosch 0986046300 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 201 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

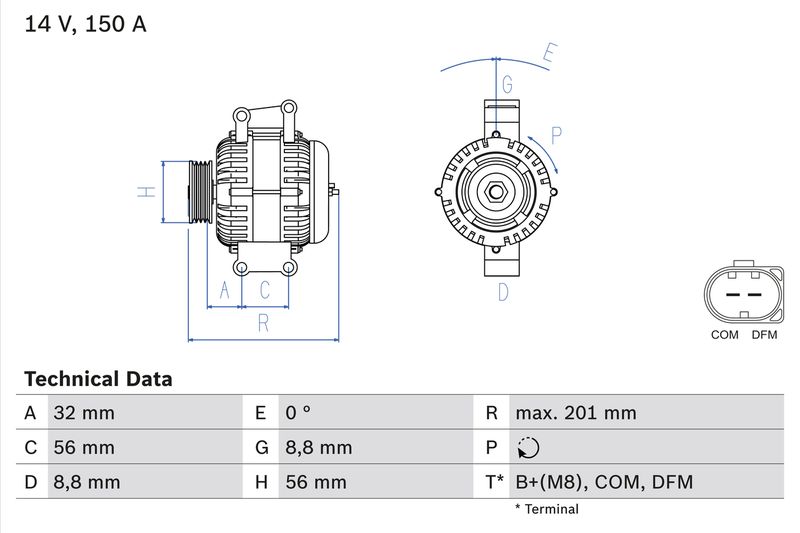

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 31.5
Rotation Direction : Clockwise rotation

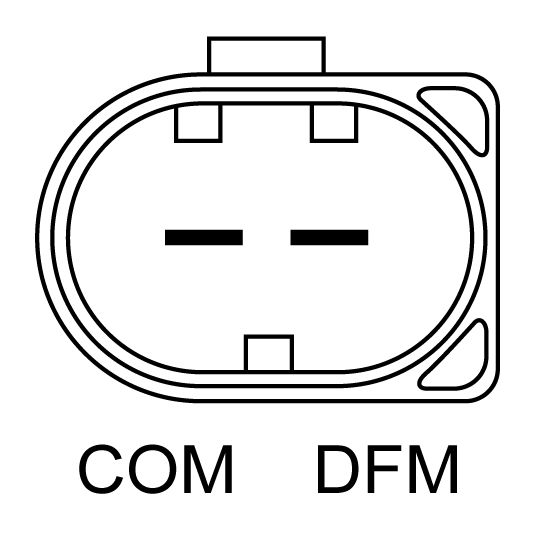

Pulleys : with freewheel belt pulley
Number of grooves : 7
Belt Pulley Ø [mm] : 56
Length [mm] : 201
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year to : 03.2006
Construction Year to : 09.2008
  • Vendor BOSCH
  • SKU 0986046300
  • Barcode 3165143619537
  • MERCEDES-BENZ : A 271 154 10 02 A 271 154 10 02 80 271 154 10 02 271 154 10 02 80
  • APEC : AOP1089
  • BORG & BECK : BBA2443
  • BOSCH : 0 124 615 068
  • BOSCH : 1 986 A00 938
  • Carwood Group : BREF0320986046300
  • Carwood Group : BREF032116463
  • Carwood Group : BREF0321986A00938
  • HELLA : 8EL 011 712-281
  • HELLA : 9XU 358 038-441
  • LUCAS : LRA02249
  • NAPA : NOP1089
  • WAI : 23285N
  • WAI : 24-91282
  • BOSCH : 4630
