Bosch 0986046340 Alternator - 1
Bosch 0986046340 Alternator - 2
Bosch 0986046340 Alternator - 3
Bosch 0986046340 Alternator - 1
Bosch 0986046340 Alternator - 2
Bosch 0986046340 Alternator - 3
BOSCH

Bosch 0986046340 Alternator

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986046340

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£288.51 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 220 CDI (211.006) 2148 CCM 150 HP 03/2002 - 12/2008
E 270 CDI (211.016) 2685 CCM 177 HP 03/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 102 HP 07/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 122 HP 07/2002 - 12/2008
E 320 CDI (211.026) 3222 CCM 204 HP 11/2002 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 220 T CDI (211.206) 2148 CCM 150 HP 03/2003 - 07/2009
E 270 T CDI (211.216) 2685 CCM 177 HP 03/2003 - 07/2009
E 320 T CDI (211.226) 3222 CCM 204 HP 03/2003 - 07/2009
E-CLASS Platform/Chassis (VF211)
Description Cylinder Capacity Horse Power Year
E 220 CDI (211.606) 2148 CCM 150 HP 10/2003 - 07/2006
E 270 CDI (211.616) 2685 CCM 177 HP 10/2003 - 07/2005
S-CLASS (W220, V220)
Description Cylinder Capacity Horse Power Year
S 320 CDI (220.025, 220.125) 3222 CCM 204 HP 09/2002 - 08/2005

The Bosch 0986046340 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL103 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

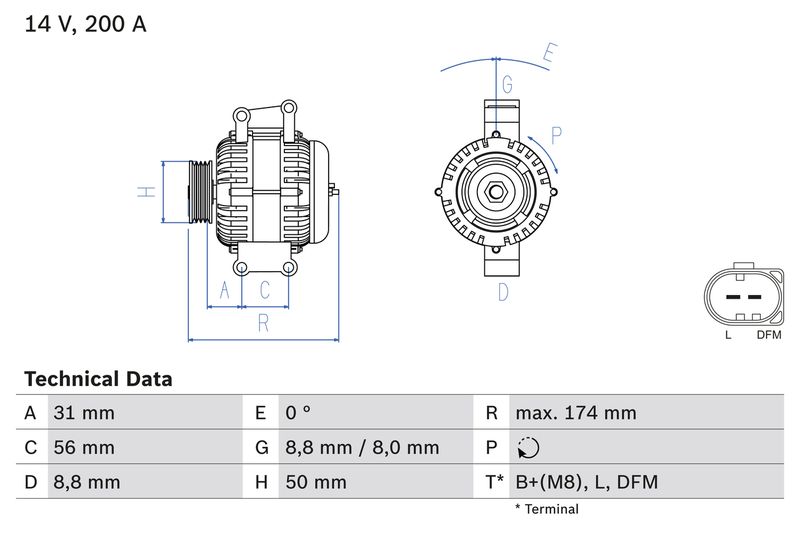

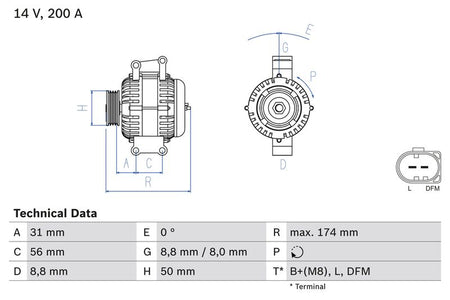

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 200
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 31.4
Rotation Direction : Clockwise rotation

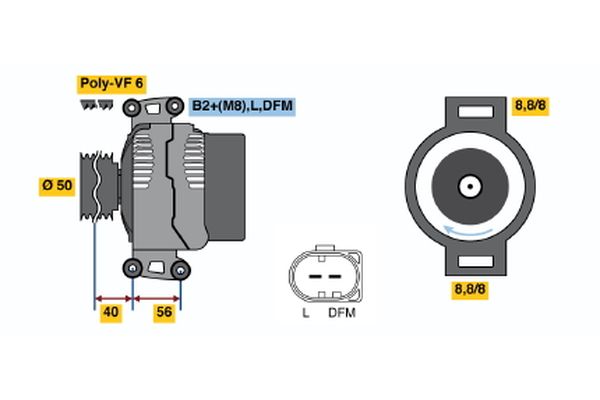

Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 50
Clamp : B2+(M8)
Clamp : L
Clamp : DFM

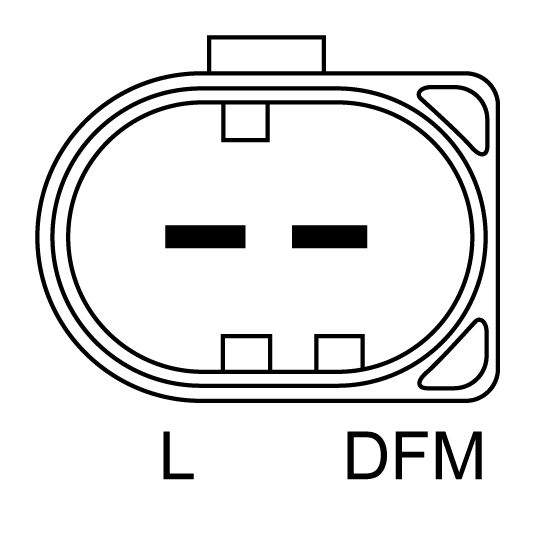

Plug Type ID : PL103
Length [mm] : 174
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year to : 12.2006
  • Vendor BOSCH
  • SKU 0986046340
  • Barcode 3165143619582
  • MERCEDES-BENZ : A 011 154 98 02 A 011 154 98 02 80 A 012 154 98 02 A 012 154 98 02 80 011 154 98 02 011 154 98 02 80 012 154 98 02 012 154 98 02 80
  • APEC : AAL1339
  • BORG & BECK : BBA2484
  • BOSCH : 1 986 A00 541
  • BOSCH : 1 986 A00 950
  • Carwood Group : BREF0320986046340
  • Carwood Group : BREF032113944
  • Carwood Group : BREF0321986A00950
  • FEBI BILSTEIN : 101533
  • HELLA : 8EL 012 426-081
  • LUCAS : LRA02250
  • NAPA : NAL1339
  • WAI : 23269N
  • WAI : A133.311
  • BOSCH : 4634
