BOSCH

Bosch 0986047220 Alternator

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986047220

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£217.49 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

The Bosch 0986047220 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL103 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

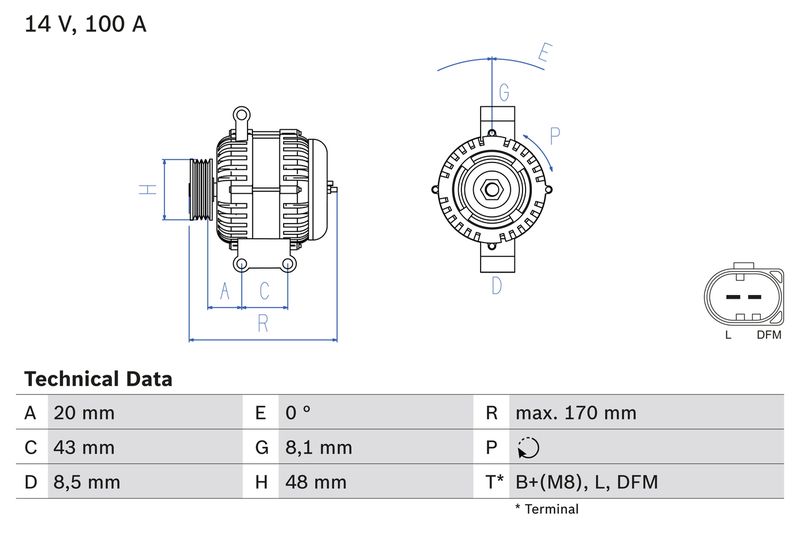

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 100

Fastening Type : Direct fastening

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 20.1

Rotation Direction : Clockwise rotation

Pulleys : with multi-belt pulley

Number of grooves : 6

Belt Pulley Ø [mm] : 48

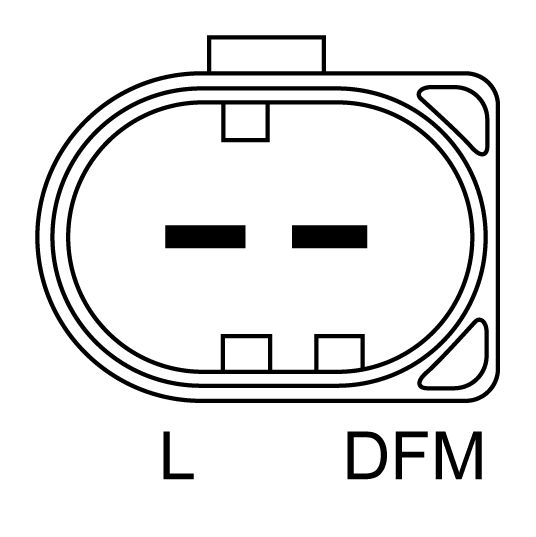

Clamp : L

Clamp : DFM
