BOSCH

Bosch 0986047240 Alternator

SKU: 0986047240
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£194.37 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
116 i 1596 CCM 115 HP 06/2004 - 06/2011
118 i 1995 CCM 129 HP 07/2004 - 02/2007
118 i 1995 CCM 136 HP 10/2006 - 06/2011
120 i 1995 CCM 150 HP 06/2004 - 02/2007
120 i 1995 CCM 156 HP 03/2007 - 06/2011
1 (E81)
Description Cylinder Capacity Horse Power Year
116 i 1596 CCM 115 HP 09/2007 - 12/2011
120 i 1995 CCM 156 HP 03/2007 - 12/2011
1 Coupe (E82)
Description Cylinder Capacity Horse Power Year
120 i 1995 CCM 156 HP 09/2009 - 10/2013
1 Convertible (E88)
Description Cylinder Capacity Horse Power Year
120 i 1995 CCM 156 HP 03/2008 - 12/2013
118 i 1995 CCM 136 HP 09/2008 - 12/2013
3 (E46)
Description Cylinder Capacity Horse Power Year
318 i 1995 CCM 143 HP 09/2001 - 02/2005
3 Coupe (E46)
Description Cylinder Capacity Horse Power Year
318 Ci 1995 CCM 143 HP 09/2001 - 02/2004
318 Ci 1995 CCM 150 HP 03/2004 - 05/2006
3 Touring (E46)
Description Cylinder Capacity Horse Power Year
318 i 1995 CCM 143 HP 09/2001 - 07/2005
3 Convertible (E46)
Description Cylinder Capacity Horse Power Year
318 Ci 1995 CCM 143 HP 09/2001 - 12/2007
318 Ci 1995 CCM 150 HP 03/2004 - 08/2006
318 Ci 1995 CCM 136 HP 12/2000 - 08/2006
3 Compact (E46)
Description Cylinder Capacity Horse Power Year
318 ti 1995 CCM 143 HP 03/2001 - 12/2004
318 ti 1995 CCM 136 HP 03/2001 - 12/2004
3 (E90)
Description Cylinder Capacity Horse Power Year
320 i 1995 CCM 150 HP 12/2004 - 08/2007
318 i 1995 CCM 129 HP 09/2005 - 08/2007
320 si 1997 CCM 173 HP 09/2005 - 08/2006
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
320 i 1995 CCM 150 HP 09/2005 - 06/2012
318 i 1995 CCM 129 HP 01/2006 - 08/2007
X1 (E84)
Description Cylinder Capacity Horse Power Year
sDrive 18 i 1995 CCM 136 HP 03/2010 - 06/2015
sDrive 18 i 1995 CCM 150 HP 03/2010 - 06/2015
X3 (E83)
Description Cylinder Capacity Horse Power Year
2.0 i 1995 CCM 150 HP 07/2005 - 08/2008
xDrive 20 i 1995 CCM 150 HP 09/2008 - 08/2011
Z4 Roadster (E85)
Description Cylinder Capacity Horse Power Year
2.0 i 1995 CCM 150 HP 03/2005 - 02/2009

The Bosch 0986047240 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 86 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

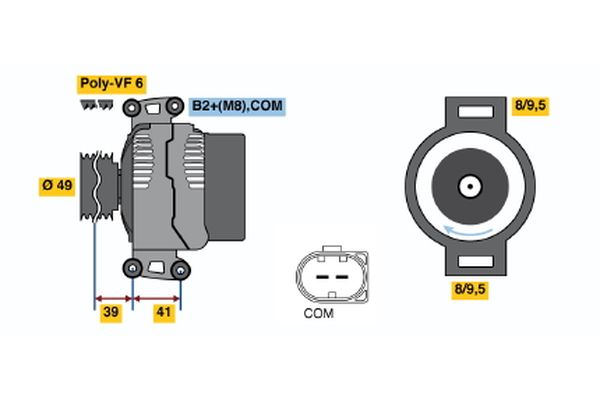

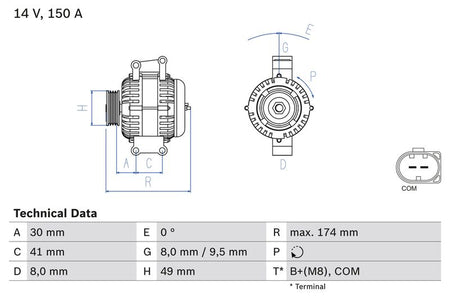

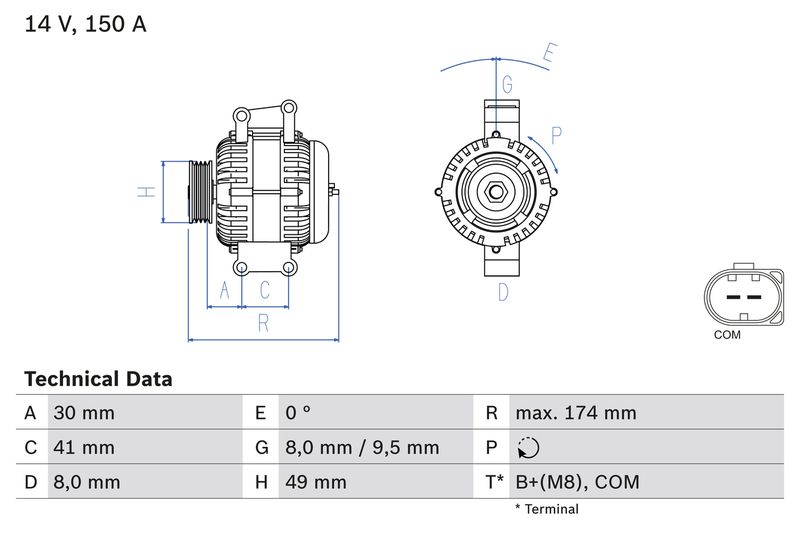

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 30
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 49
Clamp : B+(M8)

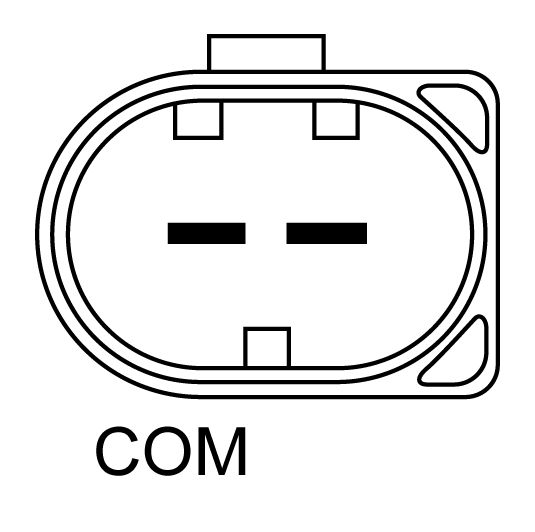

Plug Type ID : 86
Length [mm] : 195
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 0986047240
  • Barcode 3165144046042
  • BMW : 12 31 7 521 385 12 31 7 522 962 12 31 7 532 965 12 31 7 532 966 12 31 7 532 969 12 31 7 533 270
  • STEYR : 7532969
  • APEC : AAL1644
  • BORG & BECK : BBA2046
  • BORG & BECK : BBA2184
  • BOSCH : 0 124 525 561
  • BOSCH : 1 986 A00 909
  • BOSCH : F 032 113 871
  • Carwood Group : BREF0320986047240
  • Carwood Group : BREF032113871
  • Carwood Group : BREF032115867
  • Carwood Group : BREF0321986A00909
  • DENSO : DAN3006
  • FEBI BILSTEIN : 193428
  • FEBI BILSTEIN : 31743
  • HELLA : 8EL 012 428-741
  • HELLA : 9XU 358 038-411
  • LUCAS : LRA02336
  • NAPA : NAL1091
  • NAPA : NAL1644
  • VALEO : 437435
  • VALEO : 439476
  • WAI : 23254N
  • WAI : A131.775
  • BOSCH : 4724
