BOSCH

Bosch 0986047380 Alternator

SKU: 0986047380
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£228.59 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
S60 I (384)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 140 HP 07/2000 - 04/2010
2.4 2435 CCM 170 HP 11/2000 - 04/2010
D5 2401 CCM 163 HP 01/2001 - 04/2010
2.0 T 1984 CCM 180 HP 07/2000 - 04/2010
2.4 Bifuel (CNG) 2435 CCM 140 HP 07/2001 - 04/2010
R 2,5 T AWD 2521 CCM 300 HP 01/2003 - 04/2010
2.4 D 2401 CCM 130 HP 05/2001 - 04/2010
2.5 T 2521 CCM 210 HP 01/2003 - 04/2010
2.5 T AWD 2521 CCM 210 HP 07/2002 - 04/2010
T5 2401 CCM 260 HP 04/2004 - 04/2010
D5 2401 CCM 185 HP 03/2005 - 04/2010
2.4 D 2400 CCM 126 HP 03/2005 - 04/2010
S80 I (184)
Description Cylinder Capacity Horse Power Year
2.0 T 1984 CCM 180 HP 12/1999 - 07/2006
2.4 Bifuel (CNG) 2435 CCM 140 HP 09/2001 - 07/2006
3.0 2922 CCM 196 HP 06/2001 - 07/2006
T6 2922 CCM 272 HP 06/2001 - 07/2006
V70 Mk II (285)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 140 HP 03/2000 - 08/2007
2.4 2435 CCM 170 HP 03/2000 - 08/2007
D5 2401 CCM 163 HP 01/2001 - 12/2008
2.4 Bifuel (CNG) 2435 CCM 140 HP 09/2001 - 08/2007
2.0 T 1984 CCM 180 HP 11/1999 - 08/2007
2.4 D 2401 CCM 131 HP 07/2001 - 08/2007
R 2,5 T AWD 2521 CCM 300 HP 03/2003 - 08/2007
2.5 T AWD 2521 CCM 209 HP 07/2002 - 08/2007
D5 AWD 2401 CCM 163 HP 07/2002 - 08/2007
2.5 T 2521 CCM 209 HP 09/2002 - 10/2007
T5 2401 CCM 260 HP 04/2004 - 08/2007
XC70 I Cross Country (295)
Description Cylinder Capacity Horse Power Year
D5 XC AWD 2401 CCM 163 HP 09/2002 - 08/2007
2.5 T XC AWD 2521 CCM 209 HP 09/2002 - 10/2007
D5 AWD 2401 CCM 185 HP 12/2005 - 08/2007
XC90 I (275)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 200 HP 01/2011 - 12/2014
2.5 T AWD 2521 CCM 209 HP 10/2002 - 09/2014
T6 AWD 2922 CCM 272 HP 10/2002 - 12/2006
D5 AWD 2401 CCM 163 HP 10/2002 - 12/2006
D5 AWD 2401 CCM 185 HP 04/2005 - 12/2012
D3 / D5 2400 CCM 163 HP 04/2009 - 12/2014
D5 AWD 2400 CCM 163 HP 10/2007 - 12/2010

The Bosch 0986047380 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Foot-mounted fastening type, excl. vacuum pump alternator type, and 149 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

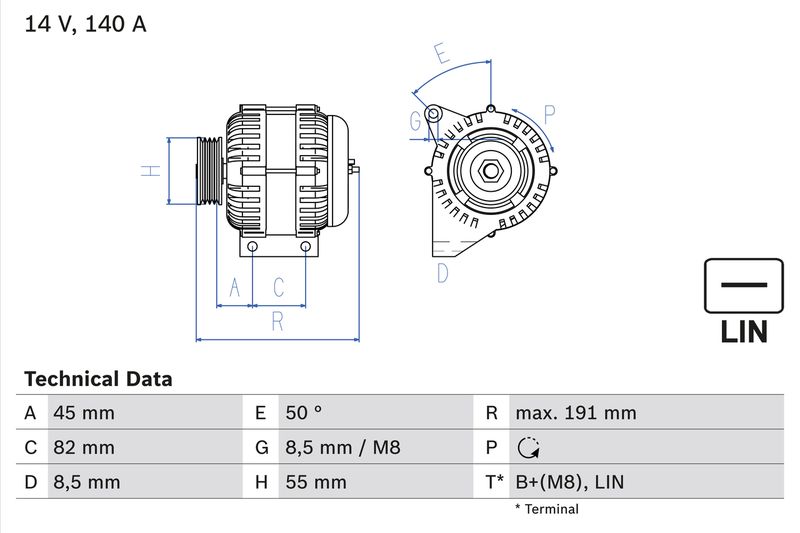

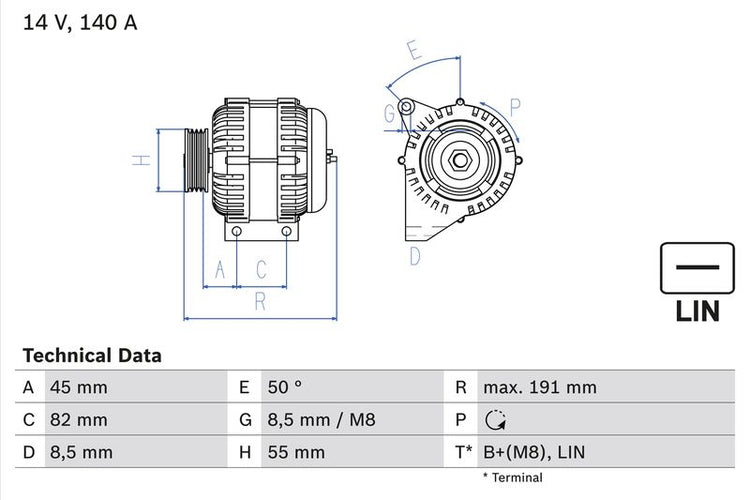

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 140
Fastening Type : Foot-mounted
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 45.1
Rotation Direction : Anticlockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 55
Clamp : B+(M8)
Plug Type ID : 149
Length [mm] : 191
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year from : 08.2004
Construction Year to : 07.2009
  • Vendor BOSCH
  • SKU 0986047380
  • Barcode 3165144046158
  • VOLVO : 30658085 30667787 30667894 36050263 8603262 8603263
  • APEC : AAL1413
  • APEC : AAL1784
  • BORG & BECK : BBA2558
  • BOSCH : 0 124 525 521
  • BOSCH : 1 986 A00 890
  • Carwood Group : BREF0320986047380
  • Carwood Group : BREF032114312
  • Carwood Group : BREF0321986A00890
  • FEBI BILSTEIN : 192971
  • HELLA : 8EL 012 428-431
  • HELLA : 9XU 358 038-251
  • LUCAS : LRA02924
  • NAPA : NAL1413
  • NAPA : NAL1784
  • WAI : 11091N
  • WAI : A135.509
  • BOSCH : 4738
