BOSCH

Bosch 0986047490 Alternator

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986047490

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£288.91 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
VIANO (W639)
Description Cylinder Capacity Horse Power Year
CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) 2148 CCM 150 HP From 09/2003
CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) 2148 CCM 109 HP From 09/2003
CDI 2.2 4-matic (639.713) 2148 CCM 109 HP From 07/2005
CDI 2.2 4-matic (639.711, 639.713, 639.811, 639.813,... 2148 CCM 150 HP From 07/2005
CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) 2148 CCM 116 HP From 08/2005
VITO / MIXTO Van (W639)
Description Cylinder Capacity Horse Power Year
115 CDI (639.601, 639.603, 639.605) 2148 CCM 150 HP 09/2003 - 08/2014
111 CDI (639.601, 639.603, 639.605) 2148 CCM 109 HP 09/2003 - 08/2007
109 CDI (639.601, 639.603, 639.605) 2148 CCM 88 HP 09/2003 - 07/2006
111 CDI (639.601, 639.603) 2148 CCM 116 HP 09/2007 - 08/2014
111 CDI 4x4 (639.601, 639.603, 639.605) 2148 CCM 109 HP 09/2007 - 08/2014
115 CDI 4x4 (639.601, 639.603, 639.605) 2148 CCM 150 HP 07/2006 - 08/2014
VITO Bus (W639)
Description Cylinder Capacity Horse Power Year
111 CDI (639.701, 639.703, 639.705) 2148 CCM 109 HP From 09/2003
115 CDI (639.701, 639.703, 639.705) 2148 CCM 150 HP From 09/2003
109 CDI (639.701, 639.703, 639.705) 2148 CCM 88 HP From 09/2003

The Bosch 0986047490 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 114 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

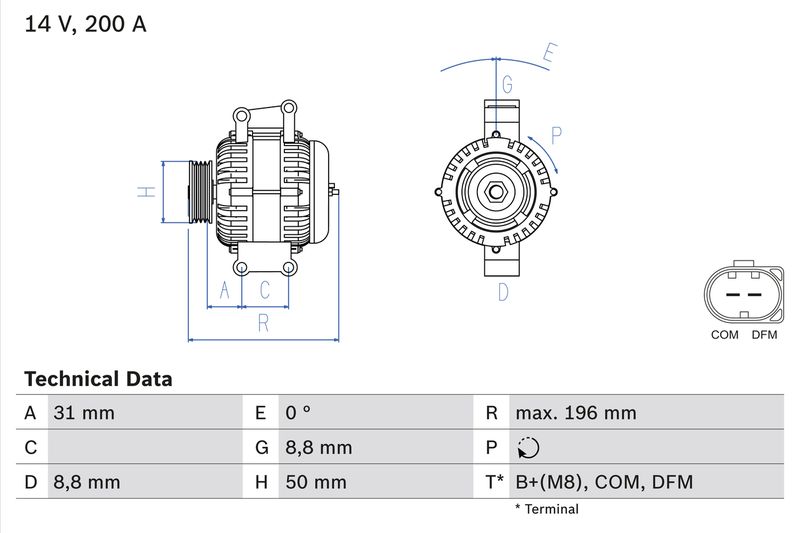

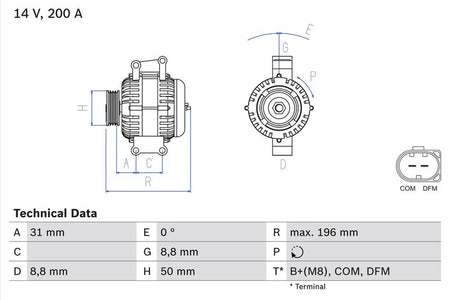

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 200
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 31.4
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 50
Clamp : B+(M8)

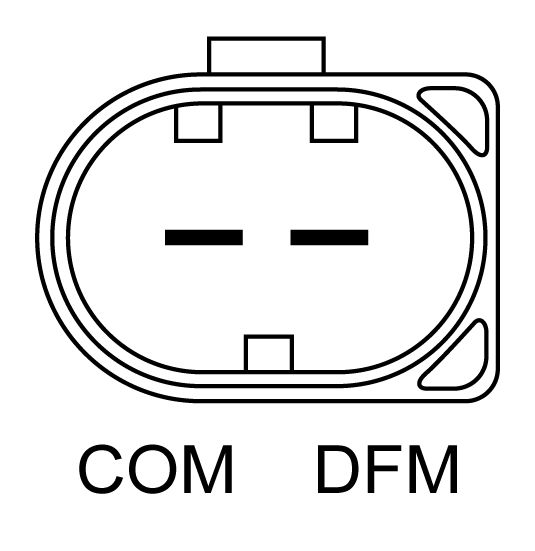

Plug Type ID : 114
Length [mm] : 196
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 0986047490
  • Barcode 3165144046271
  • MERCEDES-BENZ : A 013 154 21 02 A 013 154 21 02 80 013 154 21 02 013 154 21 02 80
  • BORG & BECK : BBA2982
  • BOSCH : 0 124 625 207
  • BOSCH : 1 986 A00 951
  • Carwood Group : BREF0320986047490
  • Carwood Group : BREF032115383
  • Carwood Group : BREF0321986A00951
  • HELLA : 8EL 011 712-211
  • LUCAS : LRA03005
  • VALEO : 443468
  • WAI : 23248N
  • BOSCH : 4749
