BOSCH

Bosch 0986047650 Alternator

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986047650

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£279.33 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
CLS (C219)
Description Cylinder Capacity Horse Power Year
CLS 500 (219.372) 5461 CCM 388 HP 04/2006 - 12/2010
GL-CLASS (X164)
Description Cylinder Capacity Horse Power Year
GL 450 4-matic (164.871) 4663 CCM 340 HP 09/2006 - 08/2012
GL 500 4-matic (164.886) 5461 CCM 388 HP 09/2006 - 12/2012
M-CLASS (W164)
Description Cylinder Capacity Horse Power Year
ML 350 4-matic (164.186) 3498 CCM 272 HP 02/2005 - 12/2011
ML 500 4-matic (164.172) 5461 CCM 388 HP 12/2007 - 12/2011
R-CLASS (W251, V251)
Description Cylinder Capacity Horse Power Year
R 280 (251.054, 251.154) 2996 CCM 231 HP 01/2007 - 12/2014
S-CLASS (W221, V221)
Description Cylinder Capacity Horse Power Year
S 350 (221.056, 221.156) 3498 CCM 272 HP 10/2005 - 12/2013
S 500 (221.071, 221.171) 5461 CCM 388 HP 10/2005 - 12/2013

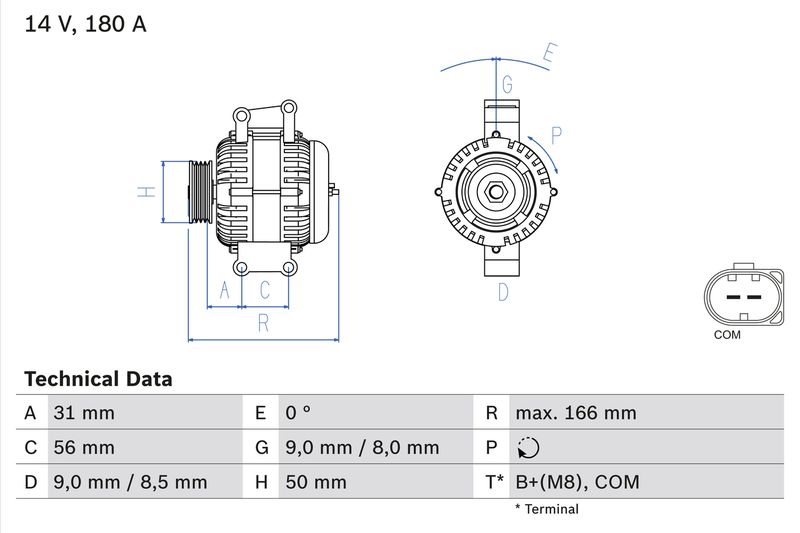

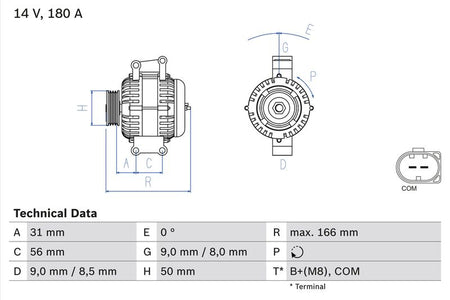

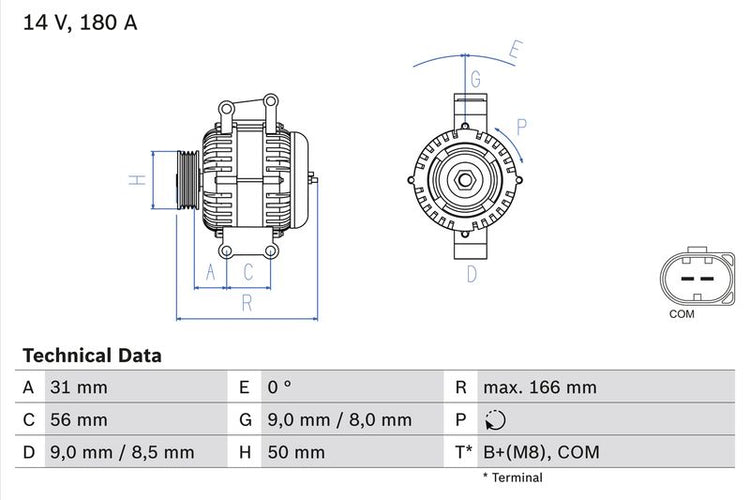

The Bosch 0986047650 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 166 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 180
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 31.4
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 50
Length [mm] : 166
Recommended additional repairs : V-Belt/V-ribbed Belt
Vehicle Identification Number (VIN) from : A 038332
not for Component Number : 806
Vehicle Identification Number (VIN) to : X 187327
Construction Year from : 04.2005
  • Vendor BOSCH
  • SKU 0986047650
  • Barcode 4047023026835
  • MERCEDES-BENZ : A 013 154 35 02 A 013 154 35 02 80 A 272 154 08 02 013 154 35 02 013 154 35 02 80 272 154 08 02
  • STEYR : 0131543502
  • APEC : AAL2095
  • Carwood Group : BREF0320986047650
  • Carwood Group : BREF032115532
  • HELLA : 8EL 015 637-841
  • LUCAS : LRA03111
  • NAPA : NAL2095
  • VALEO : 439649
  • VALEO : 440219
  • WAI : 11220N
  • WAI : A133.576
  • BOSCH : 4765
