BOSCH

Bosch 0986047910 Alternator

SKU: 0986047910
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£247.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
RELAY III Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 10/2006 - 04/2012
2.2 HDi 120 2198 CCM 120 HP 10/2006 - 04/2012
RELAY III Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 03/2009 - 06/2011
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
RELAY III Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP 04/2006 - 12/2012
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
FIAT
DUCATO Platform/Chassis (250_)
Description Cylinder Capacity Horse Power Year
100 Multijet 2,2 D 2198 CCM 101 HP 07/2006 - 05/2011
DUCATO Bus (250_)
Description Cylinder Capacity Horse Power Year
100 Multijet 2,2 D 2198 CCM 101 HP 07/2006 - 05/2011
DUCATO Van (250_)
Description Cylinder Capacity Horse Power Year
100 Multijet 2,2 D 2198 CCM 101 HP 07/2006 - 05/2011
FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
PEUGEOT
BOXER Bus
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
BOXER Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016
BOXER Van
Description Cylinder Capacity Horse Power Year
2.2 HDi 100 2198 CCM 101 HP From 04/2006
2.2 HDi 120 2198 CCM 120 HP 04/2006 - 12/2016

The Bosch 0986047910 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL61 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

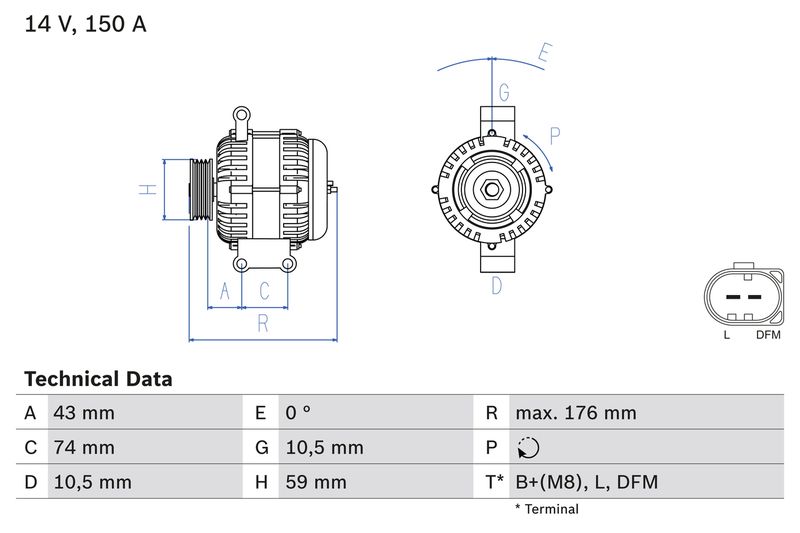

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 43.3
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 59
Clamp : B2+(M8),DFM,L
Plug Type ID : PL61
Length [mm] : 184
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 0986047910
  • Barcode 4047024102811
  • APEC : AAL1026
  • APEC : AAL1503
  • BORG & BECK : BBA2517
  • BOSCH : 0 125 711 059
  • BOSCH : 1 986 A00 679
  • Carwood Group : BREF0320986047910
  • Carwood Group : BREF032113958
  • Carwood Group : BREF0321986A00679
  • FEBI BILSTEIN : 101556
  • HELLA : 8EL 012 426-491
  • HELLA : 9XU 358 038-841
  • LUCAS : LRA02977
  • MAHLE : MG 1087
  • NAPA : NAL1026
  • NAPA : NAL1503
  • VALEO : 440612
  • VALEO : 443055
  • WAI : 23925N
  • WAI : A131.997
  • BOSCH : 4791
