Bosch 0986047960 Alternator
Your selected vehicle
Regular price
£236.54
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

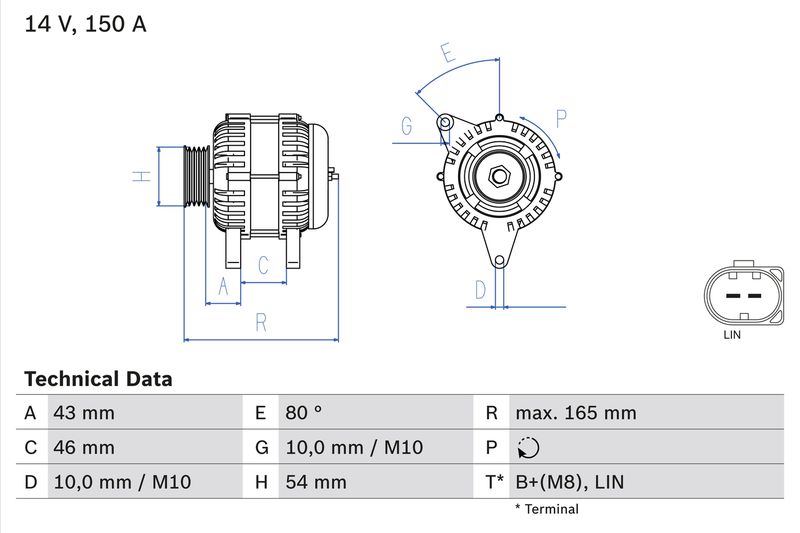

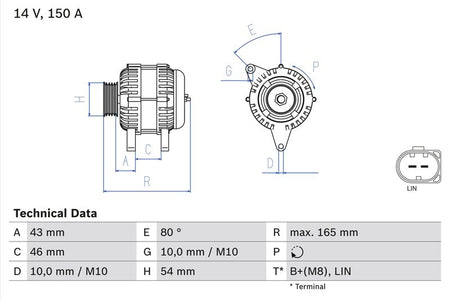

The Bosch 0986047960 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 165 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
150
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
42.6
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
54
Length [mm] :
165
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
KLWA
Construction Year to :
02.2010
Engine Code :
AZWC
Construction Year from :
09.2008
- Vendor BOSCH
- SKU 0986047960
- APEC : AAL1122
- APEC : AAL1245
- BORG & BECK : BBA2529
- Carwood Group : BREF0320986047960
- Carwood Group : BREF032116441
- HELLA : 8EL 012 430-381
- LUCAS : LRA02953
- NAPA : NAL1122
- NAPA : NAL1146
- NAPA : NAL1245
- VALEO : 439907
- VALEO : 440478
- WAI : 20214N
- WAI : 23953N
- WAI : A134.269
- WAI : A134.543
- BOSCH : 4796
