BOSCH

Bosch 0986048340 Alternator

SKU: 0986048340
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£274.06 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
COMBO Tour
Description Cylinder Capacity Horse Power Year
1.7 CDTI 16V 1686 CCM 101 HP 07/2004 - 12/2011
COMBO Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.7 CDTI 16V 1686 CCM 101 HP From 12/2004
CORSA C (X01)
Description Cylinder Capacity Horse Power Year
1.7 CDTI (F08, F68) 1686 CCM 100 HP 06/2003 - 12/2009
MERIVA A MPV (X03)
Description Cylinder Capacity Horse Power Year
1.7 CDTI (E75) 1686 CCM 100 HP 09/2003 - 05/2010
VAUXHALL
COMBO TOUR Mk II (C) (F25)
Description Cylinder Capacity Horse Power Year
1.7 CDTI 16V 1686 CCM 101 HP 12/2004 - 09/2010
COMBO Mk II (C) Box Body/MPV (F25)
Description Cylinder Capacity Horse Power Year
1.7 CDTI 16V 1686 CCM 101 HP 12/2004 - 11/2011
CORSA Mk II (C) (X01)
Description Cylinder Capacity Horse Power Year
1.7 CDTI 16V (F08, F68) 1686 CCM 100 HP 08/2000 - 09/2006
MERIVA A (X03)
Description Cylinder Capacity Horse Power Year
1.7 CDTi 1686 CCM 100 HP 09/2003 - 06/2008

The Bosch 0986048340 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, incl. vacuum pump alternator type, and PL50 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

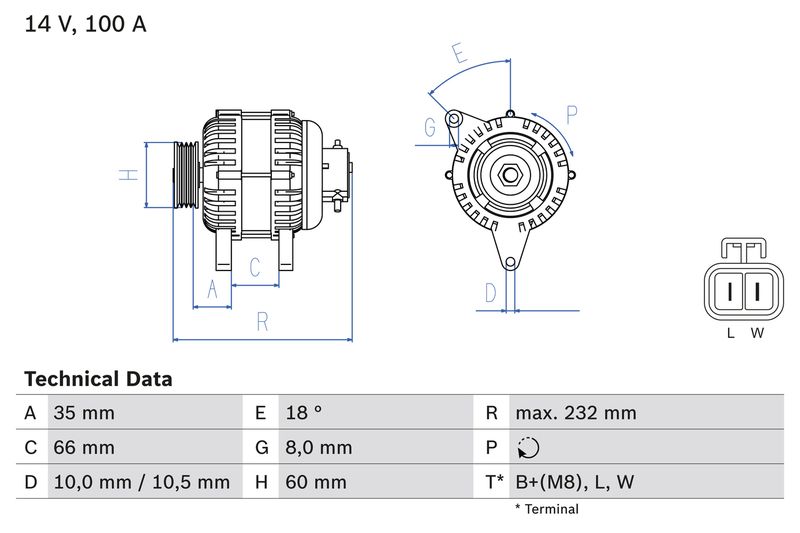

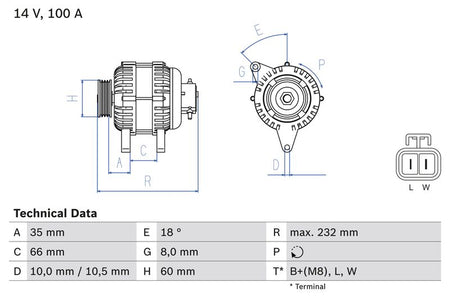

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 100
Fastening Type : Double Pivot Lever
Alternator Type : incl. vacuum pump
Distance from belt pulley to alternator [mm] : 35
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 60
Clamp : B+(M8)
Clamp : L
Clamp : W

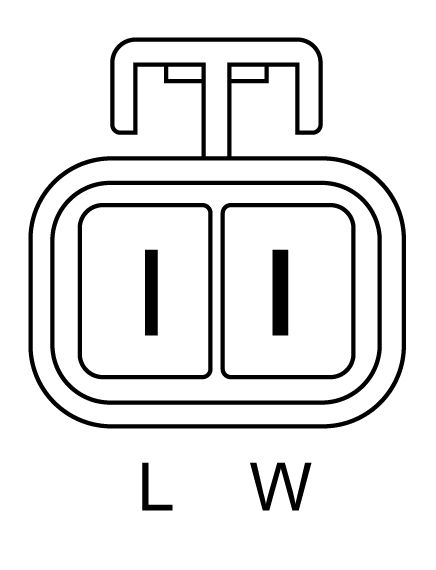

Plug Type ID : PL50
Length [mm] : 232
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year from : 09.2004
Construction Year to : 01.2011
Vehicle Equipment : for vehicles without air conditioning
Construction Year from : 09.2003
Construction Year to : 09.2006
Construction Year to : 09.2009
  • Vendor BOSCH
  • SKU 0986048340
  • Barcode 4047024813946
  • APEC : AAL1456
  • BORG & BECK : BBA2505
  • Carwood Group : BREF0320986048340
  • Carwood Group : BREF032113941
  • FEBI BILSTEIN : 187777
  • FEBI BILSTEIN : 193312
  • HELLA : 8EL 012 427-511
  • LUCAS : LRA03038
  • NAPA : NAL1456
  • VALEO : 440650
  • VALEO : 443133
  • WAI : 21832N
  • WAI : A130.182
  • BOSCH : 4834
