BOSCH

Bosch 0986048550 Alternator

SKU: 0986048550
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£271.41 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
C-CLASS (W203)
Description Cylinder Capacity Horse Power Year
C 200 CDI (203.007) 2148 CCM 122 HP 04/2003 - 02/2007
C-CLASS T-Model (S203)
Description Cylinder Capacity Horse Power Year
C 220 CDI (203.208) 2148 CCM 136 HP 08/2006 - 08/2007
C 220 CDI (203.206, 203.208) 2148 CCM 143 HP 03/2001 - 08/2007
C 200 CDI (203.204) 2148 CCM 102 HP 03/2001 - 08/2007
C-CLASS Coupe (CL203)
Description Cylinder Capacity Horse Power Year
C 200 CDI (203.707) 2148 CCM 122 HP 03/2003 - 05/2008
C 220 CDI (203.708) 2148 CCM 150 HP 02/2004 - 05/2008
CLC-CLASS (CL203)
Description Cylinder Capacity Horse Power Year
CLC 200 CDI (203.707) 2148 CCM 122 HP 05/2008 - 06/2011
CLC 220 CDI (203.708) 2148 CCM 150 HP 05/2008 - 06/2011
CLK (C209)
Description Cylinder Capacity Horse Power Year
CLK 220 CDI (209.308) 2148 CCM 150 HP 01/2005 - 05/2009
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 220 CDI (211.006) 2148 CCM 150 HP 03/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 102 HP 07/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 122 HP 07/2002 - 12/2008
E 320 CDI (211.026) 3222 CCM 204 HP 11/2002 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 220 T CDI (211.206) 2148 CCM 150 HP 03/2003 - 07/2009
E 320 T CDI (211.226) 3222 CCM 204 HP 03/2003 - 07/2009
E 280 T CDI (211.223) 3222 CCM 177 HP 05/2004 - 07/2009
E-CLASS Platform/Chassis (VF211)
Description Cylinder Capacity Horse Power Year
E 220 CDI (211.606) 2148 CCM 150 HP 10/2003 - 07/2006
S-CLASS (W220, V220)
Description Cylinder Capacity Horse Power Year
S 320 CDI (220.025, 220.125) 3222 CCM 204 HP 09/2002 - 08/2005

The Bosch 0986048550 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL114 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

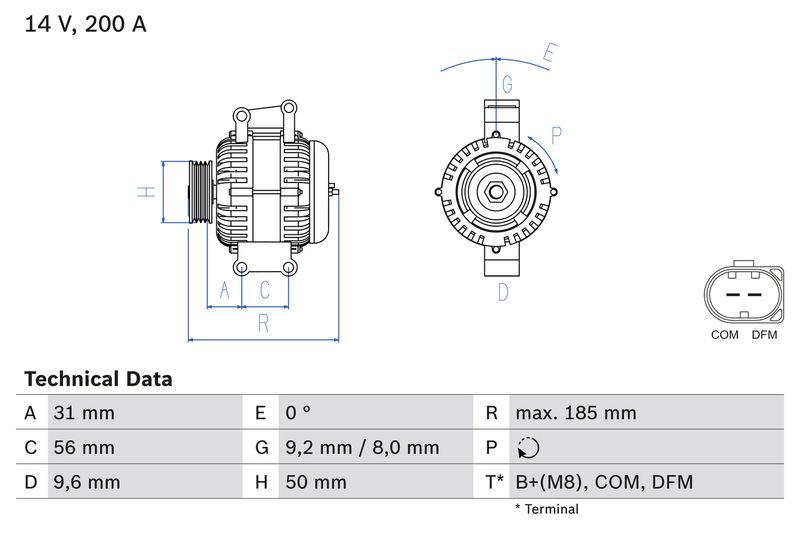

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 200
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 31.4
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 50
Clamp : B2+(M8),COM,DFM

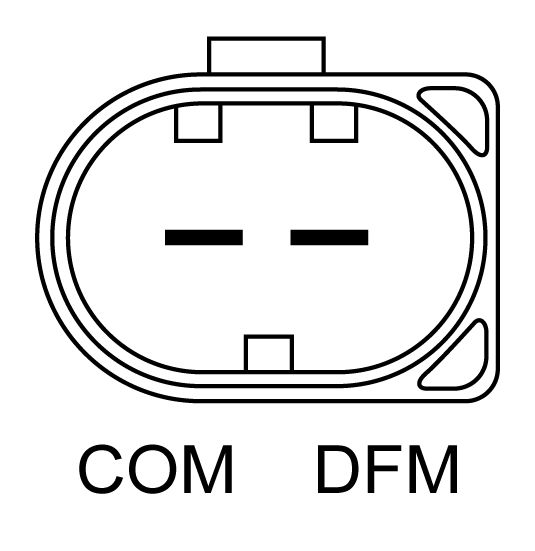

Plug Type ID : PL114
Length [mm] : 185
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : OM 646.962
Construction Year to : 02.2008
  • Vendor BOSCH
  • SKU 0986048550
  • Barcode 4047024020924
  • MERCEDES-BENZ : A 013 154 00 02 A 013 154 00 02 80 A 014 154 00 02 80 A 014 154 07 02 A 014 154 07 02 80 013 154 00 02 013 154 00 02 80 014 154 00 02 80 014 154 07 02 014 154 07 02 80
  • APEC : AAL1364
  • BORG & BECK : BBA2421
  • BOSCH : 1 986 A00 543
  • BOSCH : 1 986 A00 960
  • Carwood Group : BREF0320986048550
  • Carwood Group : BREF032113953
  • Carwood Group : BREF0321986A00960
  • HELLA : 8EL 012 428-791
  • HELLA : 8EL 738 211-091
  • LUCAS : LRA02827
  • NAPA : NAL1364
  • VALEO : 440486
  • WAI : 11216N
  • WAI : A133.954
  • BOSCH : 4855
