BOSCH

Bosch 0986048911 Alternator

SKU: 0986048911
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£192.39 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C2 (JM_)
Description Cylinder Capacity Horse Power Year
1.1 1124 CCM 60 HP 09/2003 - 09/2012
1.4 1360 CCM 73 HP 09/2003 - 12/2009
1.4 1360 CCM 75 HP 10/2006 - 12/2009
C2 ENTERPRISE (JG_)
Description Cylinder Capacity Horse Power Year
1.1 1124 CCM 60 HP 11/2003 - 12/2009
C3 I (FC_, FN_)
Description Cylinder Capacity Horse Power Year
1.1 i 1124 CCM 60 HP 08/2002 - 12/2010
1.4 i Bivalent 1360 CCM 73 HP 02/2002 - 12/2009
1.6 16V 1587 CCM 109 HP 02/2002 - 08/2010
1.4 16V 1360 CCM 88 HP 12/2003 - 08/2010
1.4 i 1360 CCM 73 HP 04/2002 - 12/2006
PEUGEOT
307 (3A/C)
Description Cylinder Capacity Horse Power Year
1.6 16V 1587 CCM 109 HP 08/2000 - 11/2007
1.4 1360 CCM 75 HP 08/2000 - 09/2003
307 SW (3H)
Description Cylinder Capacity Horse Power Year
1.6 16V 1587 CCM 109 HP 03/2002 - 04/2008
1.4 1360 CCM 75 HP 04/2002 - 09/2003
307 Estate (3E)
Description Cylinder Capacity Horse Power Year
1.6 16V 1587 CCM 109 HP 03/2002 - 04/2008
1.4 1360 CCM 75 HP 04/2002 - 09/2003

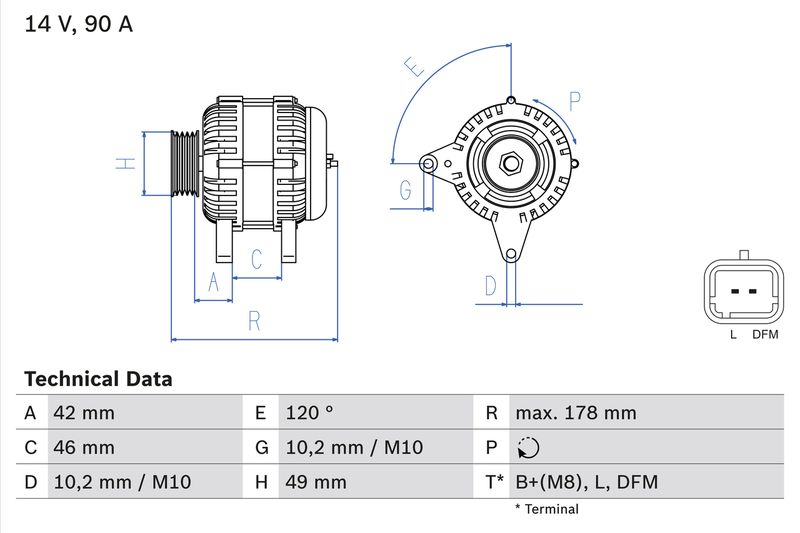

The Bosch 0986048911 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 178 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 90
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 42
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 48.5
Length [mm] : 178
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : HFX (TU1JP)
Construction Year to : 12.2009
  • Vendor BOSCH
  • SKU 0986048911
  • Barcode 4047024414853
  • CITROËN : 5702 A4 5705 6E
  • PEUGEOT : 5702 A4 5705 6E 96 385 437 80 96 428 797 80 96 496 116 80
  • APEC : AAL1783
  • APEC : AAL1825
  • BORG & BECK : BBA2179
  • BORG & BECK : BBA2320
  • Carwood Group : BREF0320986048911
  • Carwood Group : BREF032113246
  • DENSO : DAN515
  • HELLA : 8EL 012 428-311
  • LUCAS : LRA02164
  • NAPA : NAL1783
  • NAPA : NAL1825
  • VALEO : 437409
  • VALEO : 439693
  • WAI : 23164N
  • WAI : 23166N
  • WAI : A131.848
  • WAI : A131.963
  • BOSCH : 4891
