Bosch 0986048921 Alternator

SKU: 0986048921
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£166.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
3 Coupe (E46)
Description Cylinder Capacity Horse Power Year
330 Cd 2993 CCM 204 HP 03/2003 - 07/2006
320 Cd 1995 CCM 150 HP 11/2003 - 07/2006
3 Touring (E46)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 150 HP 09/2001 - 02/2005
3 Convertible (E46)
Description Cylinder Capacity Horse Power Year
320 Cd 1995 CCM 150 HP 02/2005 - 12/2007
330 Cd 2993 CCM 204 HP 08/2005 - 12/2007
3 Compact (E46)
Description Cylinder Capacity Horse Power Year
320 td 1995 CCM 150 HP 09/2001 - 02/2005
318 td 1995 CCM 115 HP 03/2003 - 02/2005
320 td 1995 CCM 136 HP 10/2001 - 12/2002
X3 (E83)
Description Cylinder Capacity Horse Power Year
3.0 d 2993 CCM 204 HP 01/2004 - 08/2005
2.0 d 1995 CCM 150 HP 09/2004 - 08/2007
3.0 d 2993 CCM 218 HP 09/2005 - 08/2008
X5 (E53)
Description Cylinder Capacity Horse Power Year
3.0 d 2993 CCM 218 HP 10/2003 - 09/2006
3.0 d 2993 CCM 211 HP 10/2003 - 09/2006
LAND ROVER
FREELANDER I (L314)
Description Cylinder Capacity Horse Power Year
2.0 Td4 4x4 1951 CCM 112 HP 11/2000 - 10/2006
2.0 Td4 4x4 1951 CCM 109 HP 03/2001 - 10/2006
FREELANDER I Soft Top (L314)
Description Cylinder Capacity Horse Power Year
2.0 TD4 4x4 1951 CCM 112 HP 10/2000 - 10/2006

The Bosch 0986048921 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL103 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

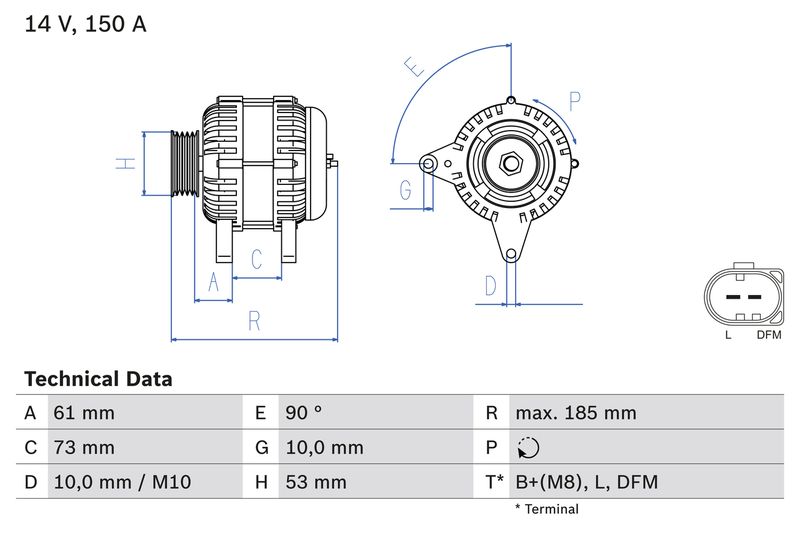

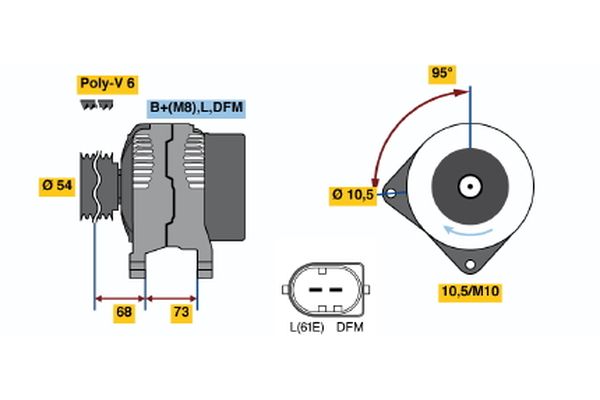

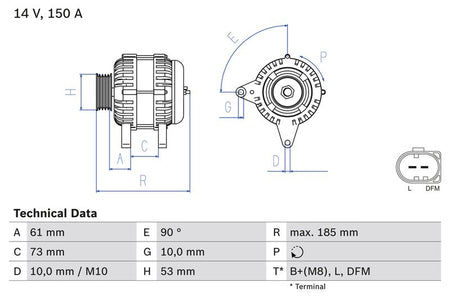

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 61
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 53

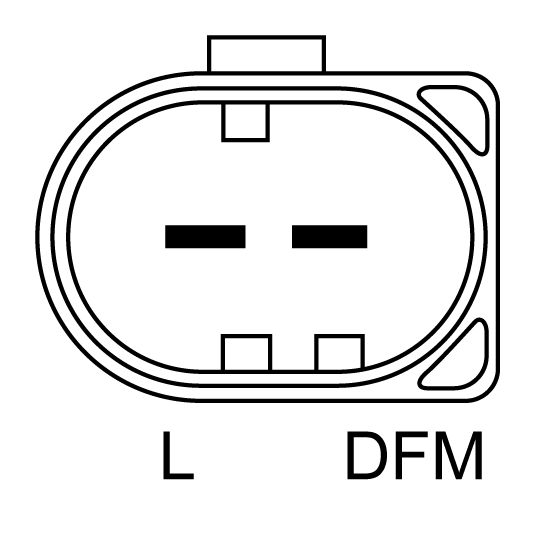

Clamp : L
Clamp : DFM
Plug Type ID : PL103
Length [mm] : 185
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year from : 10.2002
Construction Year to : 03.2005
  • Vendor BOSCH
  • SKU 0986048921
  • Barcode 4047024414860
  • BMW : 12 31 7 789 980 12 31 7 789 983 12 31 7 797 660 12 31 7 797 661
  • ROVER : YLE 5001 70
  • LAND ROVER : YLE500170
  • APEC : AAL1013
  • BORG & BECK : BBA2545
  • BOSCH : 1 986 A01 334
  • Carwood Group : BREF0320986048921
  • Carwood Group : BREF032113881
  • Carwood Group : BREF0321986A01334
  • DENSO : DAN1536
  • FEBI BILSTEIN : 188505
  • FEBI BILSTEIN : 188742
  • HELLA : 8EL 011 711-601
  • LUCAS : LRA02891
  • NAPA : NAL1013
  • NAPA : NAL1149
  • VALEO : 437452
  • VALEO : 437583
  • VALEO : 439487
  • VALEO : 439567
  • WAI : 23890N
  • WAI : A131.962
  • BOSCH : 4892
