BOSCH

Bosch 0986049101 Alternator

SKU: 0986049101
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£192.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SEAT
CORDOBA (6L2)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 10/2002 - 06/2006
1.2 12V 1198 CCM 70 HP 05/2006 - 11/2009
IBIZA Mk III (6L1)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 02/2002 - 06/2006
1.2 12V 1198 CCM 70 HP 05/2006 - 11/2009
IBIZA Mk IV (6J5, 6P1)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 60 HP 07/2009 - 05/2015
1.2 1198 CCM 70 HP 03/2008 - 05/2015
IBIZA Mk IV SC (6J1, 6P5)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 70 HP 07/2008 - 05/2015
1.2 1198 CCM 60 HP 07/2009 - 05/2015
IBIZA Mk IV ST (6J8, 6P8)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 60 HP 05/2010 - 05/2015
1.2 1198 CCM 70 HP 05/2010 - 05/2015
TOLEDO IV (KG3)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 75 HP 07/2012 - 06/2015
SKODA
FABIA I (6Y2)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 54 HP 07/2001 - 04/2007
1.2 1198 CCM 64 HP 01/2003 - 03/2008
FABIA I Saloon (6Y3)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 01/2003 - 12/2007
1.2 1198 CCM 54 HP 07/2001 - 12/2007
FABIA I Praktik (6Y5)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 01/2003 - 12/2007
1.2 1198 CCM 54 HP 07/2001 - 12/2007
FABIA I Combi (6Y5)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 01/2003 - 12/2007
1.2 1198 CCM 54 HP 07/2001 - 12/2007
FABIA II (542)
Description Cylinder Capacity Horse Power Year
1.2 12V 1198 CCM 60 HP 11/2011 - 12/2014
1.2 1198 CCM 60 HP 12/2006 - 12/2014
1.2 1198 CCM 70 HP 01/2007 - 12/2014
FABIA II Combi (545)
Description Cylinder Capacity Horse Power Year
1.2 12V 1198 CCM 60 HP 11/2011 - 12/2014
1.2 1198 CCM 70 HP 10/2007 - 12/2014
1.2 1198 CCM 60 HP 10/2007 - 11/2014
RAPID (NH3, NK3, NK6)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 75 HP 07/2012 - 06/2015
RAPID Spaceback (NH1)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 75 HP 07/2012 - 06/2015
ROOMSTER (5J7)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 05/2006 - 01/2007
1.2 1198 CCM 70 HP 01/2007 - 05/2015
ROOMSTER Praktik (5J)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 70 HP 03/2007 - 05/2015
VW
FOX Hatchback (5Z1, 5Z3, 5Z4, 5Z5)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 55 HP 04/2005 - 07/2011
1.2 1198 CCM 60 HP 09/2010 - 12/2011
POLO IV (9N_, 9A_)
Description Cylinder Capacity Horse Power Year
1.2 12V 1198 CCM 64 HP 10/2001 - 07/2007
1.2 1198 CCM 54 HP 01/2002 - 05/2007
POLO V (6R1, 6C1)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 60 HP 06/2009 - 05/2014
1.2 1198 CCM 70 HP 06/2009 - 05/2014

The Bosch 0986049101 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL61 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

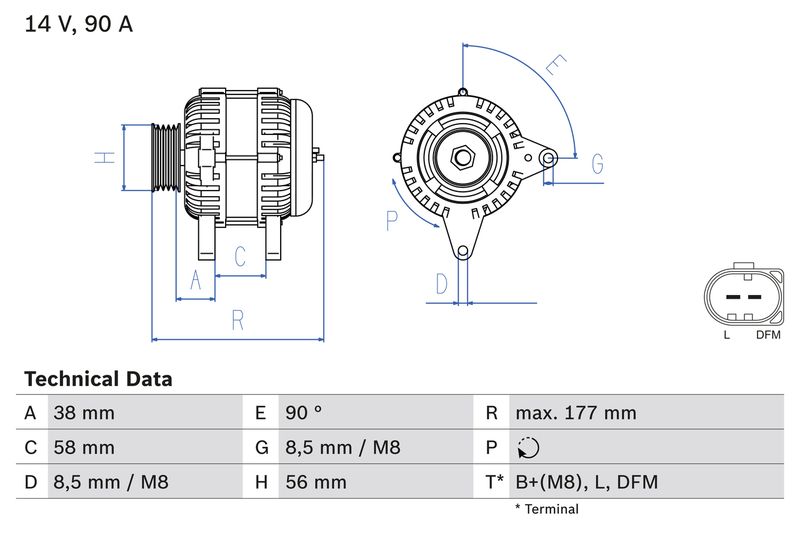

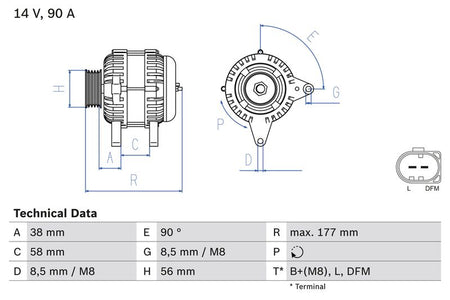

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 90
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 30.5
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 56
Clamp : B2+(M8),DFM,L

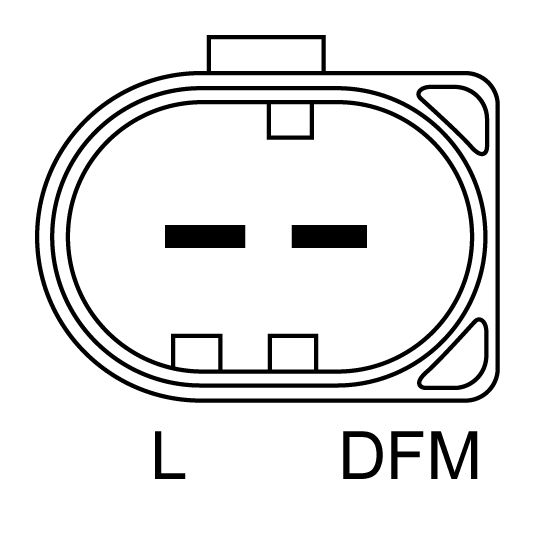

Plug Type ID : PL61
Length [mm] : 177
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : AZQ
Construction Year to : 10.2002
Vehicle Identification Number (VIN) to : 6L..3..097 169
Construction Year from : 11.2002
Construction Year to : 04.2004
Vehicle Identification Number (VIN) from : 6L..3..097 170
Engine Code : BME
Construction Year from : 11.2004
  • Vendor BOSCH
  • SKU 0986049101
  • Barcode 4047024415003
  • SEAT : 03D 903 025 E 03D 903 025 J
  • SKODA : 03D 903 025 E 03D 903 025 J
  • VW : 03D 903 025 E 03D 903 025 EX 03D 903 025 J 03D 903 025 JX
  • APEC : AAL1548
  • APEC : AAL2537
  • BORG & BECK : BBA2435
  • BOSCH : 1 986 A00 567
  • Carwood Group : BREF0320986049101
  • Carwood Group : BREF032113253
  • Carwood Group : BREF0321986A00567
  • DENSO : DAN3013
  • FEBI BILSTEIN : 102934
  • HELLA : 8EL 011 712-891
  • LUCAS : LRA02253
  • NAPA : NAL1548
  • NAPA : NAL2537
  • VALEO : 437411
  • VALEO : 437412
  • VALEO : 437444
  • VALEO : 439451
  • VALEO : 439481
  • WAI : 21602N
  • WAI : A132.548
  • BOSCH : 4910
