BOSCH

Bosch 0986049121 Alternator

SKU: 0986049121
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£196.64 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
FIESTA V (JH_, JD_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 80 HP 11/2001 - 06/2008
1.6 16V 1596 CCM 100 HP 11/2001 - 06/2008
1.25 16V 1242 CCM 70 HP 03/2003 - 06/2008
1.25 16V 1242 CCM 75 HP 05/2002 - 06/2008
FUSION (JU_)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 80 HP 08/2002 - 12/2012
1.6 1596 CCM 100 HP 08/2002 - 11/2009
1.25 1242 CCM 75 HP 08/2004 - 12/2012
1.4 LPG 1388 CCM 80 HP 01/2010 - 12/2012
MAZDA
2 (DY)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 80 HP 04/2003 - 06/2007
1.6 1596 CCM 100 HP 04/2003 - 06/2007
1.2 (DY3W) 1242 CCM 75 HP 04/2003 - 06/2007
1.6 1596 CCM 101 HP 02/2003 - 06/2007

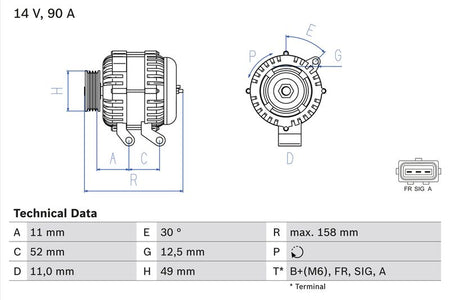

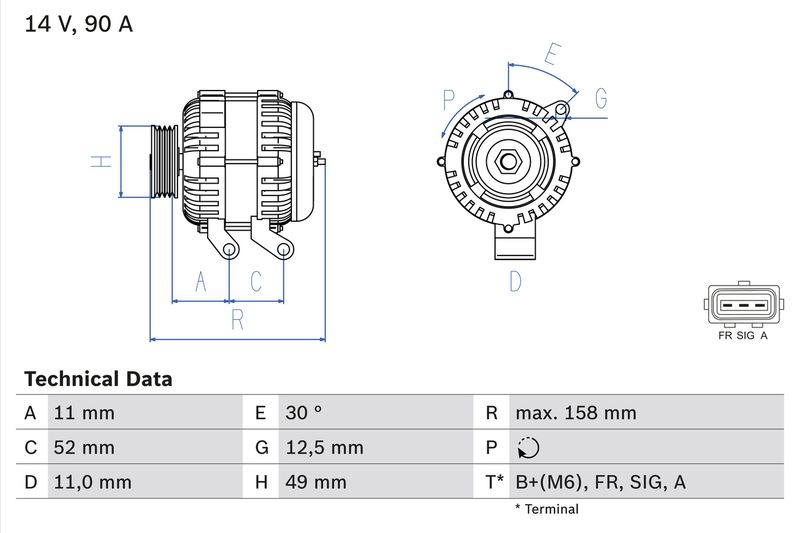

The Bosch 0986049121 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 158 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 90
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 11
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 49
Length [mm] : 158
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 0986049121
  • Barcode 4047024415010
  • FORD : 1140139 1436603 1478281 1592234 2S6T10300DB 2S6T10300DC 2S6T10300DD 2S6T10300DE
  • MAZDA : C401-18-300 C401-18-300A C401-18-300B
  • APEC : AAL1694
  • BLUE PRINT : ADM51173
  • BORG & BECK : BBA2368
  • BORG & BECK : BBA2394
  • BOSCH : 1 986 A01 258
  • Carwood Group : BREF0320986049121
  • Carwood Group : BREF032114129
  • Carwood Group : BREF0321986A01258
  • FEBI BILSTEIN : 187771
  • HELLA : 8EL 012 429-821
  • LUCAS : LRA01169
  • NAPA : NAL1694
  • VALEO : 440433
  • VALEO : 443159
  • VALEO : 446521
  • WAI : 22169N
  • WAI : A134.351
  • BOSCH : 4912
