Bosch 0986049151 Alternator
Your selected vehicle
Regular price
£193.25
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

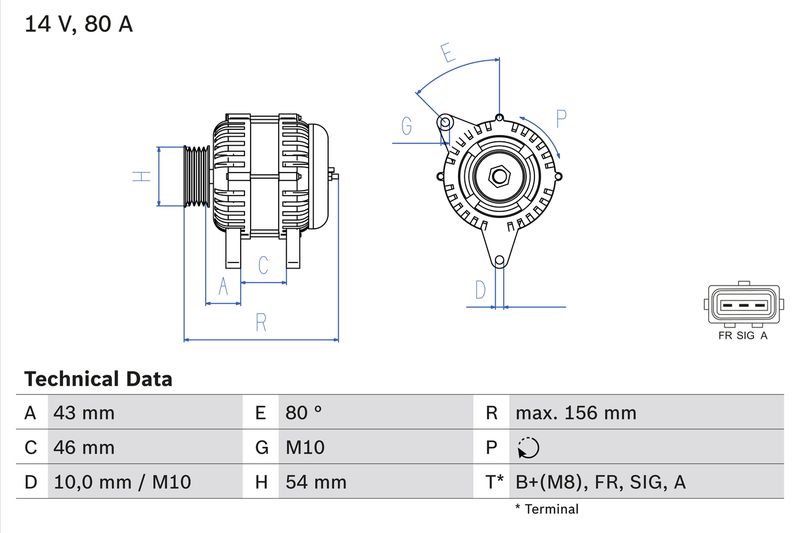

The Bosch 0986049151 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 156 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
80
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
42.5
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
54
Length [mm] :
156
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
F6JA
Engine Code :
F6JB
Heating/Cooling :
for vehicles without extra heating
Construction Year to :
06.2012
- Vendor BOSCH
- SKU 0986049151
- APEC : AAL1424
- APEC : AAL1426
- BLUE PRINT : ADM51165C
- BORG & BECK : BBA2101
- BORG & BECK : BBA2577
- BOSCH : 1 986 A01 859
- Carwood Group : BREF0320986049151
- Carwood Group : BREF032116362
- FEBI BILSTEIN : 187773
- HELLA : 8EL 011 710-771
- LUCAS : LRA02338
- NAPA : NAL1424
- NAPA : NAL1426
- VALEO : 440455
- VALEO : 443104
- WAI : 8528N
- WAI : 8531N
- WAI : A134.450
- WAI : A134.459
- User manual
- BOSCH : 4915
