Bosch 0986049161 Alternator
Your selected vehicle
Regular price
£269.10
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

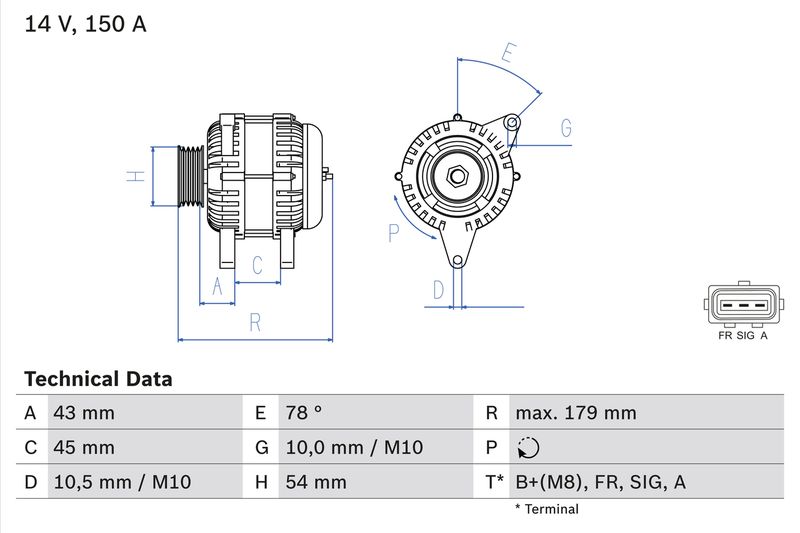

The Bosch 0986049161 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 179 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
150
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
42.5
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
54
Length [mm] :
179
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
F6JA
Engine Code :
F6JB
Heating/Cooling :
for vehicles with extra heating
Construction Year to :
06.2012
- Vendor BOSCH
- SKU 0986049161
- FORD : 1140136 1485762 2S6T10300BA 2S6T10300BB 2S6T10300BC 5190803
- MAZDA : Y402-18-300
- PEUGEOT : 96 430 016 80
- BORG & BECK : BBA2833
- BOSCH : 1 986 A01 550
- Carwood Group : BREF0320986049161
- Carwood Group : BREF032114128
- Carwood Group : BREF0321986A01550
- HELLA : 9XU 358 038-181
- LUCAS : LRA02332
- NAPA : NAL1205
- VALEO : 437432
- VALEO : 439767
- WAI : 23332N
- BOSCH : 4916
