BOSCH

Bosch 0986049171 Alternator

SKU: 0986049171
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£192.73 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 133 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 101 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 90 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 109 HP 02/2007 - 09/2010
2.0 TDCi 1997 CCM 136 HP 02/2007 - 09/2010
2.0 TDCi 1997 CCM 110 HP 02/2008 - 09/2010
FIESTA V (JH_, JD_)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 90 HP 11/2004 - 06/2008
FIESTA V Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 90 HP 04/2007 - 09/2009
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 133 HP 10/2003 - 03/2007
1.6 TDCi 1560 CCM 109 HP 10/2003 - 03/2007
2.0 TDCi 1997 CCM 136 HP 10/2003 - 03/2007
1.6 TDCi 1560 CCM 90 HP 02/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 133 HP 07/2004 - 01/2008
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 10/2005 - 03/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
FOCUS II Estate Van
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 101 HP 11/2004 - 07/2011
1.6 TDCi 1560 CCM 109 HP 07/2004 - 07/2011
1.6 TDCi 1560 CCM 90 HP 09/2005 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 133 HP 07/2004 - 01/2008
1.6 TDCi 1560 CCM 110 HP 12/2007 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 90 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 109 HP 04/2005 - 09/2012
2.0 TDCi 1997 CCM 136 HP 04/2005 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 136 HP 10/2006 - 09/2010
FUSION (JU_)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 90 HP 11/2004 - 12/2012
KUGA I
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 136 HP 03/2008 - 11/2012
2.0 TDCi 4x4 1997 CCM 136 HP 03/2008 - 11/2012
MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
1.6 MZ-CD 1560 CCM 90 HP 06/2006 - 12/2009
3 (BL)
Description Cylinder Capacity Horse Power Year
1.6 MZ-CD (BL14) 1560 CCM 109 HP 12/2008 - 05/2013
3 Saloon (BL)
Description Cylinder Capacity Horse Power Year
1.6 MZR CD (BL12) 1560 CCM 109 HP 12/2008 - 05/2013
VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
1.6 D 1560 CCM 109 HP 10/2006 - 12/2012
2.0 D 1998 CCM 136 HP 10/2006 - 12/2012
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
2.0 D 1998 CCM 136 HP 01/2008 - 10/2009
S40 II (544)
Description Cylinder Capacity Horse Power Year
2.0 D 1998 CCM 136 HP 01/2004 - 12/2010
1.6 D 1560 CCM 110 HP 01/2005 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
2.0 D 1998 CCM 136 HP 04/2004 - 12/2010
1.6 D 1560 CCM 110 HP 01/2005 - 12/2011

The Bosch 0986049171 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL57 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

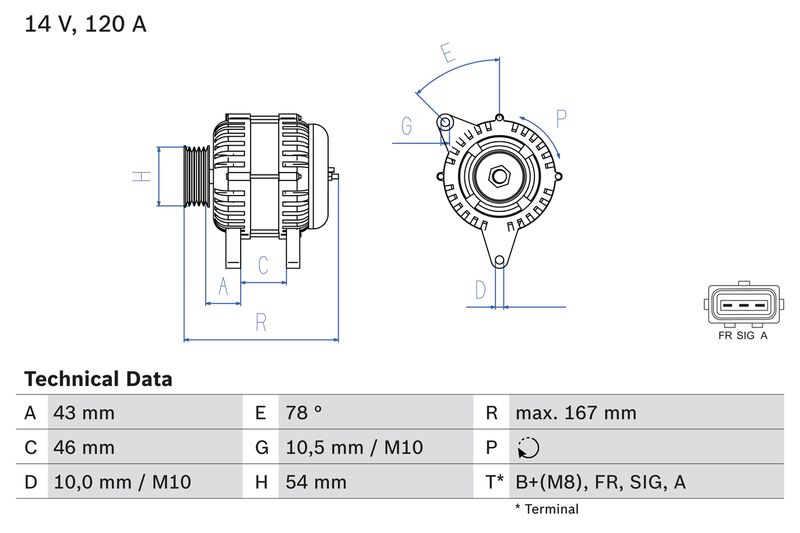

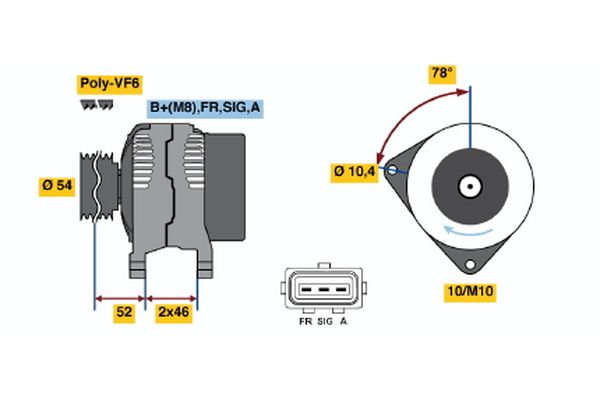

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 120
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 42.5
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 54

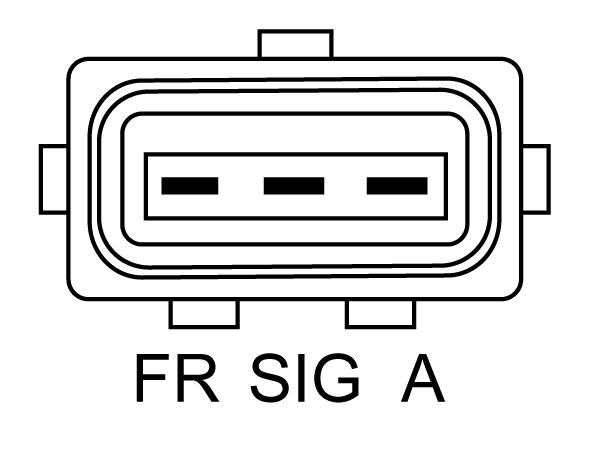

Clamp : B+(M8)
Clamp : SIG
Clamp : FR
Clamp : A
Plug Type ID : PL57
Length [mm] : 167
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : HHDA
Engine Code : HHDB
Construction Year from : 12.2009
Construction Year to : 07.2010
Engine Code : G8DC
Construction Year from : 03.2007
  • Vendor BOSCH
  • SKU 0986049171
  • Barcode 4047024415034
  • FORD : 1229258 1255712 1477737 1676842 1707062 3M5T10300PC 3M5T10300PD 31288154 8M5T10300PA 8M5T10300PB
  • MAZDA : Y601-18-300 Y601-18-300A Y601-18-300B
  • VOLVO : 30667067 30795422 36000598 8603182 8666579
  • APEC : AAL1555
  • APEC : AAL1782
  • BORG & BECK : BBA2332
  • BOSCH : 1 986 A00 579
  • Carwood Group : BREF0320986049171
  • Carwood Group : BREF032113922
  • Carwood Group : BREF0321986A00579
  • DENSO : DAN1119
  • FEBI BILSTEIN : 193165
  • HELLA : 8EL 011 711-801
  • LUCAS : LRA02814
  • NAPA : NAL1555
  • NAPA : NAL1782
  • VALEO : 440348
  • VALEO : 443038
  • VALEO : 446537
  • WAI : 23820N
  • WAI : A134.448
  • User manual
  • BOSCH : 4917
