BOSCH

Bosch 0986049181 Alternator

SKU: 0986049181
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£239.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 16V LPG 1796 CCM 116 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013

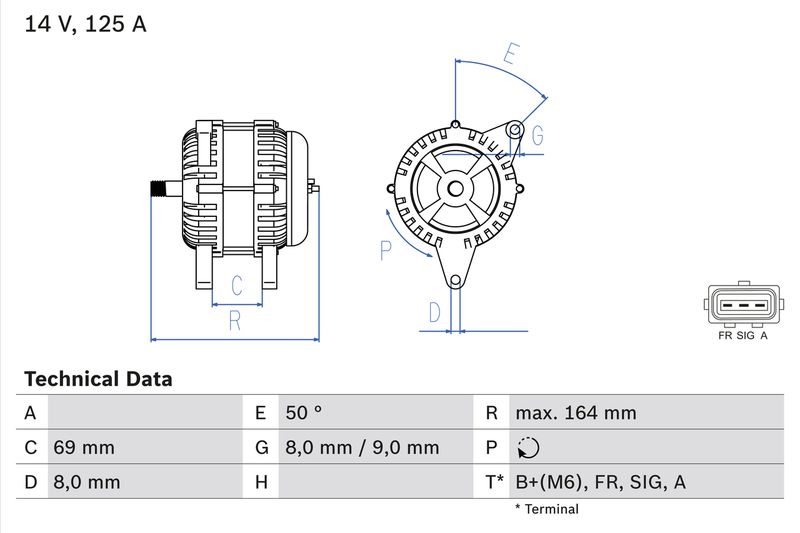

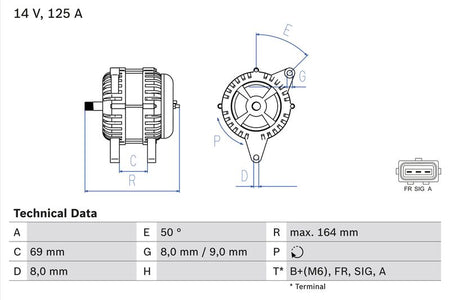

The Bosch 0986049181 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 164 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 125
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Rotation Direction : Clockwise rotation
Length [mm] : 164
Recommended additional repairs : V-Belt/V-ribbed Belt
Pulleys : without belt pulley
Engine Code : EYPA
Engine Code : EYPC
Construction Year to : 06.2010
Engine Code : BHPA
Engine Code : BHPB<93EEC>
Engine Code : HCPA
Engine Code : HCPB
Engine Code : P9PA
Engine Code : P9PB
Engine Code : R3PA
Engine Code : HCPC
  • Vendor BOSCH
  • SKU 0986049181
  • Barcode 4047024415041
  • APEC : AAL1392
  • APEC : AAL1404
  • APEC : AAL5541
  • BORG & BECK : BBA2233
  • BORG & BECK : BBA2537
  • BOSCH : 1 986 A01 851
  • Carwood Group : BREF0320986049181
  • Carwood Group : BREF032113710
  • Carwood Group : BREF0321986A01851
  • FEBI BILSTEIN : 101543
  • HELLA : 8EL 011 710-831
  • LUCAS : LRA01171
  • NAPA : NAL1392
  • NAPA : NAL5541
  • VALEO : 439420
  • VALEO : 440193
  • VALEO : 440665
  • WAI : 23852N
  • WAI : 23853N
  • WAI : A134.457
  • WAI : A134.461
  • User manual
  • BOSCH : 4918
