Bosch 0986049350 Alternator
Your selected vehicle
Regular price
£247.38
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986049350 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 28 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL82 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

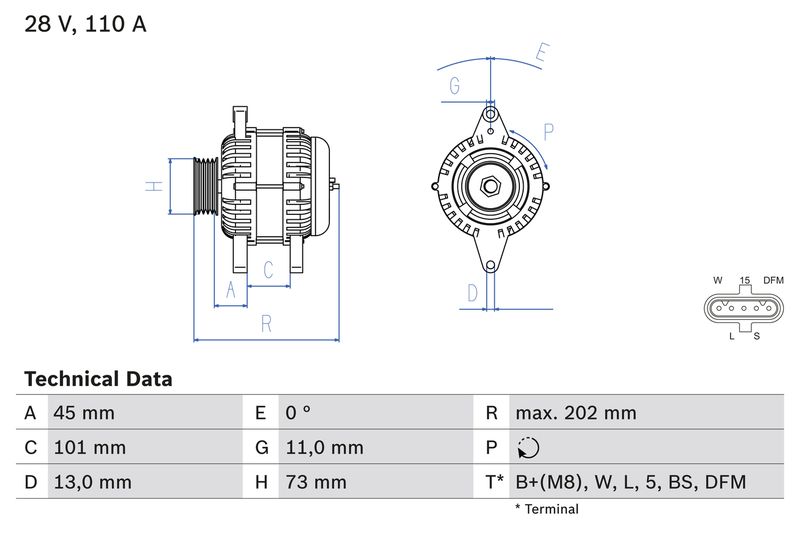

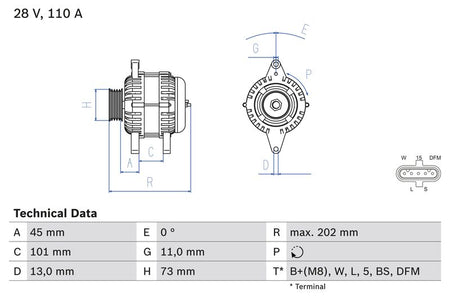

Function :
Alternator
Voltage [V] :
28
Alternator Charging Current [A] :
110
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
44.5
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
8
Belt Pulley Ø [mm] :
73
Clamp :
B+(M8x1.25)

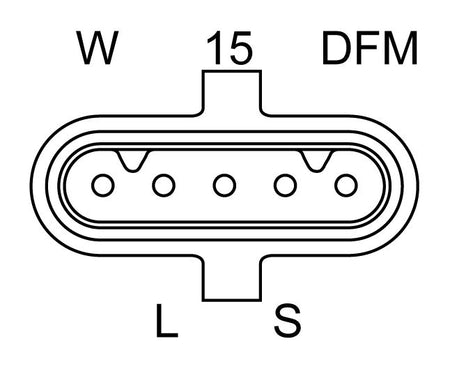

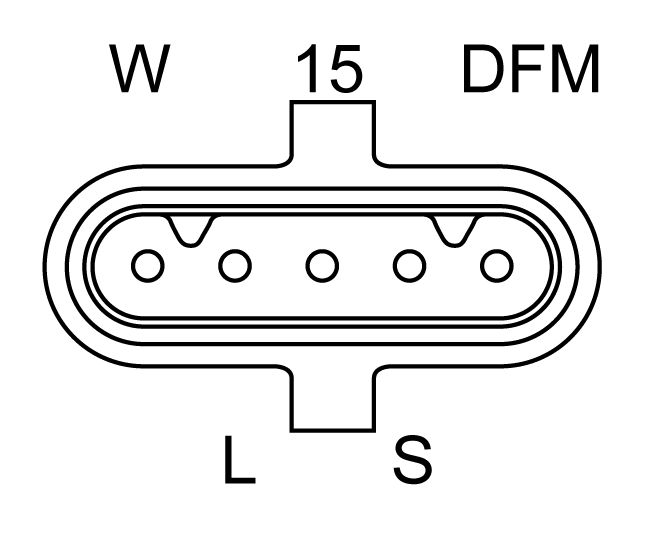

Plug Type ID :
PL82
Length [mm] :
216
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986049350
- RENAULT : 50 10 589 551 74 20 466 317 74 20 862 899
- VOLVO : 20466317 20849352 21429787
- BOSCH : 0 124 655 500
- BOSCH : 1 986 A01 034
- Carwood Group : BREF0320986049350
- Carwood Group : BREF032114212
- Carwood Group : BREF0321986A01034
- FEBI BILSTEIN : 48957
- HELLA : 8EL 012 584-791
- LUCAS : LRA03285
- MAHLE : MG 815
- VALEO : 202031
- VALEO : 202103
- VALEO : 443489
- VALEO : 444233
- WAI : 21278N
- WAI : 23876N
- BOSCH : 4935
