Bosch 0986049670 Alternator

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986049670

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£246.13 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 02/2007 - 09/2010
2.0 CNG 1999 CCM 145 HP 04/2009 - 09/2010
2.0 LPG 1999 CCM 145 HP 06/2008 - 09/2010
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 10/2003 - 03/2007
2.0 1999 CCM 145 HP 03/2004 - 03/2007
1.8 1798 CCM 125 HP 04/2004 - 03/2007
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 03/2007
1.8 1798 CCM 122 HP 09/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.0 LPG 1999 CCM 145 HP 06/2008 - 07/2011
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 04/2005 - 07/2011
1.8 Flexifuel 1798 CCM 125 HP 06/2006 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 10/2006 - 09/2010
VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 125 HP 10/2006 - 12/2012
2.0 1999 CCM 145 HP 10/2006 - 12/2012
1.8 FlexFuel 1798 CCM 125 HP 01/2007 - 12/2012
2.0 FlexFuel 1999 CCM 146 HP 01/2010 - 12/2012
S40 II (544)
Description Cylinder Capacity Horse Power Year
2.0 F 1999 CCM 146 HP 10/2009 - 12/2012
1.8 1798 CCM 125 HP 04/2004 - 12/2010
2.0 1999 CCM 146 HP 10/2006 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 125 HP 04/2004 - 12/2010
2.0 1999 CCM 146 HP 10/2006 - 12/2012
1.8 FlexFuel 1798 CCM 125 HP 01/2005 - 12/2010

The Bosch 0986049670 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records Direct fastening fastening type, excl. vacuum pump alternator type, PL57 plug type id, and manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

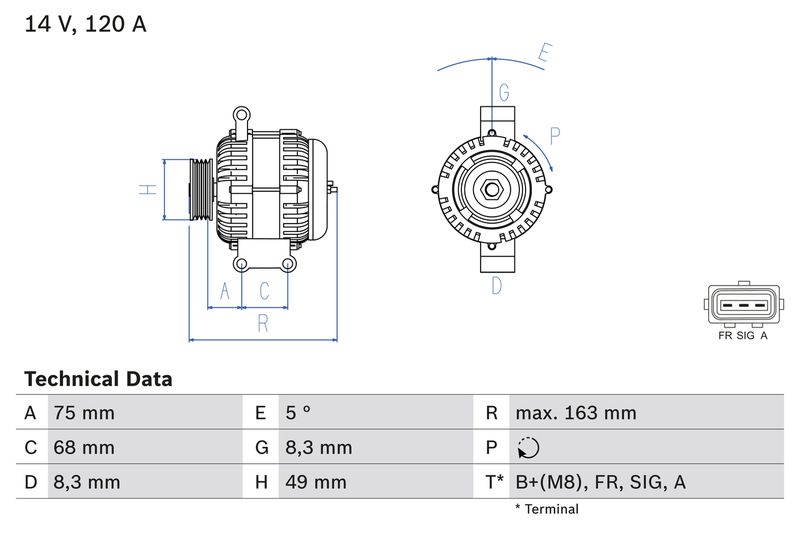

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 120
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 75
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 49

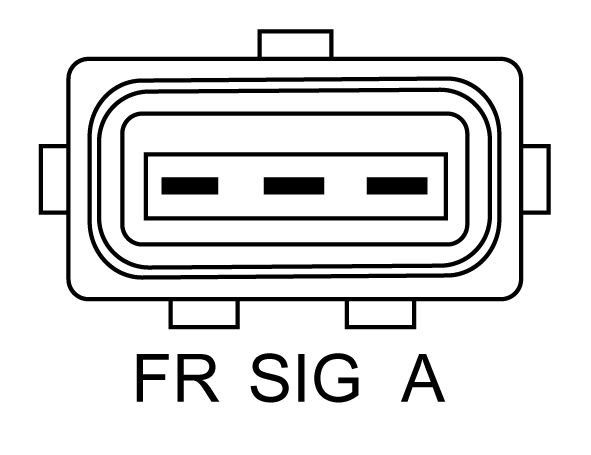

Clamp : B+(M8)
Clamp : SIG
Clamp : FR
Clamp : A
Plug Type ID : PL57
Length [mm] : 163
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : AODA
Engine Code : AODB
Engine Code : AODE
Construction Year to : 07.2010
Transmission Type : Manual Transmission
  • Vendor BOSCH
  • SKU 0986049670
  • Barcode 4047024645912
  • FORD : 1256552 1530299 3M5T10300VA 3M5T10300VB 3M5T10300VC 3M5T10300VD
  • VOLVO : 30667071 30755494 36002574 8603271 8688170
  • APEC : AAL1403
  • APEC : AAL1841
  • BORG & BECK : BBA2328
  • BOSCH : 1 986 A01 338
  • Carwood Group : BREF0320986049670
  • Carwood Group : BREF032113978
  • Carwood Group : BREF0321986A01338
  • DENSO : DAN1016
  • HELLA : 8EL 011 711-621
  • LUCAS : LRA02839
  • NAPA : NAL1403
  • NAPA : NAL1841
  • VALEO : 440431
  • WAI : 23839N
  • WAI : A134.514
  • User manual
  • BOSCH : 4967
