Bosch 0986049980 Alternator
Your selected vehicle
Regular price
£200.96
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

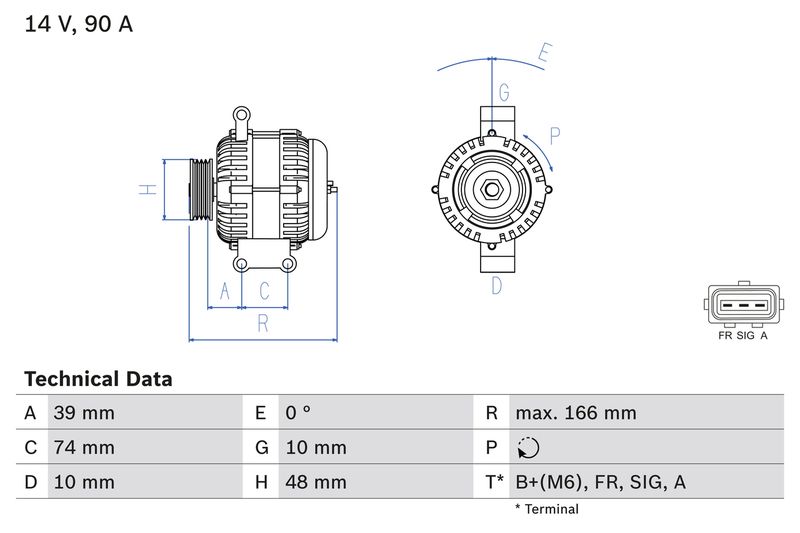

The Bosch 0986049980 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL57 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
90
Fastening Type :
Direct fastening
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
39
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
48
Clamp :
B+(M6)
Clamp :
SIG
Clamp :
FR
Clamp :
A

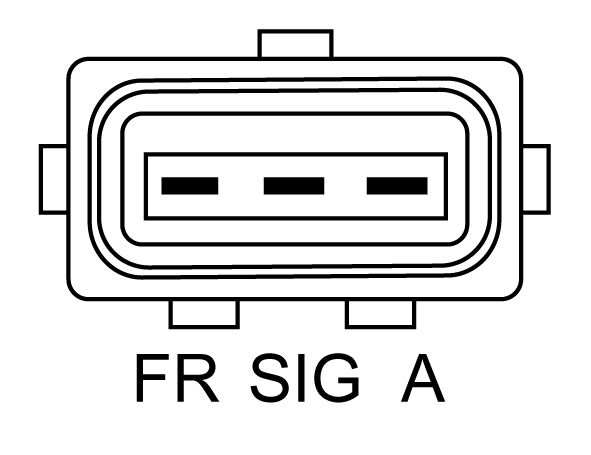

Plug Type ID :
PL57
Length [mm] :
166
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
FYDA
Construction Year from :
09.2003
for OE number :
2S6T1 0300 FC
- Vendor BOSCH
- SKU 0986049980
- APEC : AAL1772
- BORG & BECK : BBA2496
- Carwood Group : BREF0320986049980
- Carwood Group : BREF032113883
- FEBI BILSTEIN : 193203
- HELLA : 8EL 012 428-851
- LUCAS : LRA03039
- NAPA : NAL1772
- VALEO : 437453
- VALEO : 439729
- VALEO : 440566
- WAI : 8527N
- WAI : A134.441
- User manual
- BOSCH : 4998
