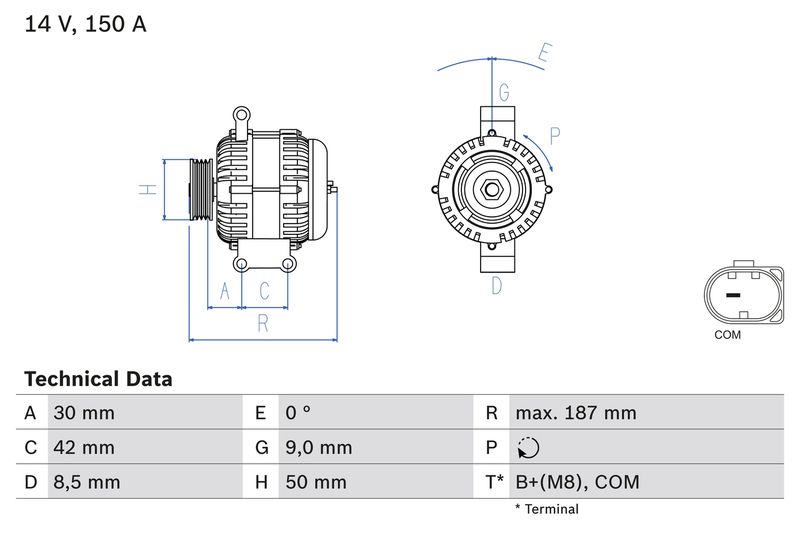

Bosch 0986080040 Alternator - 1

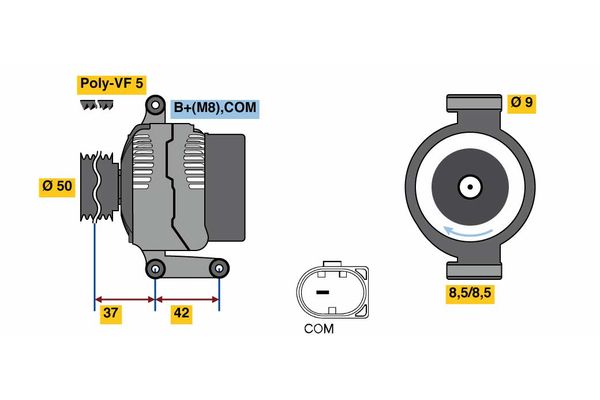

Bosch 0986080040 Alternator - 2

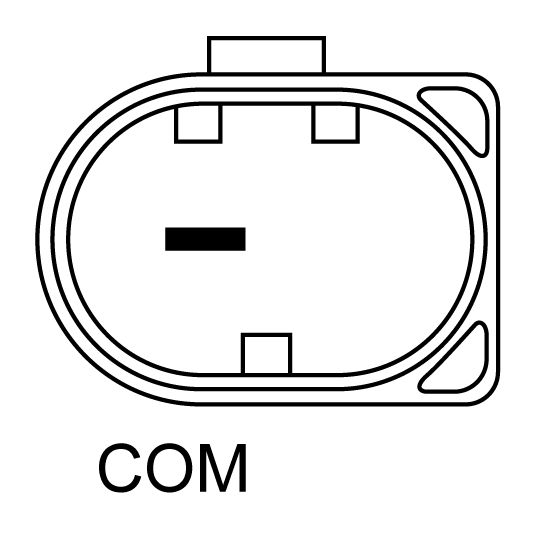

Bosch 0986080040 Alternator - 3
Bosch 0986080040 Alternator - 1
Bosch 0986080040 Alternator - 2
Bosch 0986080040 Alternator - 3
BOSCH

Bosch 0986080040 Alternator

SKU: 0986080040
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£252.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W169)
Description Cylinder Capacity Horse Power Year
A 200 CDI (169.308, 169.008) 1991 CCM 136 HP 09/2004 - 06/2012
A 160 CDI (169.006, 169.306) 1991 CCM 82 HP 09/2004 - 06/2012
A 180 CDI (169.007, 169.307) 1991 CCM 109 HP 09/2004 - 06/2012
A 200 CDI (169.008, 169.308) 1991 CCM 140 HP 09/2004 - 06/2012
B-CLASS Sports Tourer (W245)
Description Cylinder Capacity Horse Power Year
B 180 CDI (245.207) 1991 CCM 109 HP 03/2005 - 11/2011
B 200 CDI (245.208) 1991 CCM 140 HP 03/2005 - 11/2011
B 200 CDI (245.208) 1991 CCM 136 HP 03/2005 - 11/2011

The Bosch 0986080040 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and PL125 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 30
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 5
Belt Pulley Ø [mm] : 50
Clamp : COM
Clamp : B+(M8)
Plug Type ID : PL125
Length [mm] : 187
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year to : 04.2012
  • Vendor BOSCH
  • SKU 0986080040
  • Barcode 4047024809970
  • MERCEDES-BENZ : A 640 154 01 02 A 640 154 02 02 A 640 154 03 02 A 640 154 04 02 A 640 154 05 02 640 154 01 02 640 154 02 02 640 154 03 02 640 154 04 02 640 154 05 02
  • APEC : AAL1118
  • BORG & BECK : BBA2972
  • BOSCH : 1 986 A00 569
  • Carwood Group : BREF0320986080040
  • Carwood Group : BREF032114130
  • Carwood Group : BREF032116069
  • Carwood Group : BREF0321986A00569
  • HELLA : 8EL 012 429-401
  • LUCAS : LRA02885
  • NAPA : NAL1058
  • NAPA : NAL1118
  • VALEO : 437545
  • VALEO : 439552
  • WAI : 23896N
  • WAI : A133.945
  • BOSCH : 8004
