BOSCH

Bosch 0986080090 Alternator

SKU: 0986080090
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£311.04 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A6 C6 (4F2)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 225 HP 05/2004 - 05/2006
3.0 TDI quattro 2967 CCM 211 HP 05/2004 - 03/2011
2.7 TDI 2698 CCM 180 HP 11/2004 - 10/2008
2.7 TDI 2698 CCM 163 HP 11/2004 - 03/2011
2.7 TDI quattro 2698 CCM 180 HP 11/2004 - 10/2008
A6 C6 Avant (4F5)
Description Cylinder Capacity Horse Power Year
2.7 TDI 2698 CCM 163 HP 03/2005 - 08/2011
3.0 TDI quattro 2967 CCM 225 HP 03/2005 - 05/2006
3.0 TDI quattro 2967 CCM 211 HP 03/2005 - 08/2011
2.7 TDI 2698 CCM 180 HP 03/2005 - 10/2008
2.7 TDI quattro 2698 CCM 180 HP 11/2004 - 10/2008
2.7 TDI quattro 2698 CCM 163 HP 06/2005 - 08/2011
A6 Allroad C6 (4FH)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 233 HP 05/2006 - 10/2008
2.7 TDI quattro 2698 CCM 180 HP 03/2006 - 10/2008
3.0 TDI quattro 2967 CCM 211 HP 05/2006 - 08/2011
2.7 TDI quattro 2698 CCM 163 HP 05/2006 - 08/2011
A8 D3 (4E2, 4E8)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 233 HP 08/2003 - 07/2010
3.0 TDI quattro 2967 CCM 211 HP 11/2003 - 07/2010
Q7 (4LB)
Description Cylinder Capacity Horse Power Year
3.0 TDI quattro 2967 CCM 233 HP 03/2006 - 05/2008
3.0 TDI quattro 2967 CCM 211 HP 03/2006 - 05/2010
VW
TOUAREG (7LA, 7L6, 7L7)
Description Cylinder Capacity Horse Power Year
3.0 V6 TDI 2967 CCM 225 HP 11/2004 - 05/2010
3.0 V6 TDI 2967 CCM 240 HP 11/2007 - 05/2010
3.0 TDI 2967 CCM 211 HP 04/2006 - 05/2010

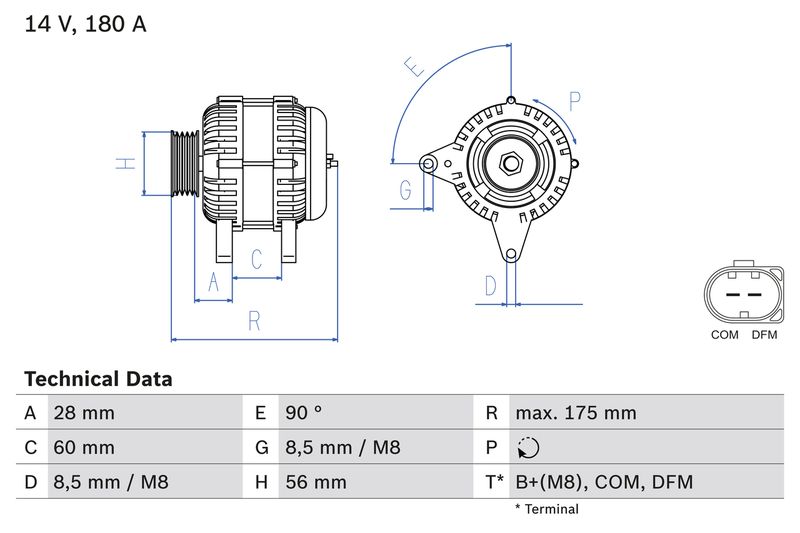

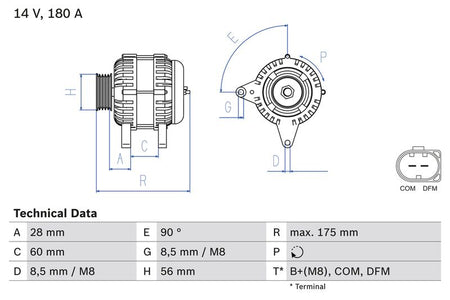

The Bosch 0986080090 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL114 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 180
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 28.3
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 56
Clamp : B1+(M8)
Clamp : COM
Clamp : DFM

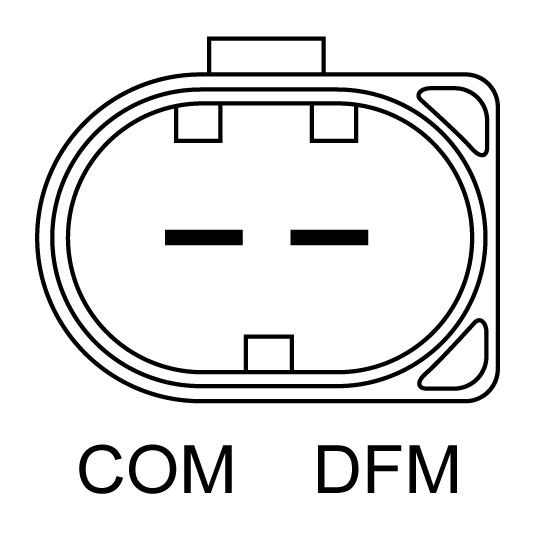

Plug Type ID : PL114
Length [mm] : 175
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : BSG
Construction Year to : 10.2008
Engine Code : BNG
Construction Year to : 05.2007
  • Vendor BOSCH
  • SKU 0986080090
  • Barcode 4047024816701
  • AUDI : 059 903 015 R 059 903 017 K 06C 903 016 J
  • VW : 059 903 015 R 059 903 017 K 06C 903 016 J
  • APEC : AAL1722
  • BORG & BECK : BBA2286
  • Carwood Group : BREF0320986080090
  • Carwood Group : BREF032114408
  • HELLA : 8EL 012 429-701
  • LUCAS : LRA02364
  • NAPA : NAL1722
  • VALEO : 437507
  • VALEO : 439527
  • WAI : 23364N
  • WAI : A131.437
  • BOSCH : 8009
