Bosch 0986080350 Alternator - 1
Bosch 0986080350 Alternator - 2
Bosch 0986080350 Alternator - 3
Bosch 0986080350 Alternator - 1
Bosch 0986080350 Alternator - 2
Bosch 0986080350 Alternator - 3
BOSCH

Bosch 0986080350 Alternator

SKU: 0986080350
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£280.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (E60)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 218 HP 09/2002 - 09/2005
525 d 2497 CCM 177 HP 06/2004 - 03/2010
M5 4999 CCM 507 HP 09/2004 - 12/2009
535 d 2993 CCM 272 HP 09/2004 - 03/2010
520 d 1995 CCM 163 HP 09/2005 - 12/2009
530 d 2993 CCM 231 HP 09/2005 - 03/2007
5 Touring (E61)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 218 HP 03/2004 - 09/2005
525 d 2497 CCM 177 HP 03/2004 - 03/2007
535 d 2993 CCM 272 HP 09/2004 - 12/2010
530 d 2993 CCM 231 HP 02/2005 - 02/2007
530 xd 2993 CCM 231 HP 02/2005 - 02/2007
520 d 1995 CCM 163 HP 04/2005 - 05/2010
525 d 2497 CCM 163 HP 03/2004 - 03/2007
6 (E63)
Description Cylinder Capacity Horse Power Year
M 4999 CCM 507 HP 09/2005 - 07/2010
635 d 2993 CCM 286 HP 07/2007 - 07/2010
6 Convertible (E64)
Description Cylinder Capacity Horse Power Year
M6 4999 CCM 507 HP 09/2006 - 08/2010
635 d 2993 CCM 286 HP 07/2007 - 07/2010
7 (E65, E66, E67)
Description Cylinder Capacity Horse Power Year
730 d 2993 CCM 211 HP 09/2003 - 08/2008
730 d 2993 CCM 218 HP 06/2002 - 02/2005
730 Ld 2993 CCM 231 HP 07/2005 - 08/2008

The Bosch 0986080350 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL86 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 170
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 60
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 53.5
Clamp : COM
Clamp : B+(M8)

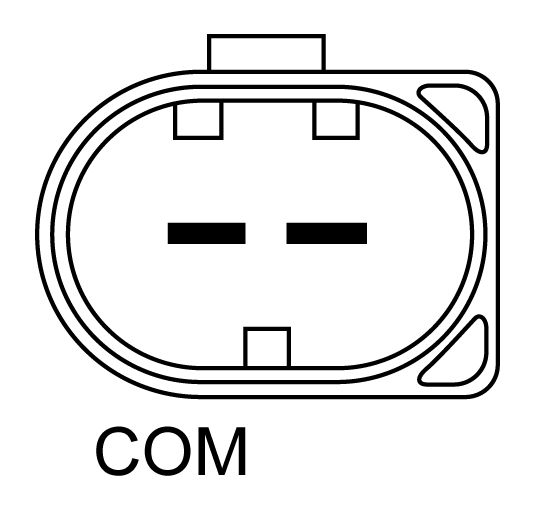

Plug Type ID : PL86
Length [mm] : 187
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : M47 D20 (204D4)
Construction Year to : 02.2008
  • Vendor BOSCH
  • SKU 0986080350
  • Barcode 4047024797734
  • BMW : 12 31 7 789 981 12 31 7 789 984 12 31 7 792 072 12 31 7 797 521 12 31 7 797 522 12 31 7 799 204 12 31 7 802 929 12 31 7 834 160 7 792 072 7 834 160
  • APEC : AAL1009
  • BORG & BECK : BBA2481
  • BOSCH : 1 986 A01 770
  • Carwood Group : BREF0320986080350
  • Carwood Group : BREF032113896
  • Carwood Group : BREF032116158
  • Carwood Group : BREF0321986A01770
  • FEBI BILSTEIN : 188321
  • HELLA : 8EL 011 710-891
  • LUCAS : LRA02319
  • NAPA : NAL1009
  • VALEO : 437450
  • VALEO : 437556
  • VALEO : 439485
  • VALEO : 439559
  • WAI : 23319N
  • WAI : A131.966
  • BOSCH : 8035
