BOSCH

Bosch 0986080390 Alternator

SKU: 0986080390

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£185.75 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

B-SERIE (UN)

Description	Cylinder Capacity	Horse Power	Year
2.5 D 4WD	2499 CCM	78 HP	06/1999 - 11/2006
2.5 TD 4WD	2499 CCM	109 HP	06/1999 - 07/2006
2.5 D	2499 CCM	78 HP	06/1999 - 11/2006
2.5 D	2499 CCM	84 HP	12/2002 - 11/2006
2.5 D 4WD	2499 CCM	84 HP	12/2002 - 11/2006
2.5 D	2499 CCM	83 HP	11/1999 - 12/2001
2.5 D 4WD	2499 CCM	83 HP	11/1999 - 12/2001

The Bosch 0986080390 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL49 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

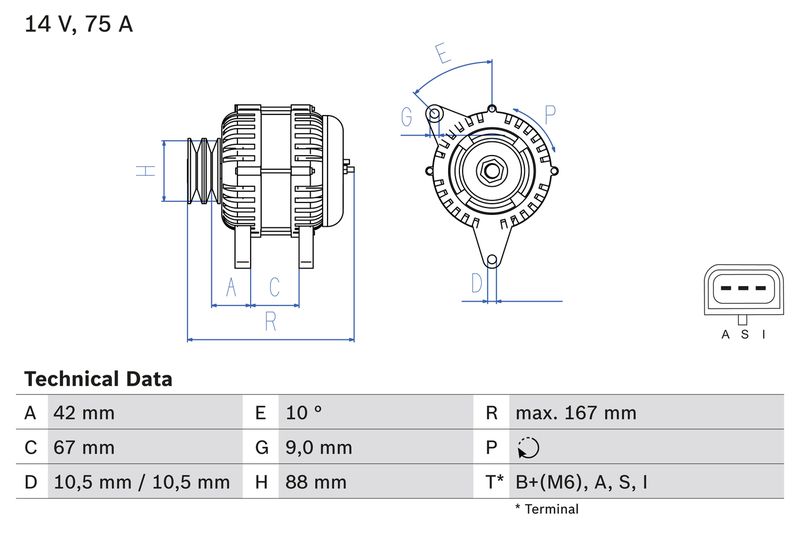

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 75

Fastening Type : Double Pivot Lever

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 42

Rotation Direction : Clockwise rotation

Pulleys : with double pulley

Number of grooves : 2

Belt Pulley Ø [mm] : 88

Clamp : B+(M6),A,S,I

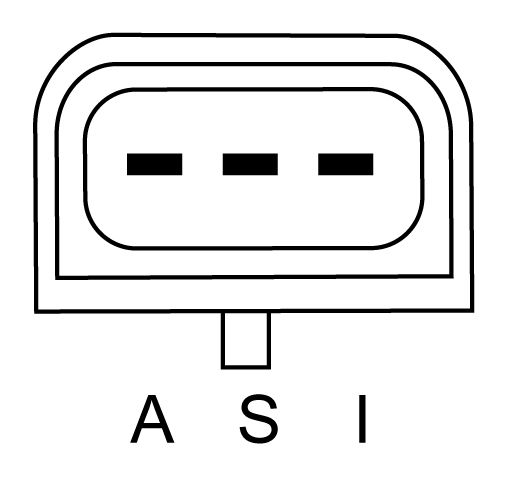

Plug Type ID : PL49

Length [mm] : 167

Recommended additional repairs : V-Belt/V-ribbed Belt

Construction Year from : 09.2001

Vehicle Identification Number (VIN) to : 2161262

Construction Year to : 03.2006

Bosch 0986080390 Alternator
