Bosch 0986080440 Alternator

SKU: 0986080440
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£189.30 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 02/2007 - 09/2010
1.6 1596 CCM 116 HP 04/2007 - 09/2010
FIESTA V (JH_, JD_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 80 HP 11/2001 - 06/2008
1.6 16V 1596 CCM 100 HP 11/2001 - 06/2008
1.25 16V 1242 CCM 70 HP 03/2003 - 06/2008
1.25 16V 1242 CCM 75 HP 05/2002 - 06/2008
FOCUS I Estate Van (DNW)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 101 HP 04/1999 - 03/2005
FOCUS I (DAW, DBW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 10/1998 - 11/2004
1.6 16V 1596 CCM 100 HP 10/1998 - 11/2004
1.4 16V 1388 CCM 75 HP 10/1998 - 09/1999
FOCUS I Turnier (DNW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
FOCUS I Saloon (DFW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 10/2003 - 03/2007
1.6 Ti 1596 CCM 115 HP 08/2004 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 07/2004 - 09/2012
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
FOCUS II Estate Van
Description Cylinder Capacity Horse Power Year
1.6 Ti-VCT 1596 CCM 116 HP 09/2005 - 07/2011
1.6 1596 CCM 101 HP 09/2005 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 07/2011
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 80 HP 04/2005 - 09/2012
1.6 1596 CCM 100 HP 04/2005 - 09/2012
1.6 Ti 1596 CCM 115 HP 04/2005 - 09/2012
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 10/2006 - 09/2010
FUSION (JU_)
Description Cylinder Capacity Horse Power Year
1.4 1388 CCM 80 HP 08/2002 - 12/2012
1.6 1596 CCM 100 HP 08/2002 - 11/2009
1.25 1242 CCM 75 HP 08/2004 - 12/2012
1.4 LPG 1388 CCM 80 HP 01/2010 - 12/2012

The Bosch 0986080440 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Foot-mounted fastening type, excl. vacuum pump alternator type, and 57 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

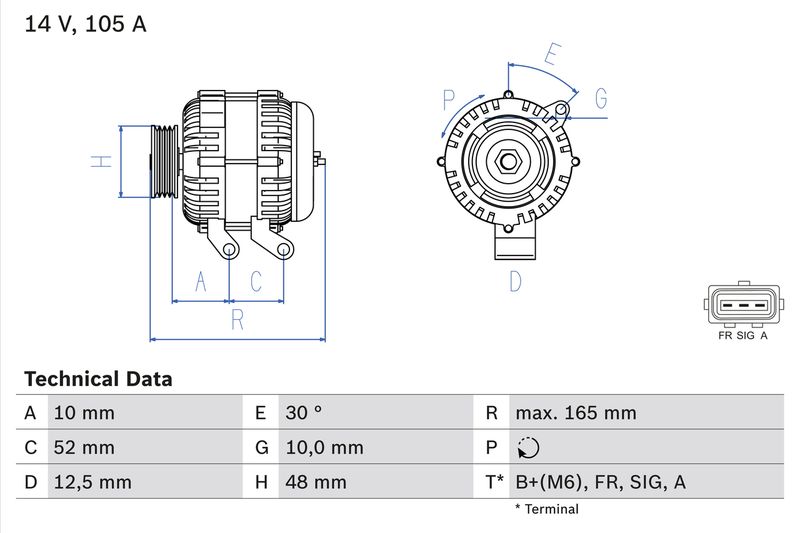

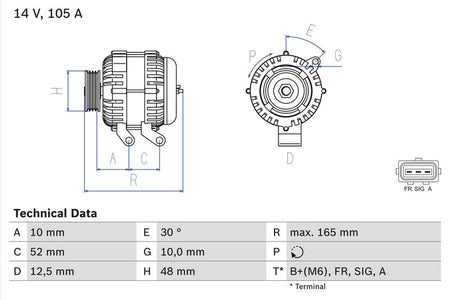

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 105
Fastening Type : Foot-mounted
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 10
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 48
Clamp : B+(M6)

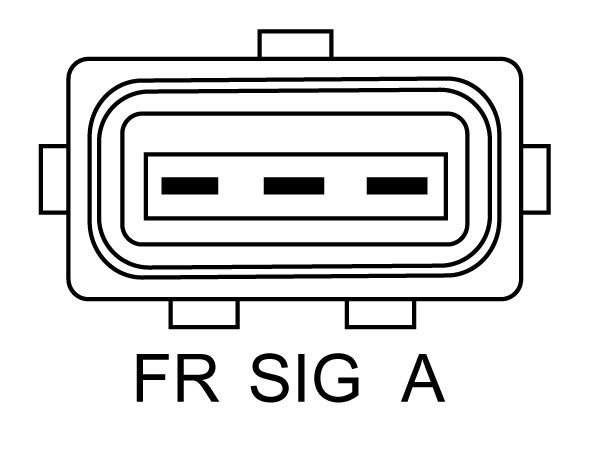

Plug Type ID : 57
Length [mm] : 165
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : SHDA
Engine Code : SHDB
Engine Code : SHDC
Construction Year to : 07.2010
Engine Code : SIDA
  • Vendor BOSCH
  • SKU 0986080440
  • Barcode 4047024797826
  • FORD : 1305962 1322573 1361259 1426014 1511220 1708472 3N1110300AA 3N1110300AB 3N1110300AC 3N1110300AD 3N1110300AE 3N1110300AF 3N1110300AG
  • APEC : AAL1045
  • BORG & BECK : BBA2542
  • BOSCH : 1 986 A00 588
  • Carwood Group : BREF0320986080440
  • Carwood Group : BREF032114009
  • Carwood Group : BREF0321986A00588
  • DENSO : DAN588
  • HELLA : 8EL 012 428-421
  • LUCAS : LRA03013
  • NAPA : NAL1045
  • VALEO : 440425
  • VALEO : 446521
  • WAI : 24013N
  • WAI : A134.350
