Home / Car Parts / Electrical / Alternator
Bosch 0986080480 Alternator - 1
Bosch 0986080480 Alternator - 2
Bosch 0986080480 Alternator - 1
Bosch 0986080480 Alternator - 2
BOSCH

Bosch 0986080480 Alternator

SKU: 0986080480
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£242.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MITSUBISHI
COLT VI (Z3_A, Z2_A)
Description Cylinder Capacity Horse Power Year
1.3 (Z21A) 1332 CCM 95 HP 06/2004 - 06/2012
1.1 (Z31A, Z32A) 1124 CCM 75 HP 10/2004 - 06/2012
1.3 LPG (Z33A) 1332 CCM 95 HP 06/2004 - 06/2012
1.3 Flexfuel (Z35A) 1332 CCM 95 HP 10/2008 - 06/2012
COLT CZC VI Convertible (RG)
Description Cylinder Capacity Horse Power Year
1.5 (Z36A) 1499 CCM 109 HP 05/2006 - 07/2009
SMART
FORFOUR (454)
Description Cylinder Capacity Horse Power Year
1.1 (454.030) 1124 CCM 75 HP 01/2004 - 06/2006
1.3 (454.031) 1332 CCM 95 HP 01/2004 - 06/2006
1.5 (454.032) 1499 CCM 109 HP 01/2004 - 06/2006
1.1 (454.033) 1124 CCM 64 HP 02/2005 - 06/2006
1.5 (454.032) 1499 CCM 122 HP 01/2004 - 06/2006

The Bosch 0986080480 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL351 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

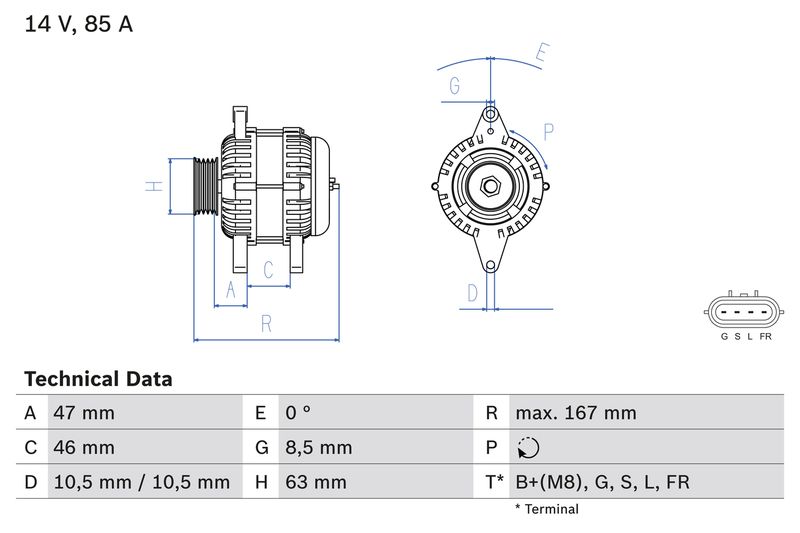

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 85
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 47
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 5
Belt Pulley Ø [mm] : 63

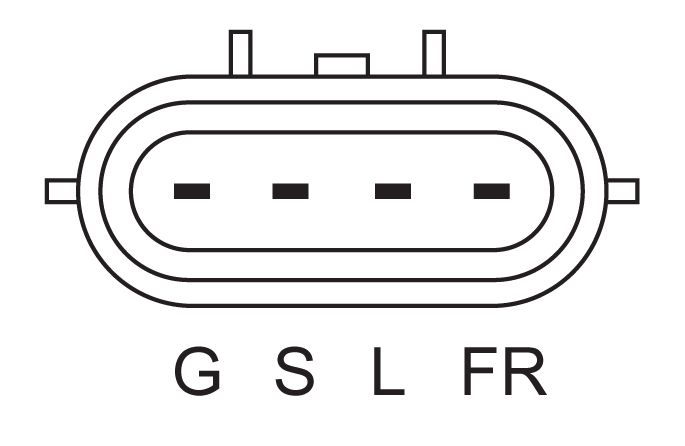

Clamp : B+(M8),G,S,L,FR
Plug Type ID : PL351
Length [mm] : 167
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year from : 10.2008
Vehicle Equipment : for vehicles without start-stop function
Construction Year to : 09.2008
  • Vendor BOSCH
  • SKU 0986080480
  • Barcode 4047024797864
  • MERCEDES-BENZ : A 135 154 02 02 135 154 02 02
  • MITSUBISHI : MN155953 1800A070 1800A222 1800A248
  • SMART : 1351540202
  • APEC : AAL1789
  • BORG & BECK : BBA2518
  • Carwood Group : BREF0320986080480
  • Carwood Group : BREF032115441
  • HELLA : 8EL 012 430-871
  • LUCAS : LRA02849
  • NAPA : NAL1789
  • VALEO : 440817
  • WAI : 23849N
  • WAI : A130.452
  • BOSCH : 8048
