Bosch 0986080500 Alternator

SKU: 0986080500

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£273.36 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

A-CLASS (W169)

Description	Cylinder Capacity	Horse Power	Year
A 170 (169.032, 169.332)	1699 CCM	116 HP	09/2004 - 06/2012
A 150 (169.031, 169.331)	1498 CCM	95 HP	09/2004 - 06/2012
A 160 (169.031, 169.331)	1498 CCM	95 HP	04/2009 - 06/2012
A 180 (169.032, 169.332)	1699 CCM	116 HP	04/2009 - 06/2012

B-CLASS Sports Tourer (W245)

Description	Cylinder Capacity	Horse Power	Year
B 170 (245.232)	1699 CCM	116 HP	03/2005 - 11/2011
B 150 (245.231)	1498 CCM	95 HP	03/2005 - 11/2011
B 160 (245.231)	1498 CCM	95 HP	04/2009 - 11/2011
B 180 (245.232)	1699 CCM	116 HP	04/2009 - 11/2011

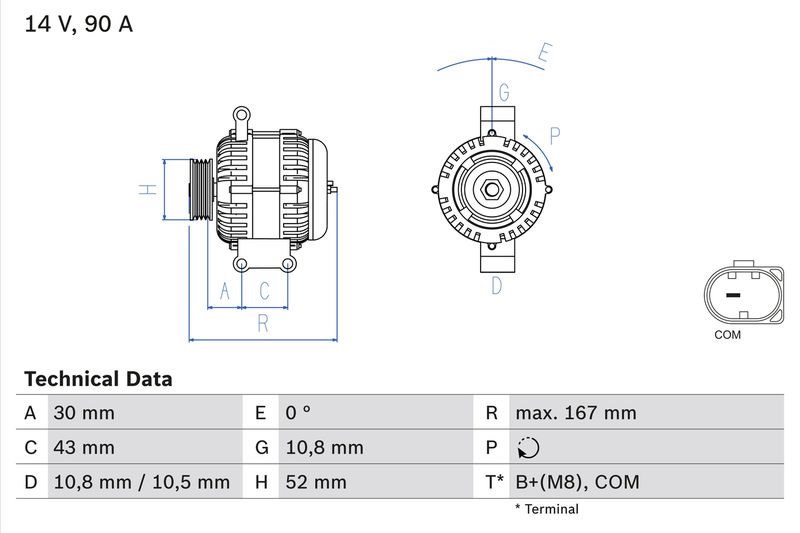

The Bosch 0986080500 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 167 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator

Voltage [V] : 14

Alternator Charging Current [A] : 90

Fastening Type : Direct fastening

Alternator Type : excl. vacuum pump

Distance from belt pulley to alternator [mm] : 30

Rotation Direction : Clockwise rotation

Pulleys : with multi-belt pulley

Number of grooves : 5

Belt Pulley Ø [mm] : 52

Length [mm] : 167

Recommended additional repairs : V-Belt/V-ribbed Belt

Construction Year to : 04.2009

Construction Year to : 04.2012
