BOSCH

Bosch 0986080580 Alternator

SKU: 0986080580
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£252.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
118 d 1995 CCM 122 HP 06/2004 - 02/2007
3 (E90)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 163 HP 12/2004 - 10/2011
318 d 1995 CCM 122 HP 03/2005 - 08/2007
330 d 2993 CCM 231 HP 09/2005 - 09/2008
330 xd 2993 CCM 231 HP 09/2005 - 08/2008
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 163 HP 06/2005 - 06/2012
330 d 2993 CCM 231 HP 12/2004 - 08/2008
330 xd 2993 CCM 231 HP 09/2005 - 06/2012
318 d 1995 CCM 122 HP 09/2005 - 08/2007
3 Coupe (E92)
Description Cylinder Capacity Horse Power Year
335 d 2993 CCM 286 HP 03/2006 - 03/2013
330 d 2993 CCM 231 HP 03/2006 - 08/2008
330 xd 2993 CCM 231 HP 03/2006 - 08/2008
325 d 2993 CCM 197 HP 02/2007 - 02/2010
3 Convertible (E93)
Description Cylinder Capacity Horse Power Year
330 d 2993 CCM 231 HP 03/2007 - 12/2013
325 d 2993 CCM 197 HP 03/2007 - 12/2010

The Bosch 0986080580 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 177 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

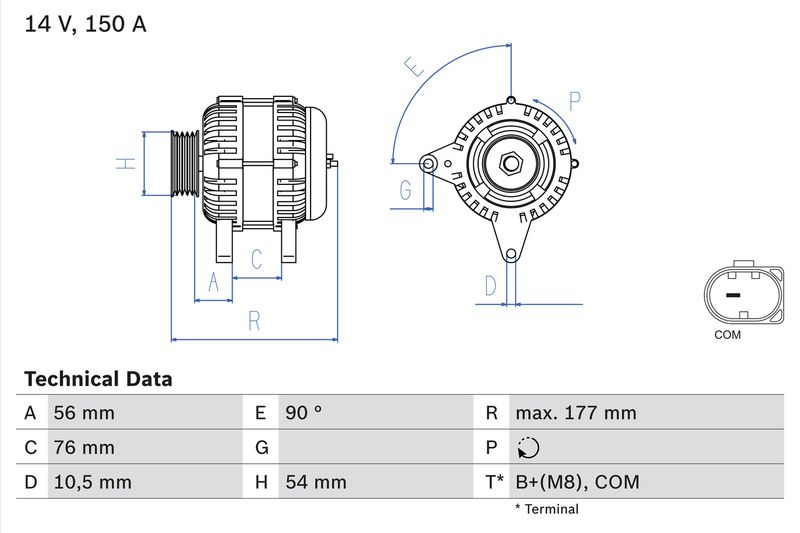

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 56
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 53.5
Length [mm] : 177
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year from : 09.2004
Engine Code : M47 D20 (204D4)
Construction Year to : 03.2007
  • Vendor BOSCH
  • SKU 0986080580
  • Barcode 4047024797963
  • BMW : 12 31 7 797 519 12 31 7 799 180 12 31 7 799 181 12 31 7 802 471 7 799 180 7 802 471
  • APEC : AAL1204
  • BORG & BECK : BBA2526
  • BOSCH : 1 986 A01 344
  • Carwood Group : BREF0320986080580
  • Carwood Group : BREF032114720
  • Carwood Group : BREF0321986A01344
  • DENSO : DAN1539
  • HELLA : 8EL 012 429-291
  • LUCAS : LRA02956
  • NAPA : NAL1204
  • VALEO : 437538
  • VALEO : 439545
  • WAI : 21338N
  • WAI : A131.955
  • BOSCH : 8058
