Bosch 0986080810 Alternator

SKU: 0986080810
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£278.47 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
KUGA I
Description Cylinder Capacity Horse Power Year
2.5 4x4 2522 CCM 200 HP 02/2008 - 11/2012
VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
2.4 i 2435 CCM 170 HP 10/2006 - 12/2012
T5 2521 CCM 220 HP 10/2006 - 12/2012
D5 2400 CCM 180 HP 10/2006 - 12/2012
T5 2521 CCM 230 HP 03/2007 - 12/2012
D5 2400 CCM 163 HP 10/2006 - 12/2012
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 06/2013
2.4 2435 CCM 140 HP 03/2006 - 10/2009
2.4 i 2435 CCM 170 HP 03/2006 - 10/2009
T5 2521 CCM 220 HP 03/2006 - 02/2007
D5 2400 CCM 180 HP 03/2006 - 06/2013
T5 2521 CCM 230 HP 03/2007 - 06/2013
2.4 D 2400 CCM 163 HP 03/2007 - 06/2013
S40 II (544)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
2.4 2435 CCM 140 HP 01/2004 - 12/2010
2.4 2435 CCM 170 HP 01/2004 - 12/2012
T5 2521 CCM 220 HP 01/2004 - 12/2007
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
D5 2400 CCM 179 HP 03/2006 - 12/2010
T5 2521 CCM 230 HP 03/2007 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
2.4 2435 CCM 140 HP 04/2004 - 12/2010
D5 2400 CCM 179 HP 04/2006 - 02/2008

The Bosch 0986080810 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Foot-mounted fastening type, excl. vacuum pump alternator type, and 341 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

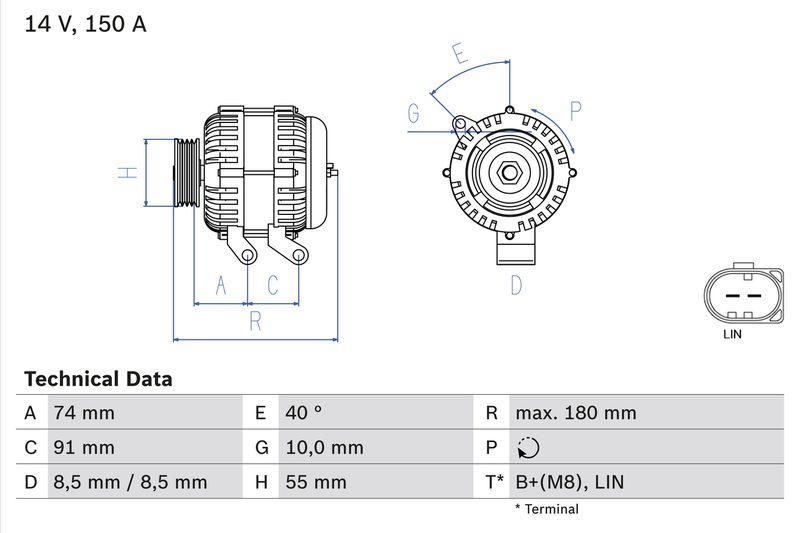

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Foot-mounted
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 73.5
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 55
Clamp : B+(M8)

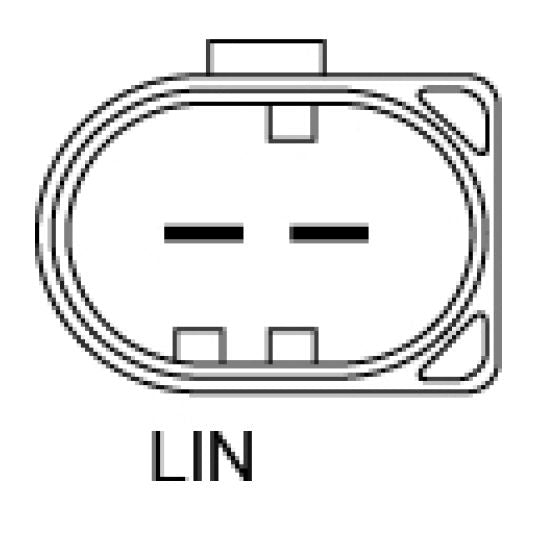

Plug Type ID : 341
Length [mm] : 180
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year to : 07.2010
Construction Year to : 12.2012
  • Vendor BOSCH
  • SKU 0986080810
  • Barcode 4047024837126
  • FORD : 1541451 6M5T10300SA
  • VOLVO : 30773111 36000207
  • APEC : AAL1135
  • BORG & BECK : BBA3011
  • Carwood Group : BREF0320986080810
  • Carwood Group : BREF032115606
  • HELLA : 8EL 011 712-221
  • LUCAS : LRA03098
  • NAPA : NAL1135
  • WAI : 11347N
  • WAI : A135.499
  • BOSCH : 8081
