Bosch 0986081000 Alternator
Your selected vehicle
Regular price
£232.05
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

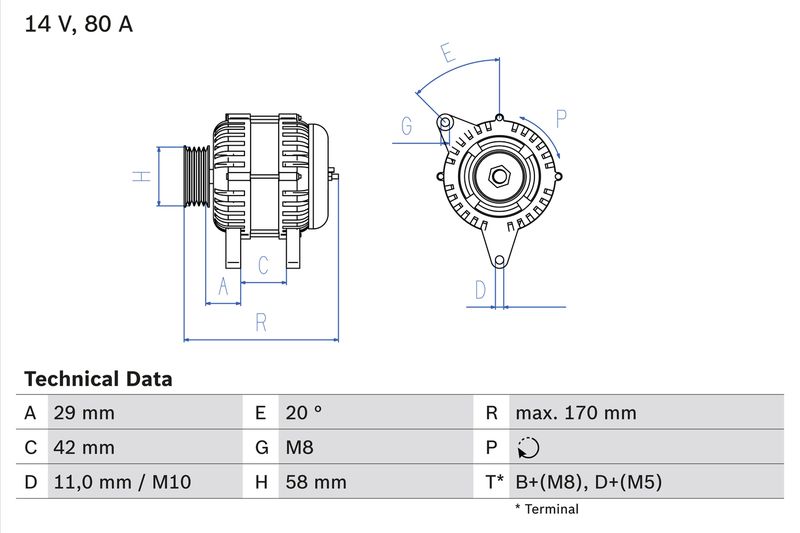

The Bosch 0986081000 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 170 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
80
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
29
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
57.5
Length [mm] :
170
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
CFB (1KR)
Construction Year from :
09.2010
- Vendor BOSCH
- SKU 0986081000
- CITROËN : 5702 J2 5702 L1 5705 KJ 5705 NP
- PEUGEOT : 5702 J2 5702 L1 5705 KJ 5705 NP
- TOYOTA : 270600Q020 270600Q021 270600Q100 270600Q130
- APEC : AAL1164
- BLUE PRINT : ADP151103
- BORG & BECK : BBA2514
- BOSCH : 1 986 A01 573
- Carwood Group : BREF0320986081000
- Carwood Group : BREF032114099
- Carwood Group : BREF0321986A01573
- DENSO : DAN1036
- HELLA : 8EL 012 240-651
- HELLA : 8EL 012 430-331
- LUCAS : LRA03010
- NAPA : NAL1164
- VALEO : 440446
- VALEO : 443269
- WAI : 23966N
- WAI : A131.230
- BOSCH : 8100
