BOSCH

Bosch 0986081190 Alternator

SKU: 0986081190
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£278.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
MONDEO IV (BA7)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 136 HP 03/2007 - 12/2014
2.0 TDCi 1997 CCM 130 HP 03/2007 - 01/2015
2.0 TDCi 1997 CCM 140 HP 03/2007 - 01/2015
MONDEO IV Turnier (BA7)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 136 HP 03/2007 - 12/2014
2.0 TDCi 1997 CCM 130 HP 03/2007 - 12/2012
2.0 TDCi 1997 CCM 140 HP 03/2007 - 01/2015
MONDEO IV Saloon (BA7)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 130 HP 03/2007 - 01/2015
2.0 TDCi 1997 CCM 140 HP 03/2007 - 01/2015
2.0 TDCi 1997 CCM 115 HP 11/2007 - 01/2015
MONDEO IV Van
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 140 HP 03/2007 - 09/2014

The Bosch 0986081190 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and 165 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

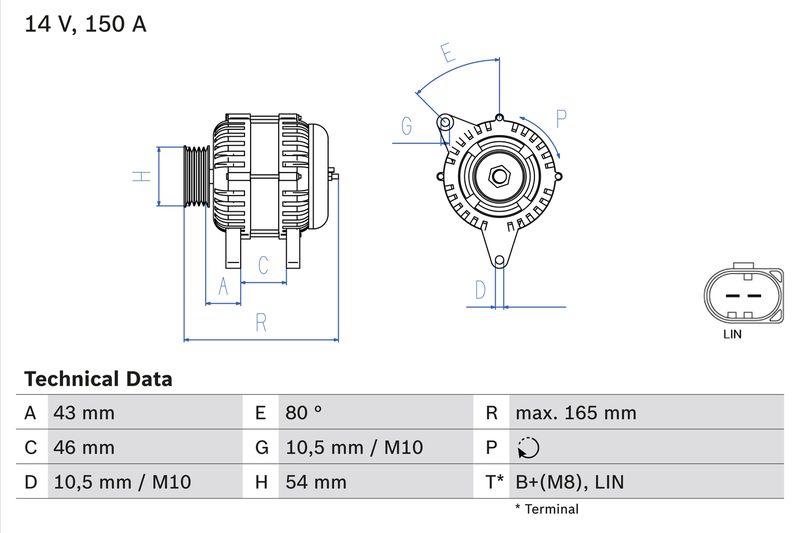

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 150
Fastening Type : Double Pivot Lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 43
Rotation Direction : Clockwise rotation
Pulleys : with freewheel belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 54.3
Length [mm] : 165
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : KLBA
Engine Code : LPBA
Construction Year to : 12.2014

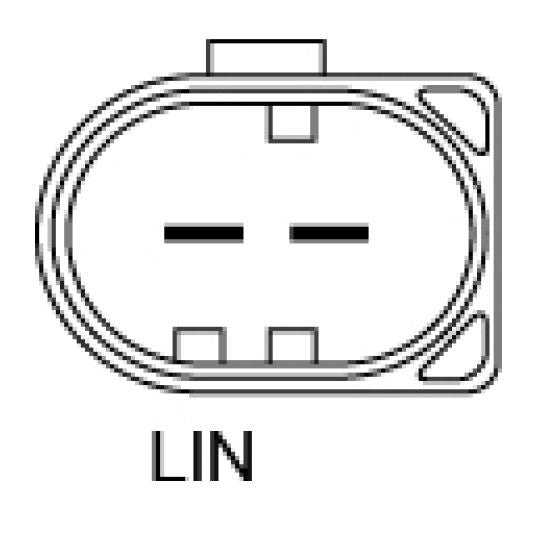

Connector/Clamp : Axial Connector
for OE number : 1458640
for OE number : 1791840
Construction Year to : 02.2010
Engine Code : QXBA
Engine Code : QXBB
  • Vendor BOSCH
  • SKU 0986081190
  • Barcode 4047024853089
  • FORD : 1458640 7G9N10300EA
  • VOLVO : 30795169 36000798
  • APEC : AAL1157
  • BORG & BECK : BBA3036
  • BOSCH : 1 986 A01 852
  • Carwood Group : BREF0320986081190
  • Carwood Group : BREF032115365
  • Carwood Group : BREF0321986A01852
  • HELLA : 8EL 011 712-111
  • LUCAS : LRA03277
  • NAPA : NAL1157
  • VALEO : 440477
  • WAI : 20013N
  • WAI : A134.500
  • BOSCH : 8119
