BOSCH

Bosch 0986081700 Alternator

SKU: 0986081700
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£213.33 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 122 HP 02/2007 - 09/2010
1.8 1798 CCM 125 HP 02/2007 - 09/2010
1.8 Flexifuel 1798 CCM 125 HP 02/2007 - 09/2010
2.0 1999 CCM 145 HP 02/2007 - 09/2010
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 10/2003 - 03/2007
2.0 1999 CCM 145 HP 03/2004 - 03/2007
1.8 1798 CCM 125 HP 04/2004 - 03/2007
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 03/2007
1.8 1798 CCM 122 HP 09/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.0 LPG 1999 CCM 145 HP 06/2008 - 07/2011
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 04/2005 - 07/2011
1.8 Flexifuel 1798 CCM 125 HP 06/2006 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 145 HP 10/2006 - 09/2010

The Bosch 0986081700 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Direct fastening fastening type, excl. vacuum pump alternator type, and 179 mm length. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

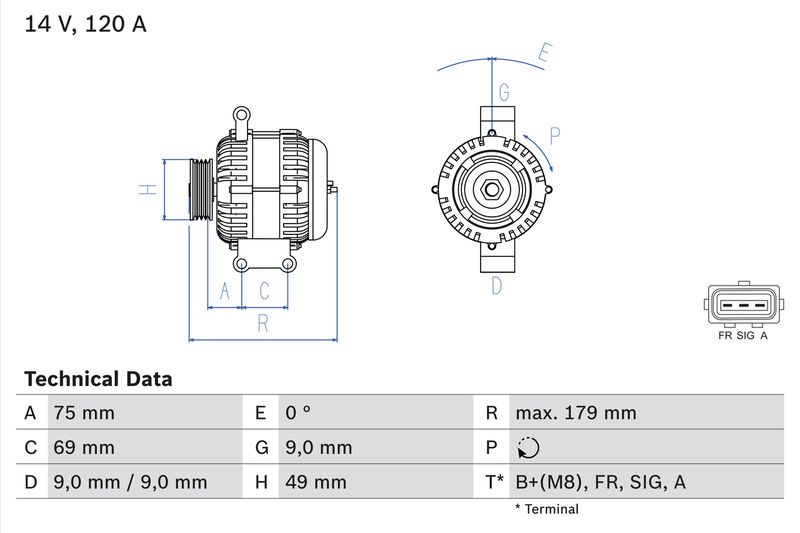

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 120
Fastening Type : Direct fastening
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 74.5
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 6
Belt Pulley Ø [mm] : 49
Length [mm] : 179
Recommended additional repairs : V-Belt/V-ribbed Belt
Construction Year from : 03.2007
Construction Year to : 07.2010
  • Vendor BOSCH
  • SKU 0986081700
  • Barcode 4047025266611
  • FORD : 1322879 1530298 3M5T10300LA 3M5T10300LB 3M5T10300LC 3M5T10300LD
  • VOLVO : 30667069 8666581
  • APEC : AAL1697
  • BORG & BECK : BBA2547
  • BOSCH : 1 986 A01 349
  • Carwood Group : BREF0320986081700
  • Carwood Group : BREF032114065
  • Carwood Group : BREF0321986A01349
  • DENSO : DAN1023
  • FEBI BILSTEIN : 192951
  • HELLA : 8EL 011 712-201
  • LUCAS : LRA03047
  • NAPA : NAL1697
  • VALEO : 440424
  • VALEO : 443199
  • WAI : 24046N
  • WAI : A134.476
  • User manual
  • BOSCH : 81 70
