Bosch 0986081930 Alternator
Your selected vehicle
Regular price
£331.94
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

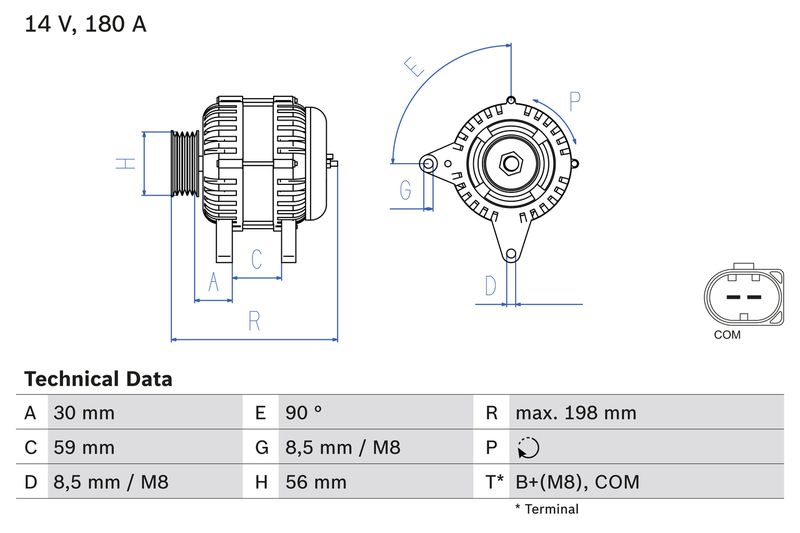

The Bosch 0986081930 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL86 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
180
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
30
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
56
Clamp :
B1+(M8),COM

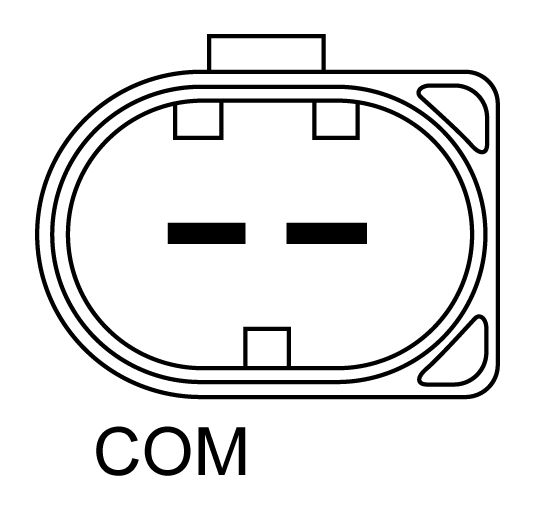

Plug Type ID :
PL86
Length [mm] :
198
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
CCLA
Construction Year from :
11.2009
Construction Year to :
04.2011
Engine Code :
CAND
Construction Year from :
11.2008
- Vendor BOSCH
- SKU 0986081930
- BOSCH : 0 121 715 176
- BOSCH : 1 986 A00 768
- Carwood Group : BREF0320986081930
- Carwood Group : BREF032115910
- Carwood Group : BREF0321986A00768
- LUCAS : LRA03286
- VALEO : 443306
- VALEO : 444215
- WAI : 20138N
- BOSCH : 8193
