Bosch 0986081950 Alternator - 1
Bosch 0986081950 Alternator - 2
Bosch 0986081950 Alternator - 1
Bosch 0986081950 Alternator - 2
BOSCH

Bosch 0986081950 Alternator

SKU: 0986081950
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£197.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
SWIFT III (MZ, EZ)
Description Cylinder Capacity Horse Power Year
1.5 (RS415, ZC21S) 1490 CCM 102 HP From 02/2005
1.3 (RS413, ZC11S) 1328 CCM 92 HP From 02/2005
1.3 (RS413, ZC11S) 1328 CCM 91 HP 02/2005 - 06/2015
WAGON R+ (MA)
Description Cylinder Capacity Horse Power Year
1.3 (RB413) 1328 CCM 94 HP 09/2003 - 08/2006
1.3 4WD (RB413) 1328 CCM 94 HP From 09/2003
WAGON R (MH21, MH22)
Description Cylinder Capacity Horse Power Year
1.3 (RB413) 1328 CCM 88 HP 09/2003 - 12/2010

The Bosch 0986081950 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Single pivoted lever fastening type, excl. vacuum pump alternator type, and PL58 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

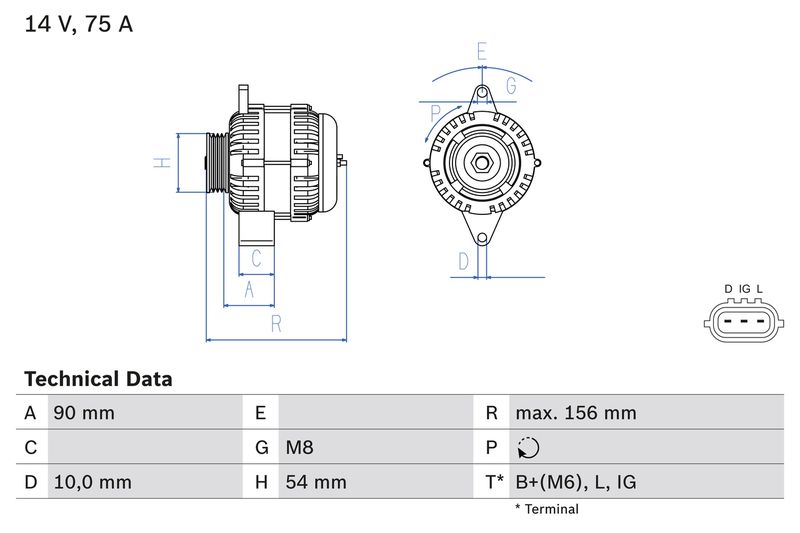

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 75
Fastening Type : Single pivoted lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 90
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 4
Belt Pulley Ø [mm] : 54

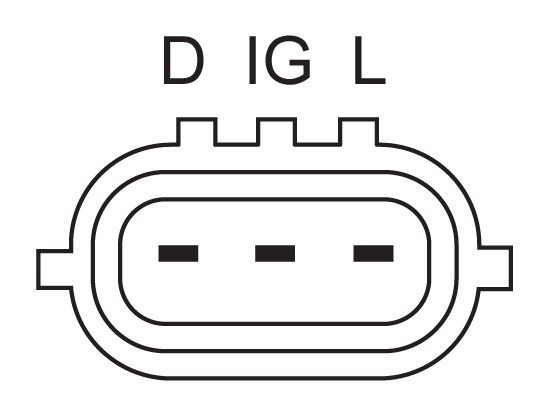

Clamp : B+(M6),L,IG
Plug Type ID : PL58
Length [mm] : 156
Recommended additional repairs : V-Belt/V-ribbed Belt
Engine Code : M13A
Construction Year to : 12.2014
Vehicle Identification Number (VIN) to : TSM...00500000
Construction Year to : 12.2012
  • Vendor BOSCH
  • SKU 0986081950
  • Barcode 4047025171083
  • SUZUKI : 31400-84E00 31400-84E01
  • APEC : AAL1712
  • APEC : AAL2059
  • BORG & BECK : BBA3014
  • BOSCH : 1 986 A01 486
  • Carwood Group : BREF0320986081950
  • Carwood Group : BREF032114245
  • Carwood Group : BREF0321986A01486
  • FEBI BILSTEIN : 193199
  • HELLA : 8EL 015 630-591
  • LUCAS : LRA02954
  • NAPA : NAL1712
  • NAPA : NAL2059
  • WAI : 23954N
  • WAI : A130.700
  • BOSCH : 8195
