Bosch 0986082380 Alternator
Your selected vehicle
Regular price
£230.49
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986082380 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL75 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
120
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
55
Rotation Direction :
Clockwise rotation
Pulleys :
with freewheel belt pulley
Number of grooves :
5
Belt Pulley Ø [mm] :
54
Clamp :
B2+(M8),L,DFM

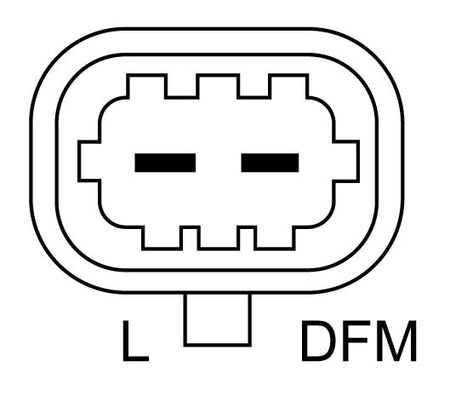

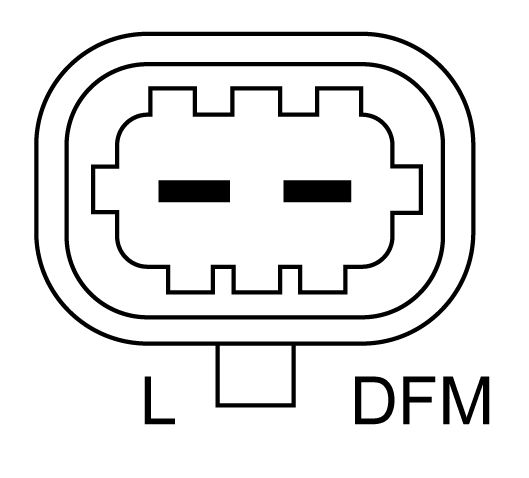

Plug Type ID :
PL75
Length [mm] :
185
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
A 14 XER
Vehicle Identification Number (VIN) from :
C4000001
Engine Code :
B 14 XER
Construction Year from :
09.2013
- Vendor BOSCH
- SKU 0986082380
- APEC : AAL1724
- BOSCH : 0 124 425 087
- BOSCH : 1 986 A00 829
- Carwood Group : BREF0320986082380
- Carwood Group : BREF0321986A00829
- LUCAS : LRA03604
- NAPA : NAL1724
- WAI : 24144N
- WAI : A130.379
- BOSCH : 8238
