Bosch 0986082740 Alternator
Your selected vehicle
Regular price
£219.43
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

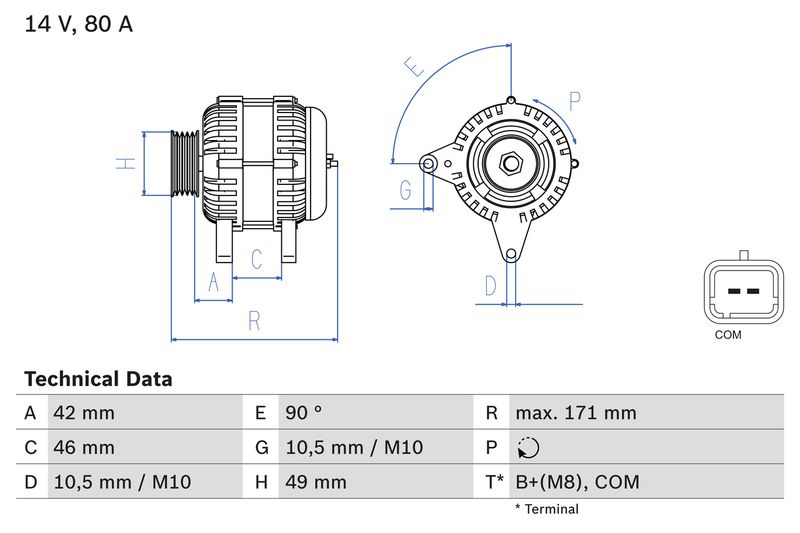

The Bosch 0986082740 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL129 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
80
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Distance from belt pulley to alternator [mm] :
42
Rotation Direction :
Clockwise rotation
Pulleys :
with multi-belt pulley
Number of grooves :
6
Belt Pulley Ø [mm] :
49
Clamp :
B+(M8),COM

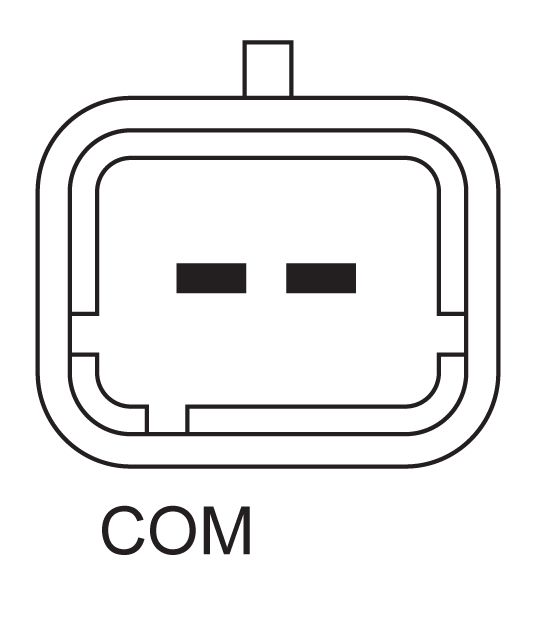

Plug Type ID :
PL129
Length [mm] :
171
Recommended additional repairs :
V-Belt/V-ribbed Belt
Engine Code :
HFX (TU1JP)
Construction Year from :
03.2005
Construction Year to :
12.2009
for RPO number from :
10382
- Vendor BOSCH
- SKU 0986082740
- CITROËN : 5705 CW
- PEUGEOT : 5705 CW 96 519 274 80 96 600 550 80 96 660 302 80
- BORG & BECK : BBA3060
- BOSCH : 1 986 A01 642
- Carwood Group : BREF0320986082740
- Carwood Group : BREF032114707
- FEBI BILSTEIN : 193297
- HELLA : 8EL 015 630-051
- LUCAS : LRA03252
- VALEO : 439693
- VALEO : 440289
- VALEO : 443282
- WAI : 20574N
- WAI : A131.969
- BOSCH : 8274
