BOSCH

Bosch 0986082900 Alternator

SKU: 0986082900
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£205.90 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
IGNIS I (FH)
Description Cylinder Capacity Horse Power Year
1.3 (HV51, HX51, RG413) 1328 CCM 83 HP 10/2000 - 09/2003
1.3 4WD (RG413) 1328 CCM 83 HP 10/2000 - 09/2003
1.5 Sport (RG415) 1490 CCM 109 HP 12/2003 - 12/2005
JIMNY Open Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 (SN413) 1328 CCM 86 HP From 08/2004
1.3 4WD (SN413) 1328 CCM 86 HP From 03/2013
JIMNY Closed Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 16V (SN413) 1328 CCM 82 HP From 02/2001
1.3 16V 4WD (SN413, JB43) 1328 CCM 82 HP From 02/2001
1.3 16V 4x4 (SN413, JB43) 1328 CCM 86 HP From 08/2005
1.3 (SN413) 1328 CCM 86 HP From 08/2004
1.3 4WD (SN413) 1328 CCM 85 HP From 05/2014
LIANA Hatchback
Description Cylinder Capacity Horse Power Year
1.3 1328 CCM 90 HP 07/2001 - 12/2007
1.6 (RH416) 1586 CCM 103 HP 07/2001 - 12/2007
1.6 4WD 1586 CCM 103 HP 07/2001 - 12/2007
1.6 i (RH416) 1586 CCM 106 HP 04/2002 - 12/2007
1.6 4WD 1586 CCM 106 HP 04/2002 - 12/2007
1.6 4WD 1586 CCM 107 HP 01/2005 - 12/2007
1.6 1586 CCM 107 HP 01/2005 - 08/2007
LIANA (ER, RH_)
Description Cylinder Capacity Horse Power Year
1.3 (RH 413) 1328 CCM 90 HP From 03/2002
1.6 (RH416) 1586 CCM 103 HP From 03/2002
1.6 4WD (RH416) 1586 CCM 103 HP From 03/2002
1.6 i (RH416) 1586 CCM 106 HP From 04/2002
1.6 4WD (RH416) 1586 CCM 106 HP From 04/2002
1.6 (RH416) 1586 CCM 107 HP From 01/2005
1.6 4WD (RH416) 1586 CCM 107 HP 01/2005 - 12/2007
SWIFT III (MZ, EZ)
Description Cylinder Capacity Horse Power Year
1.3 (RS413, ZC11S) 1328 CCM 92 HP From 02/2005
1.3 4x4 (RS413, ZD11S) 1328 CCM 90 HP From 01/2006
1.3 4x4 (RS 413, ZD11S) 1328 CCM 92 HP From 02/2005
1.3 (RS413, ZC11S) 1328 CCM 91 HP 02/2005 - 06/2015

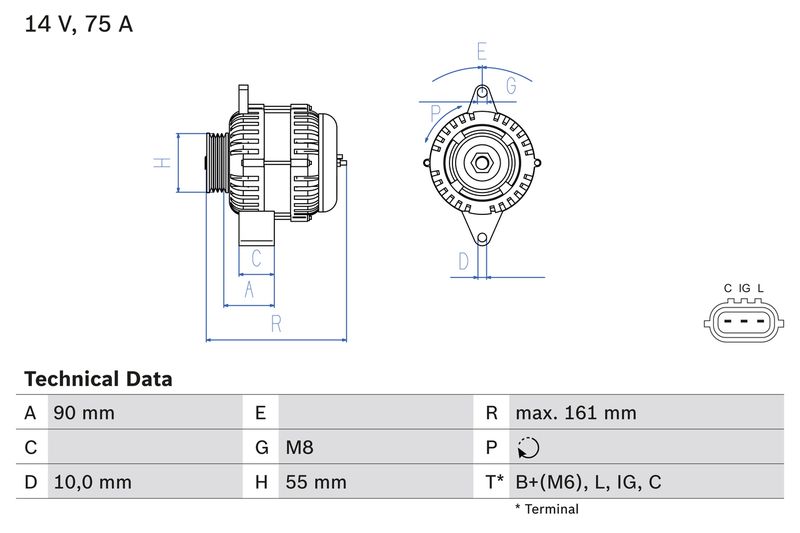

The Bosch 0986082900 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Single pivoted lever fastening type, excl. vacuum pump alternator type, and PL95 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 75
Fastening Type : Single pivoted lever
Alternator Type : excl. vacuum pump
Distance from belt pulley to alternator [mm] : 90
Rotation Direction : Clockwise rotation
Pulleys : with multi-belt pulley
Number of grooves : 4
Belt Pulley Ø [mm] : 55
Clamp : B+(M6),L,IG,C

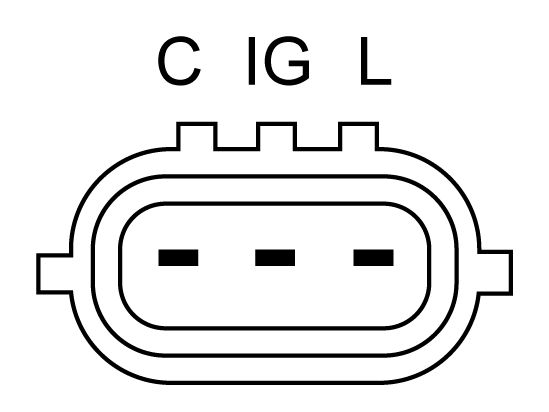

Plug Type ID : PL95
Length [mm] : 161
Recommended additional repairs : V-Belt/V-ribbed Belt
  • Vendor BOSCH
  • SKU 0986082900
  • Barcode 4047025498654
  • SUZUKI : 31400 80G10 AT0 31400-80G01 31400-80G10
  • BORG & BECK : BBA2805
  • BOSCH : 1 986 A01 263
  • Carwood Group : BREF0320986082900
  • Carwood Group : BREF032114215
  • Carwood Group : BREF0321986A01263
  • HELLA : 8EL 011 711-341
  • LUCAS : LRA02270
  • VALEO : 443074
  • WAI : 23270N
  • WAI : A130.995
  • BOSCH : 8290
