Bosch 0986083080 Alternator
Your selected vehicle
Regular price
£229.64
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986083080 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, Double Pivot Lever fastening type, excl. vacuum pump alternator type, and PL57 plug type id. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

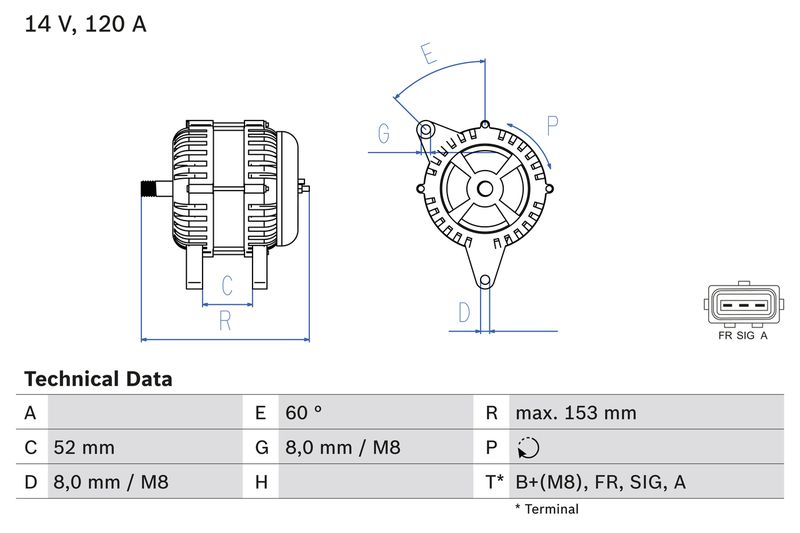

Function :
Alternator
Voltage [V] :
14
Alternator Charging Current [A] :
120
Fastening Type :
Double Pivot Lever
Alternator Type :
excl. vacuum pump
Rotation Direction :
Clockwise rotation
Pulleys :
without belt pulley
Clamp :
B+(M8),FR,SIG,A

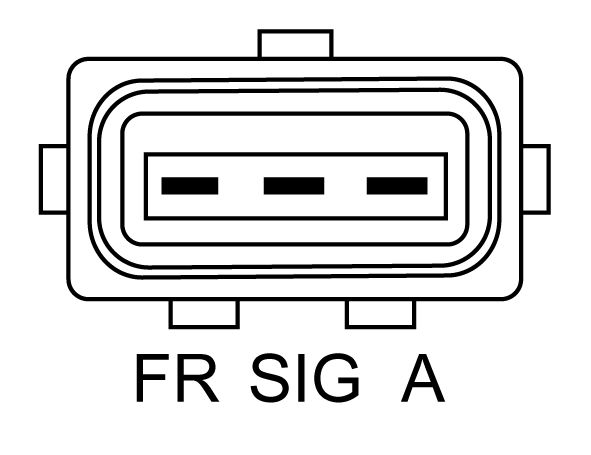

Plug Type ID :
PL57
Length [mm] :
153
Recommended additional repairs :
V-Belt/V-ribbed Belt
- Vendor BOSCH
- SKU 0986083080
- FORD : 1302007 4M5T10300KA 4M5T10300KB
- APEC : AAL1769
- BORG & BECK : BBA2538
- Carwood Group : BREF032114250
- HELLA : 8EL 012 426-451
- LUCAS : LRA02912
- WAI : 23912N
- User manual
- BOSCH : 8308
